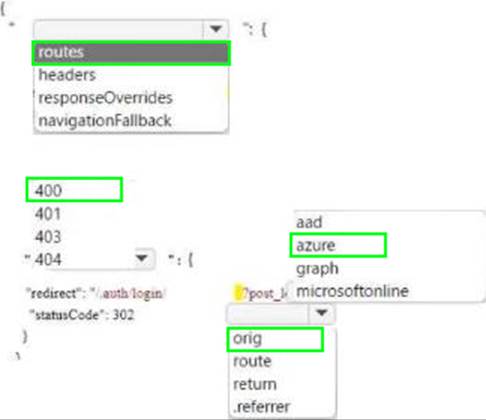

HOTSPOT

You are developing an Azure Static Web app that contains training materials for a tool company. Each tool’s training material is contained In a static web page that Is linked from the tool’s publicly available description page.

A user must be authenticated using Azure AD prior to viewing training.

You need to ensure That the user can view training material pages after authentication.

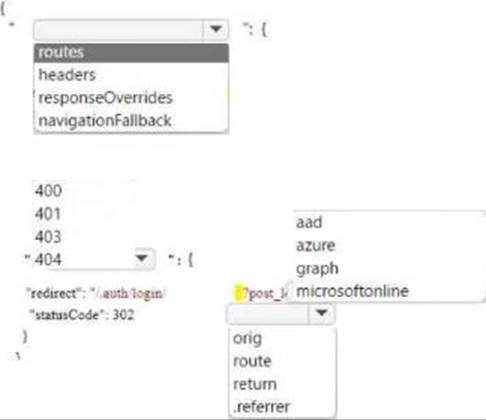

How should you complete the configuration file? To answer, select the appropriate options In the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

HOTSPOT

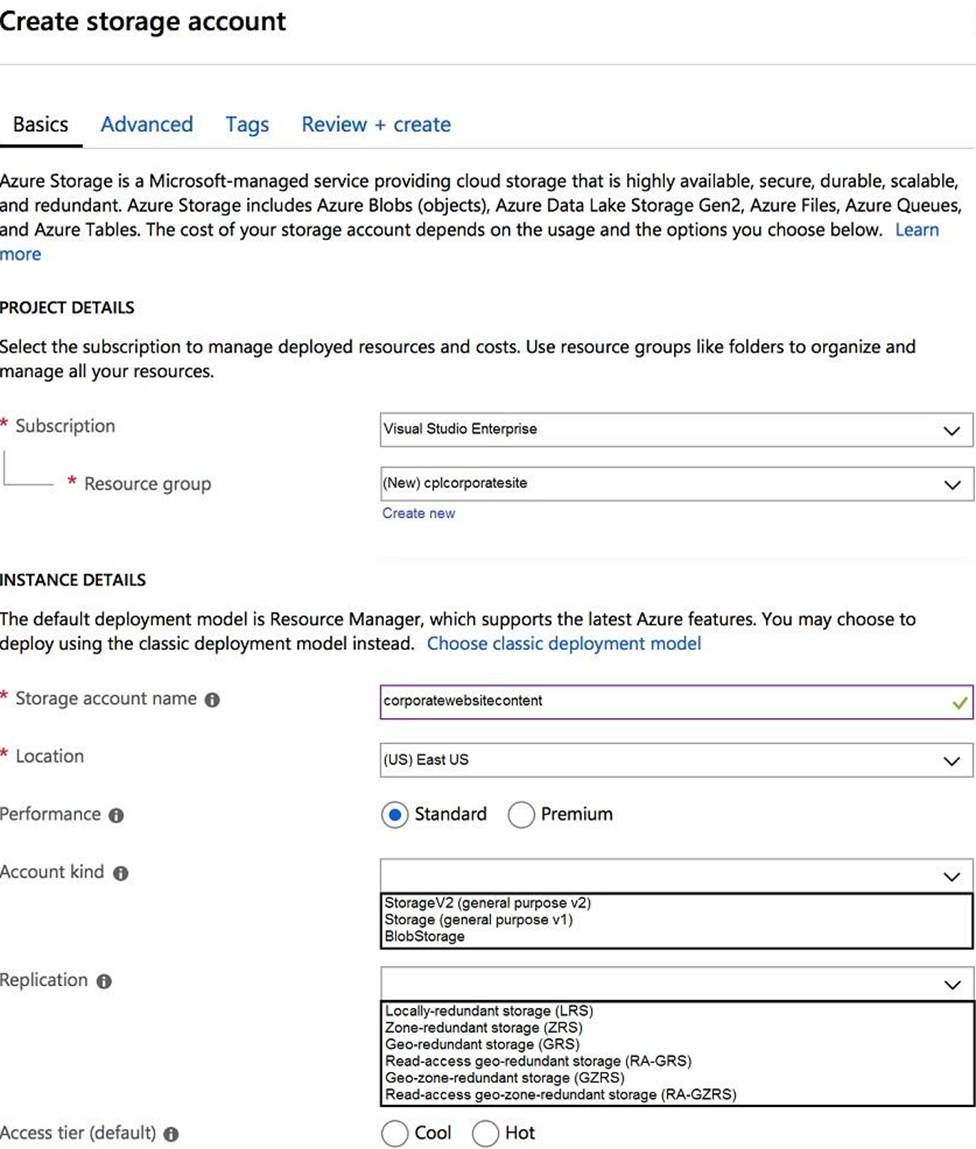

You need to configure the Account Kind, Replication, and Storage tier options for the corporate website’s Azure Storage account.

How should you complete the configuration? To answer, select the appropriate options in the dialog box in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

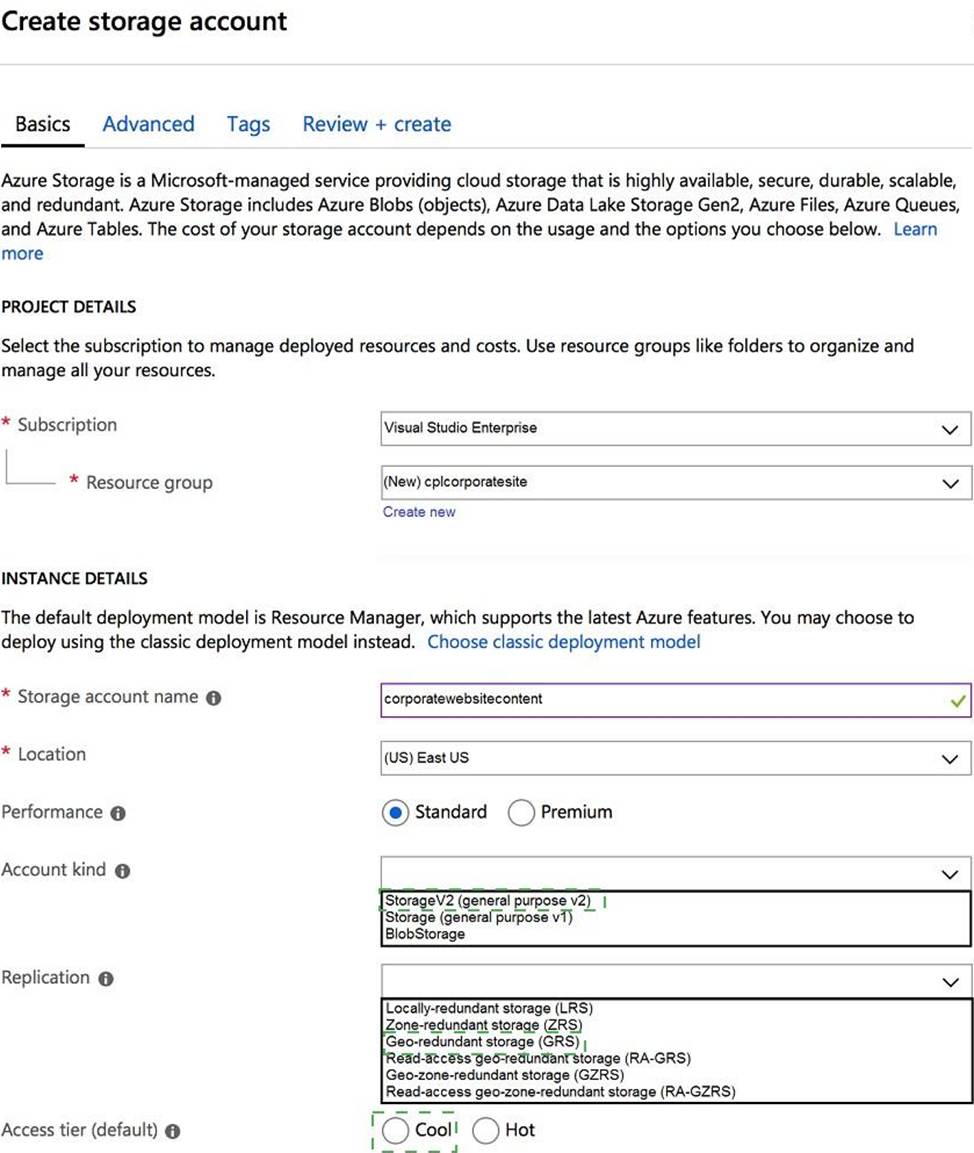

Correct Answer:

Explanation:

Account Kind: StorageV2 (general-purpose v2)

Scenario: Azure Storage blob will be used (refer to the exhibit). Data storage costs must be minimized.

General-purpose v2 accounts: Basic storage account type for blobs, files, queues, and tables.

Recommended for most scenarios using Azure Storage.

Incorrect Answers:

BlockBlobStorage accounts: Storage accounts with premium performance characteristics for block blobs and append blobs. Recommended for scenarios with high transactions rates, or scenarios that use smaller objects or require consistently low storage latency.

General-purpose v1 accounts: Legacy account type for blobs, files, queues, and tables. Use general-purpose v2 accounts instead when possible.

Replication: Geo-redundant Storage

Scenario: Data must be replicated to a secondary region and three availability zones.

Geo-redundant storage (GRS) copies your data synchronously three times within a single physical location in the primary region using LRS. It then copies your data asynchronously to a single physical location in the secondary region.

Incorrect Answers:

Geo-zone-redundant storage (GZRS), but it would be more costly.

Storage tier: Cool

Data storage costs must be minimized.

Note: Azure storage offers different access tiers, which allow you to store blob object data in the most cost-effective manner. The available access tiers include:

Hot – Optimized for storing data that is accessed frequently.

Cool – Optimized for storing data that is infrequently accessed and stored for at least 30 days.

Reference:

https://docs.microsoft.com/en-us/azure/storage/common/storage-account-overview

https://docs.microsoft.com/en-us/azure/storage/common/storage-redundancy

https://docs.microsoft.com/en-us/azure/storage/blobs/storage-blob-storage-tiers?tabs=azure-portal

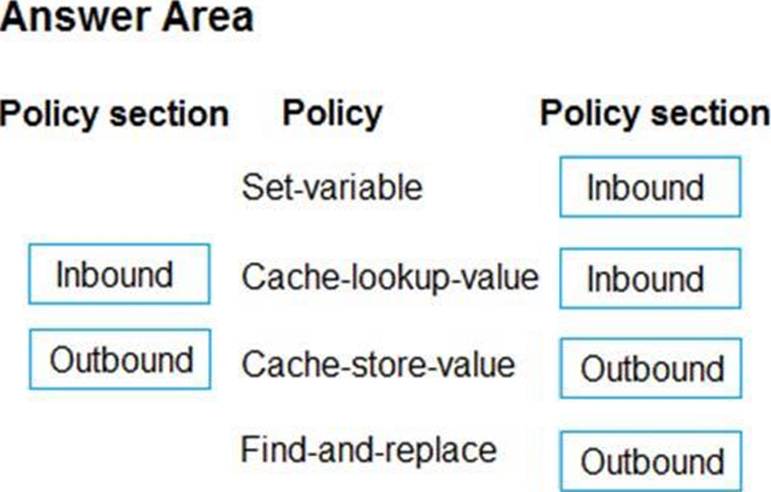

DRAG DROP

Contoso, Ltd. provides an API to customers by using Azure API Management (APIM). The API authorizes users with a JWT token.

You must implement response caching for the APIM gateway. The caching mechanism must detect the user ID of the client that accesses data for a given location and cache the response for that user ID.

You need to add the following policies to the policies file:

• a set-variable policy to store the detected user identity

• a cache-lookup-value policy

• a cache-store-value policy

• a find-and-replace policy to update the response body with the user profile information

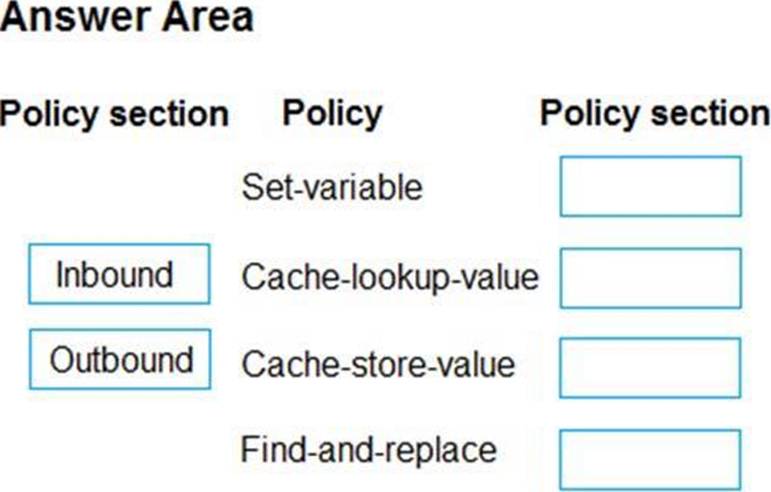

To which policy section should you add the policies? To answer, drag the appropriate sections to the correct policies. Each section may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Box 1: Inbound.

A set-variable policy to store the detected user identity.

Example:

<policies>

<inbound>

<!– How you determine user identity is application dependent –>

<set-variable

name="enduserid"

value="@(context.Request.Headers.GetValueOrDefault("Authorization","").Split(‘ ‘)[1].AsJwt()?.Subject)" />

Box 2: Inbound

A cache-lookup-value policy

Example:

<inbound>

<base />

<cache-lookup vary-by-developer="true | false" vary-by-developer-groups="true | false" downstream-caching-type="none | private | public" must-revalidate="true | false">

<vary-by-query-parameter>parameter name</vary-by-query-parameter> <!– optional, can repeated several times –>

</cache-lookup>

</inbound>

Box 3: Outbound

A cache-store-value policy.

Example:

<outbound>

<base />

<cache-store duration="3600" />

</outbound>

Box 4: Outbound

A find-and-replace policy to update the response body with the user profile information.

Example:

<outbound>

<!– Update response body with user profile–>

<find-and-replace

from=’"$userprofile$"’

to="@((string)context.Variables["userprofile"])" />

<base />

</outbound>

Reference:

https://docs.microsoft.com/en-us/azure/api-management/api-management-caching-policies

https://docs.microsoft.com/en-us/azure/api-management/api-management-sample-cache-by-key

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You develop a software as a service (SaaS) offering to manage photographs. Users upload photos to a web service which then stores the photos in Azure Storage Blob storage. The storage account type is General-purpose V2.

When photos are uploaded, they must be processed to produce and save a mobile-friendly version of the image. The process to produce a mobile-friendly version of the image must start in less than one minute.

You need to design the process that starts the photo processing.

Solution: Trigger the photo processing from Blob storage events.

Does the solution meet the goal?

Reveal Solution Hide Solution

Topic 6, Coho Winery

Case study

Overview

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study

To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. When you are ready to answer a question, click the Question button to return to the question.

LabelMaker app

Coho Winery produces, bottles, and distributes a variety of wines globally. You are a developer implementing highly scalable and resilient applications to support online order processing by using Azure solutions.

Coho Winery has a LabelMaker application that prints labels for wine bottles. The application sends data to several printers. The application consists of five modules that run independently on virtual machines (VMs). Coho Winery plans to move the application to Azure and continue to support label creation.

External partners send data to the LabelMaker application to include artwork and text for custom label designs.

Requirements. Data

You identify the following requirements for data management and manipulation:

✑ Order data is stored as nonrelational JSON and must be queried using SQL.

✑ Changes to the Order data must reflect immediately across all partitions. All reads to the Order data must fetch the most recent writes.

Requirements. Security

You have the following security requirements:

✑ Users of Coho Winery applications must be able to provide access to documents, resources, and applications to external partners.

✑ External partners must use their own credentials and authenticate with their organization’s identity management solution.

✑ External partner logins must be audited monthly for application use by a user account administrator to maintain company compliance.

✑ Storage of e-commerce application settings must be maintained in Azure Key Vault.

✑ E-commerce application sign-ins must be secured by using Azure App Service authentication and Azure Active Directory (AAD).

✑ Conditional access policies must be applied at the application level to protect company content.

✑ The LabelMaker application must be secured by using an AAD account that has full access to all namespaces of the Azure Kubernetes Service (AKS) cluster.

Requirements. LabelMaker app

Azure Monitor Container Health must be used to monitor the performance of workloads that are deployed to Kubernetes environments and hosted on Azure Kubernetes Service (AKS).

You must use Azure Container Registry to publish images that support the AKS deployment.

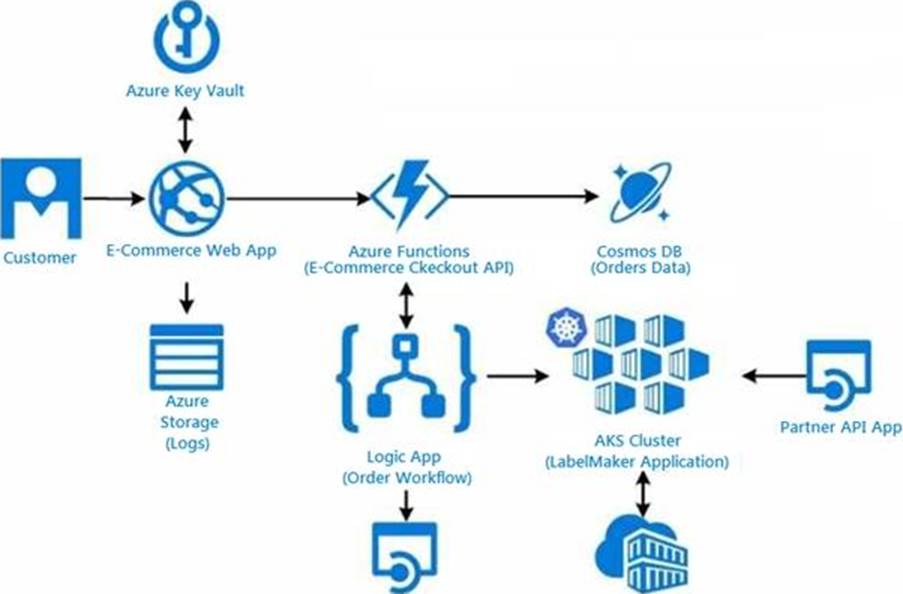

Architecture

Issues

Calls to the Printer API App fail periodically due to printer communication timeouts.

Printer communication timeouts occur after 10 seconds. The label printer must only receive up to 5 attempts within one minute.

The order workflow fails to run upon initial deployment to Azure.

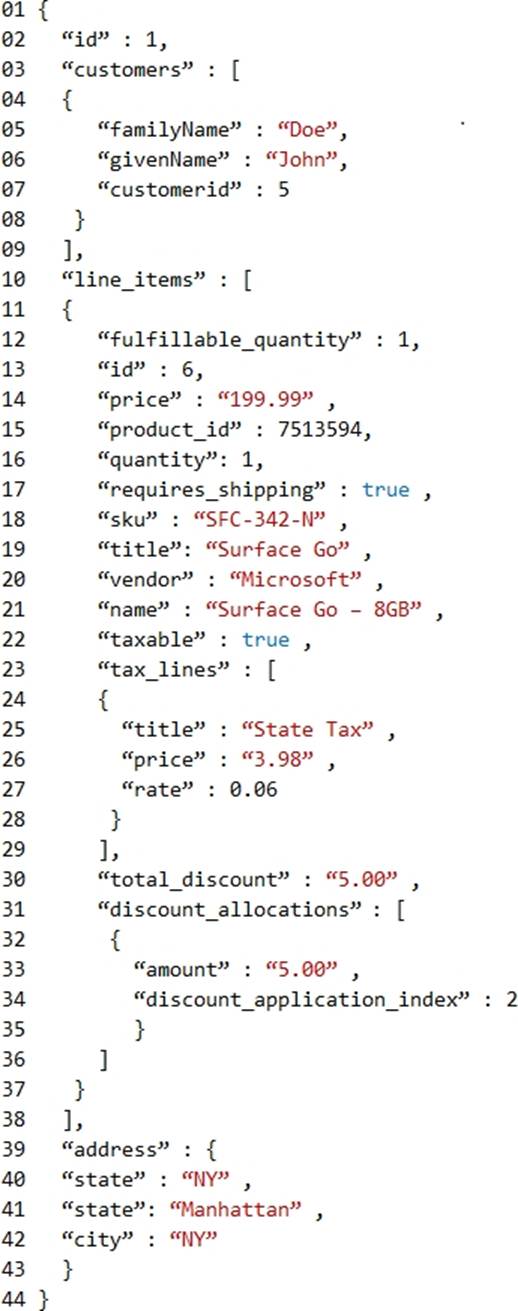

Order.json

Relevant portions of the app files are shown below. Line numbers are included for reference only.

This JSON file contains a representation of the data for an order that includes a single item.

Order.json

DRAG DROP

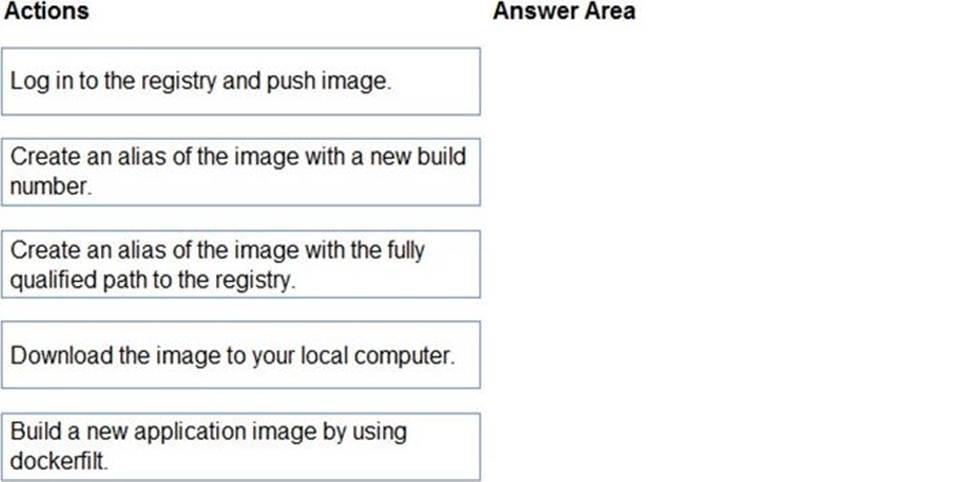

You need to deploy a new version of the LabelMaker application to ACR.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

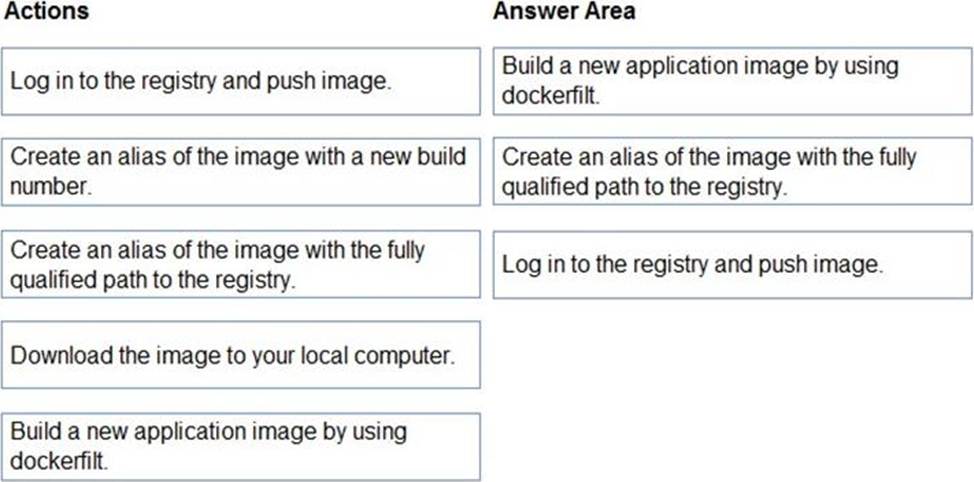

Correct Answer:

Explanation:

Step 1: Build a new application image by using dockerfile

Step 2: Create an alias if the image with the fully qualified path to the registry

Before you can push the image to a private registry, you’ve to ensure a proper image name. This can be achieved using the docker tag command. For demonstration purpose, we’ll use Docker’s hello world image, rename it and push it to ACR.

# pulls hello-world from the public docker hub $ docker pull hello-world

# tag the image in order to be able to push it to a private registry $ docker tag hello-word <REGISTRY_NAME>/hello-world

# push the image

$ docker push <REGISTRY_NAME>/hello-world

Step 3: Log in to the registry and push image

In order to push images to the newly created ACR instance, you need to login to ACR form the Docker CLI. Once logged in, you can push any existing docker image to your ACR instance.

Scenario:

Coho Winery plans to move the application to Azure and continue to support label creation.

LabelMaker app

Azure Monitor Container Health must be used to monitor the performance of workloads that are deployed to Kubernetes environments and hosted on Azure Kubernetes Service (AKS).

You must use Azure Container Registry to publish images that support the AKS deployment.

Reference:

https://thorsten-hans.com/how-to-use-a-private-azure-container-registry-with-kubernetes-9b86e67b93b6

https://docs.microsoft.com/en-us/azure/container-registry/container-registry-tutorial-quick-task

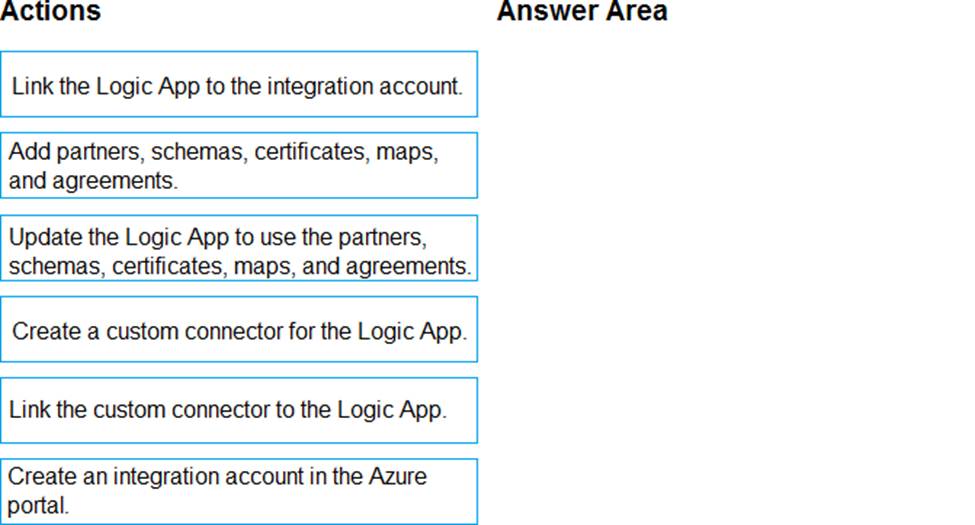

DRAG DROP

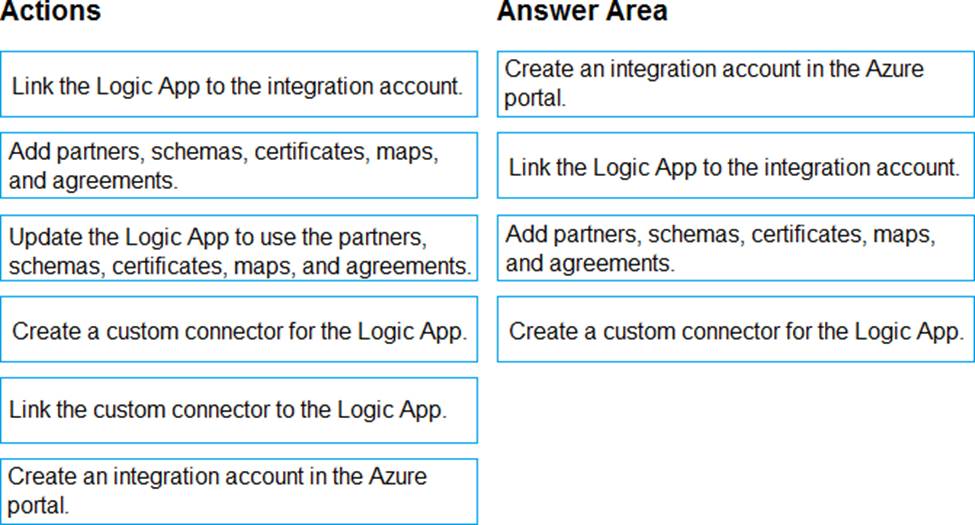

You need to support the message processing for the ocean transport workflow.

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Step 1: Create an integration account in the Azure portal

You can define custom metadata for artifacts in integration accounts and get that metadata during runtime for your logic app to use. For example, you can provide metadata for artifacts, such as partners, agreements, schemas, and maps – all store metadata using key-value pairs.

Step 2: Link the Logic App to the integration account

A logic app that’s linked to the integration account and artifact metadata you want to use.

Step 3: Add partners, schemas, certificates, maps, and agreements

Step 4: Create a custom connector for the Logic App.

Reference: https://docs.microsoft.com/bs-latn-ba/azure/logic-apps/logic-apps-enterprise-integration-metadata

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You are developing an Azure solution to collect point-of-sale fPOS) device data from 2,000 stores located throughout the world. A single device can produce 2 megabytes (MB) of data every 24 hours. Each store location has one to five devices that send data.

You must store the device data in Azure Blob storage. Device data must be correlated based on a device identifier. Additional stores are expected to open in the future.

You need to implement a solution to receive the device data.

Solution: Provision an Azure Event Hub.

Configure the machine identifier as the partition key and enable capture.

Reveal Solution Hide Solution

You are designing a web application to manage user satisfaction surveys. The number of questions that a survey includes is variable.

Application users must be able to display results for a survey as quickly as possible. Users must also be able to quickly compute statistical measures including average values across various groupings of answers.

Which Azure Cosmos 06 API should you use for the application?

Reveal Solution Hide Solution

You develop a solution that uses an Azure SQL Database to store user information for a mobile app.

The app stores sensitive information about users.

You need to hide sensitive information from developers that query the data for the mobile app.

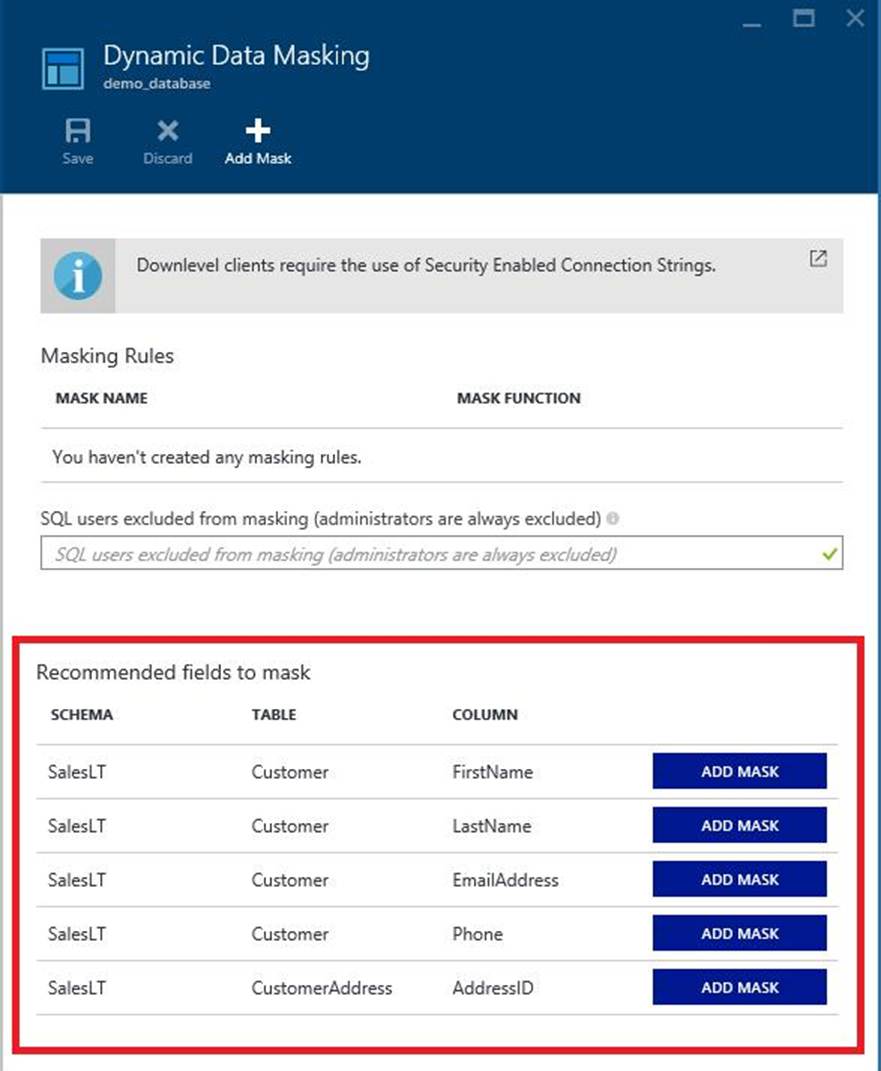

Which three items must you identify when configuring dynamic data masking? Each correct answer presents a part of the solution. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

An organization deploys Azure Cosmos DB.

You need to ensure that the index is updated as items are created, updated, or deleted.

What should you do?

Reveal Solution Hide Solution
