Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear on the review screen.

You have an Azure App Service web app named WebApp1 and an Azure Functions app named Function 1. WebApp1 is associated with an Application Insights instance named appinsights1.

You configure a web test and a corresponding alert for WebApp1 in appinsights1. Each alert triggers a delivery of email to your mailbox.

You need to ensure that each alert also triggers execution of Function1.

Solution: Configure an Application Insights funnel.

Does the solution meet the goal?

Reveal Solution Hide Solution

DRAG DROP

You are developing an application to retrieve user profile information. The application will use the Microsoft Graph SDK.

The app must retrieve user profile information by using a Microsoft Graph API call.

You need to call the Microsoft Graph API from the application.

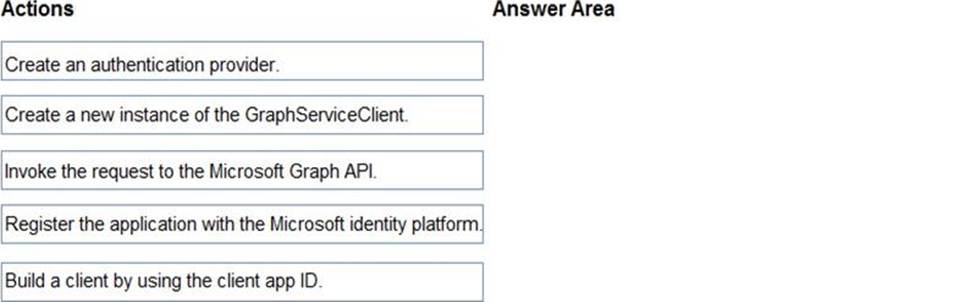

In which order should you perform the actions? To answer, move all actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

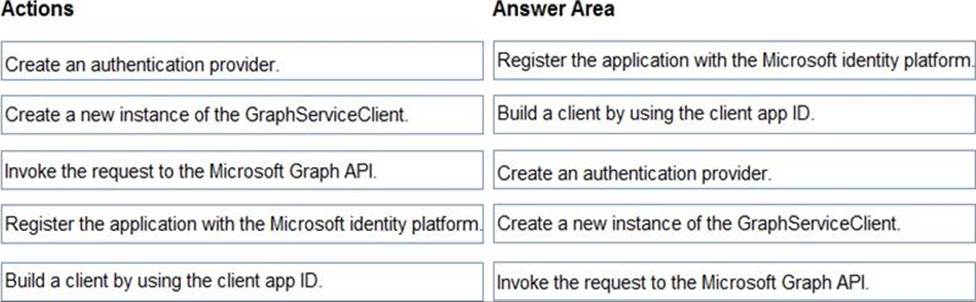

Correct Answer:

Explanation:

Step 1: Register the application with the Microsoft identity platform.

To authenticate with the Microsoft identity platform endpoint, you must first register your app at the Azure app registration portal

Step 2: Build a client by using the client app ID

Step 3: Create an authentication provider

Create an authentication provider by passing in a client application and graph scopes.

Code example:

DeviceCodeProvider authProvider = new DeviceCodeProvider(publicClientApplication, graphScopes);

// Create a new instance of GraphServiceClient with the authentication provider. GraphServiceClient graphClient = new GraphServiceClient(authProvider);

Step 4: Create a new instance of the GraphServiceClient

Step 5: Invoke the request to the Microsoft Graph API

Reference:

https://docs.microsoft.com/en-us/graph/auth-v2-service

https://docs.microsoft.com/en-us/graph/sdks/create-client

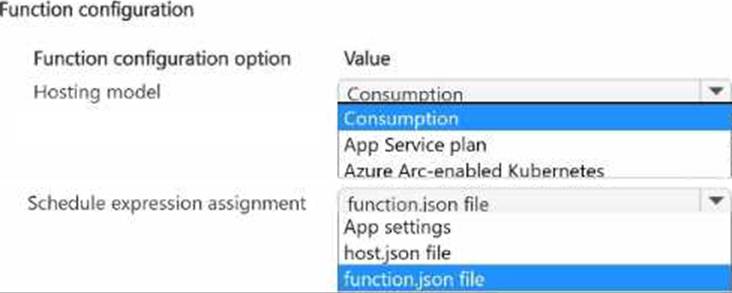

HOTSPOT

You plan to implement an Azure function named Function1 that will use the timer trigger.

You plan to use a TimeSpan value to set the schedule of function execution.

You need to select the hosting model and the schedule expression assignment method.

Which hosting model and schedule expression assignment method should you use? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

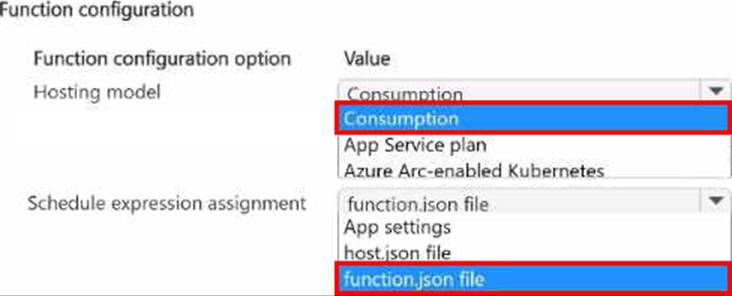

Correct Answer:

HOTSPOT

You plan to implement an Azure function named Function1 that will use the timer trigger.

You plan to use a TimeSpan value to set the schedule of function execution.

You need to select the hosting model and the schedule expression assignment method.

Which hosting model and schedule expression assignment method should you use? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

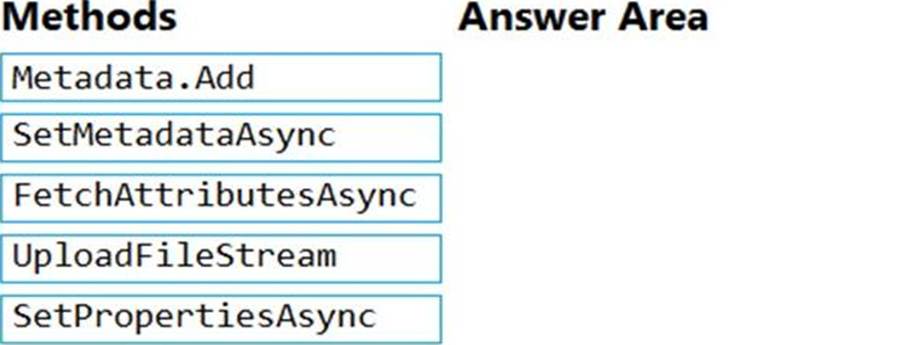

DRAG DROP

You have an application that uses Azure Blob storage.

You need to update the metadata of the blobs.

Which three methods should you use to develop the solution? To answer, move the appropriate methods from the list of methods to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

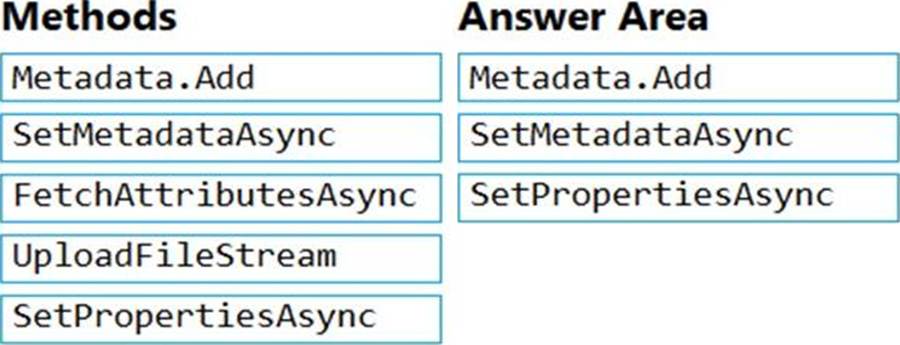

Correct Answer:

Explanation:

Metadata.Add example:

// Add metadata to the dictionary by calling the Add method metadata.Add("docType", "textDocuments");

SetMetadataAsync example:

// Set the blob’s metadata.

await blob.SetMetadataAsync(metadata);

// Set the blob’s properties. await blob.SetPropertiesAsync();

Reference: https://docs.microsoft.com/en-us/azure/storage/blobs/storage-blob-properties-metadata

HOTSPOT

A company runs an international travel and bookings management service. The company plans to begin offering restaurant bookings.

You must develop a solution that uses Azure Search and meets the following requirements:

• Users must be able to search for restaurants by name, description, location, and cuisine.

• Users must be able to narrow the results further by location, cuisine, rating, and family-friendliness.

• All words in descriptions must be included in searches.

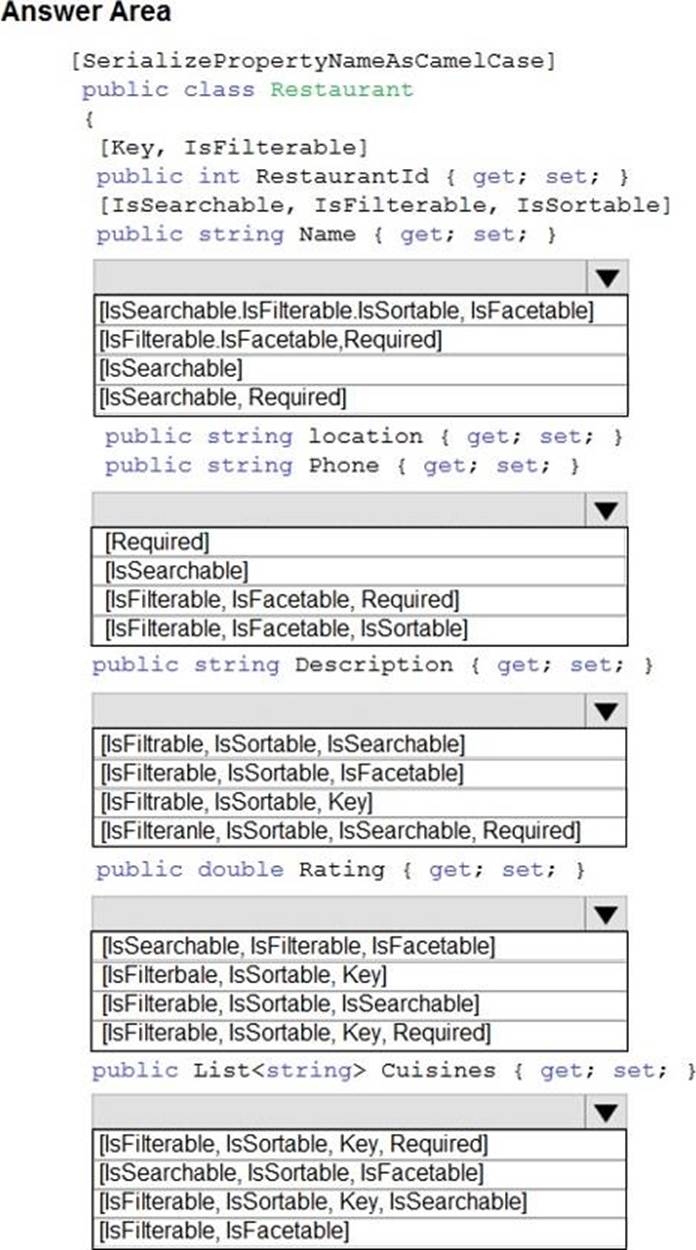

You need to add annotations to the restaurant class.

How should you complete the code segment? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

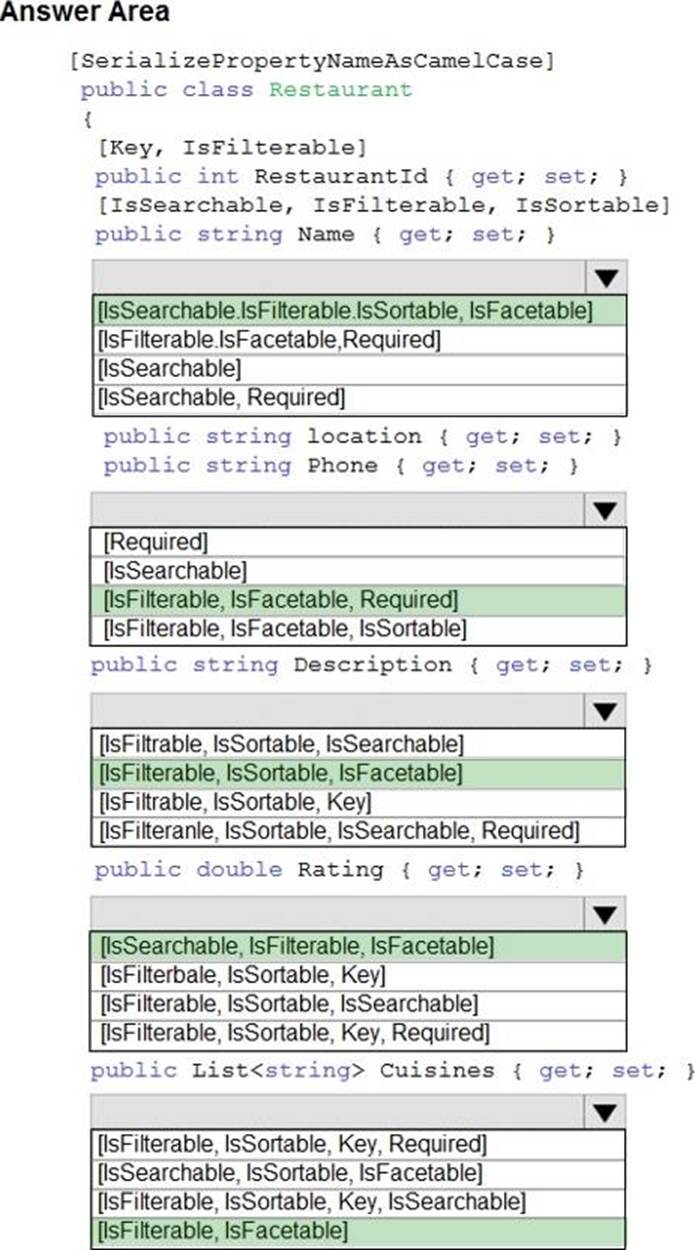

Correct Answer:

Explanation:

Box 1: [IsSearchable.IsFilterable.IsSortable,IsFacetable]

Location

Users must be able to search for restaurants by name, description, location, and cuisine.

Users must be able to narrow the results further by location, cuisine, rating, and family-friendliness.

Box 2: [IsSearchable.IsFilterable.IsSortable,Required]

Description

Users must be able to search for restaurants by name, description, location, and cuisine.

All words in descriptions must be included in searches.

Box 3: [IsFilterable,IsSortable,IsFaceTable]

Rating

Users must be able to narrow the results further by location, cuisine, rating, and family-friendliness.

Box 4: [IsSearchable.IsFilterable,IsFacetable]

Cuisines

Users must be able to search for restaurants by name, description, location, and cuisine.

Users must be able to narrow the results further by location, cuisine, rating, and family-friendliness.

Box 5: [IsFilterable,IsFacetable]

FamilyFriendly

Users must be able to narrow the results further by location, cuisine, rating, and family-friendliness.

Reference: https://www.henkboelman.com/azure-search-the-basics/

You have an Azure Queue Storage account that contains a queue named queue1.

You plan to use Azure SDK for NET to develop a solution that uses queue1.

You need to author C# code that will return an approximate number of messages in queue1. Your solution must minimize the development effort.

Which method should you use in your code?

Reveal Solution Hide Solution

You are developing a solution that will use Azure messaging services.

You need to ensure that the solution uses a publish-subscribe model and eliminates the need for constant polling.

What are two possible ways to achieve the goal? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

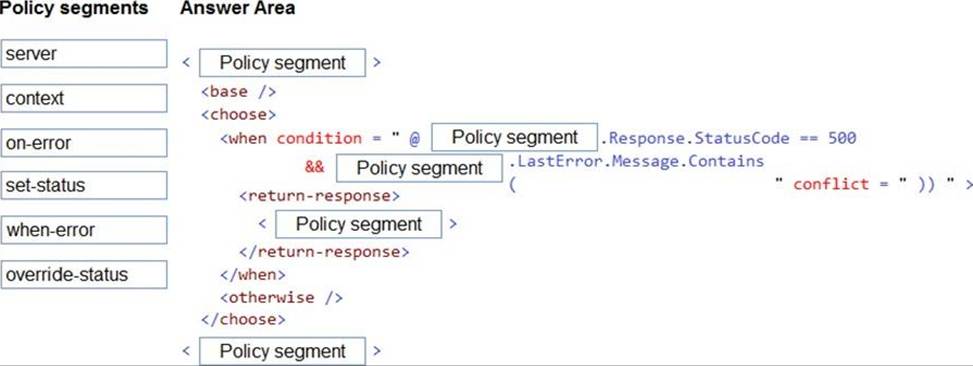

DRAG DROP

You are developing a REST web service. Customers will access the service by using an Azure API Management instance.

The web service does not correctly handle conflicts. Instead of returning an HTTP status code of 409, the service returns a status code of 500. The body of the status message contains only the word conflict.

You need to ensure that conflicts produce the correct response.

How should you complete the policy? To answer, drag the appropriate code segments to the correct locations. Each code segment may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

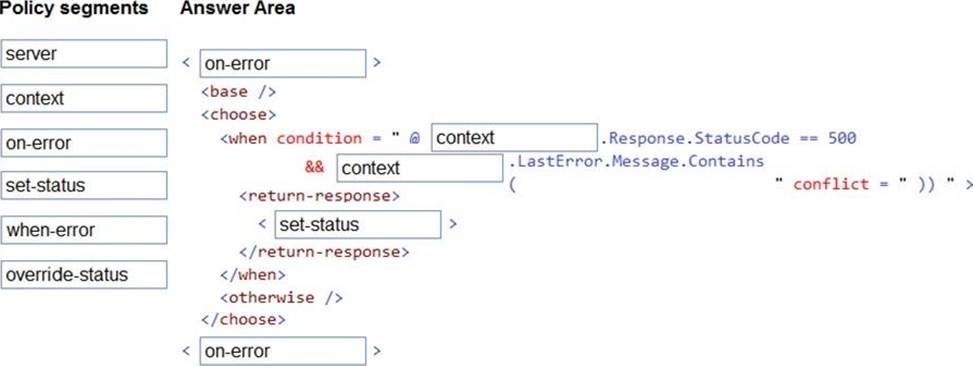

Correct Answer:

Explanation:

Box 1: on-error

Policies in Azure API Management are divided into inbound, backend, outbound, and on-error.

If there is no on-error section, callers will receive 400 or 500 HTTP response messages if an error condition occurs.

Box 2: context

Box 3: context

Box 4: set-status

The return-response policy aborts pipeline execution and returns either a default or custom response to the caller. Default response is 200 OK with no body.

Custom response can be specified via a context variable or policy statements.

Syntax:

<return-response response-variable-name="existing context variable"> <set-header/>

<set-body/>

<set-status/>

</return-response>

Box 5: on-error

Reference: https://docs.microsoft.com/en-us/azure/api-management/api-management-error-handling-policies

https://docs.microsoft.com/en-us/azure/api-management/api-management-transformation-policies

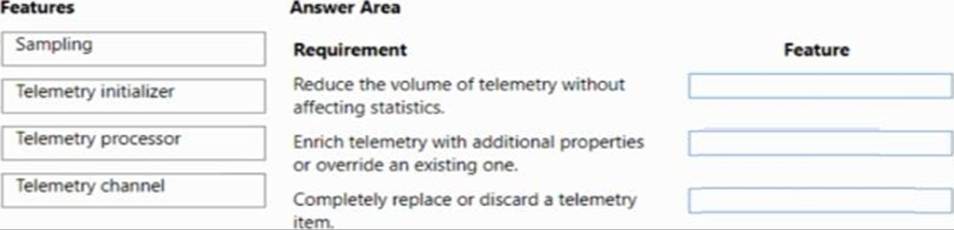

DRAG DROP

You develop and deploy a Java application to Azure. The application has been instrumented by using the Application Insights SDK.

The telemetry data must be enriched and processed before it is sent to the Application Insights service.

You need to modify the telemetry data.

Which Application Insights SDK features should you use? To answer, drag the appropriate features to the correct requirements. Each feature may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

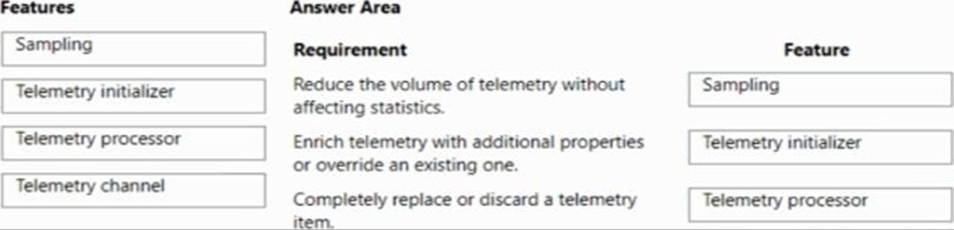

Correct Answer:
