Question #21

A user reports that a specific application is not working properly. This application makes multiple connection to the server and must have the same address every time from a pool and this behavior needs to be changed.

What would solve this problem?

A . Use STUN.
B . Use DNS doctoring.
C . Use the address-persistent parameter.
D . Use the persistent-nat parameter.

Reveal Solution Hide Solution

Question #22

A company has acquired a new branch office that has the same address space as one of its local networks, 192.168.100.0/24. The offices need to communicate with each other.

Which two NAT configurations will satisfy this requirement? (Choose two.)

A . [edit security nat source]
user@OfficeA# show rule-set OfficeBtoA {
from zone OfficeB;
to zone OfficeA;
rule 1 {
match {
source-address 192.168.210.0/24;
destination-address 192.168.200.0/24;
}
then {
source-nat { interface; }
}
}
}
B . [edit security nat static]
user@OfficeA# show rule-set From-Office-B {
from interface ge-0/0/0.0;
rule 1 {
match {
destination-address 192.168.200.0/24;
}
then {
static-nat {
prefix { 192.168.100.0/24; }
}
}
}
}
C . [edit security nat static]
user@OfficeB# show rule-set From-Office-A {
from interface ge-0/0/0.0;
rule 1 {
match {
destination-address 192.168.210.0/24;
}
then {
static-nat {
prefix { 192.168.100.0/24; }
}
}
}
}
D . [edit security nat source]
user@OfficeB# show rule-set OfficeAtoB {
from zone OfficeA;
to zone OfficeB;
rule 1 {
match {
source-address 192.168.200.0/24;
destination-address 192.168.210.0/24;
}
then {
source-nat { interface; }
}
}
}

Reveal Solution Hide Solution

Question #23

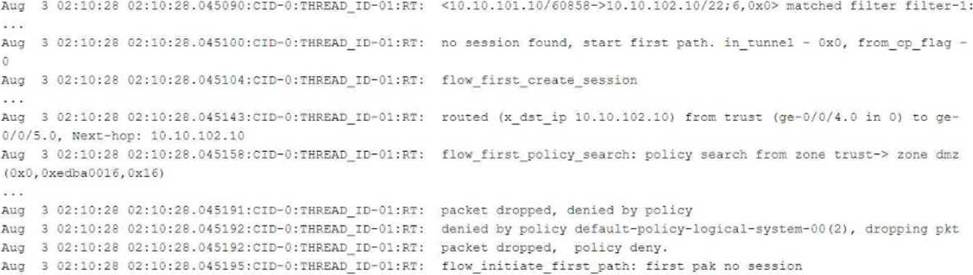

Exhibit:

Referring to the flow logs exhibit, which two statements are correct? (Choose two.)

A . The packet is dropped by the default security policy.
B . The packet is dropped by a configured security policy.
C . The data shown requires a traceoptions flag of host-traffic.
D . The data shown requires a traceoptions flag of basic-datapath.

Reveal Solution Hide Solution

Correct Answer: AD
AD

Explanation:

Understanding the Flow Log Output:

From the flow logs in the exhibit, we can observe the following key events:

The session creation was initiated (flow_first_create_session), but the policy search failed (flow_first_policy_search), which implies that no matching policy was found between the zones involved (zone trust-> zone dmz).

The packet was dropped with the reason "denied by policy." This shows that the packet was dropped either due to no matching security policy or because the default policy denies the traffic (packet dropped, denied by policy).

The line denied by policy default-policy-logical-system-00(2) indicates that the default security policy is responsible for denying the traffic, confirming that no explicit security policy was configured to allow this traffic.

Explanation of Answer A (Dropped by the default security policy):

The log message clearly states that the packet was dropped by the default security policy (default-policy-logical-system-00). In Junos, when a session is attempted between two zones and no explicit policy exists to allow the traffic, the default policy is to deny the traffic. This is a common behavior in Junos OS when a security policy does not explicitly allow traffic between zones. Explanation of Answer D (Requires traceoptions flag of basic-datapath):

The information displayed in the log involves session creation, flow policy search, and packet dropping due to policy violations, which are all part of basic packet processing in the data path. This type of information is logged when the traceoptions flag is set to basic-datapath. The basic-datapath traceoption provides detailed information about the forwarding process, including policy lookups and packet drops, which is precisely what we see in the exhibit.

The traceoptions flag host-traffic (Answer C) is incorrect because host-traffic is typically used for traffic destined to or generated from the Junos device itself (e.g., SSH or SNMP traffic to the SRX device), not for traffic passing through the device.

To capture flow processing details like those shown, you need the basic-datapath traceoptions flag, which provides details about packet forwarding and policy evaluation.

Step-by-Step Configuration for Tracing (Basic-Datapath):

Enable flow traceoptions:

To capture detailed information about how traffic is being processed, including policy lookups and flow session creation, enable traceoptions for the flow. bash

set security flow traceoptions file flow-log

set security flow traceoptions flag basic-datapath

Apply the configuration and commit:

bash

commit

View the logs:

Once enabled, you can check the trace logs for packet flows, policy lookups, and session creation details:

bash

show log flow-log

This log will contain information similar to the exhibit, including session creation attempts and

packet drops due to security policy.

Juniper Security

Reference: Default Security Policies: Juniper SRX devices have a default security policy to deny all traffic that is not explicitly allowed by user-defined policies. This is essential for security best practices.

Reference: Juniper Networks Documentation on Security Policies.

Traceoptions for Debugging Flows: Using traceoptions is crucial for debugging and understanding how traffic is handled by the SRX, particularly when issues arise from policy misconfigurations or routing.

Reference: Juniper Traceoptions.

By using the basic-datapath traceoptions, you can gain insights into how the device processes traffic, including policy lookups, route lookups, and packet drops, as demonstrated in the exhibit.

Question #24

Referring to the exhibit, you are assigned the tenantSYS1 user credentials on an SRX series device.

In this scenario, which two statements are correct? (Choose two.)

A . When you log in to the device, you will be located at the operational mode of the main system hierarchy.
B . When you log in to the device, you will be located at the operational mode of the Tenant.SY51 logical system hierarchy.
C . When you log in to the device, you will be permitted to view only the routing tables for the Tenant SYS1 logical system.
D . When you log in to the device, you will be permitted to view all routing tables available on the on an SYS1 Series device.

Reveal Solution Hide Solution

Question #25

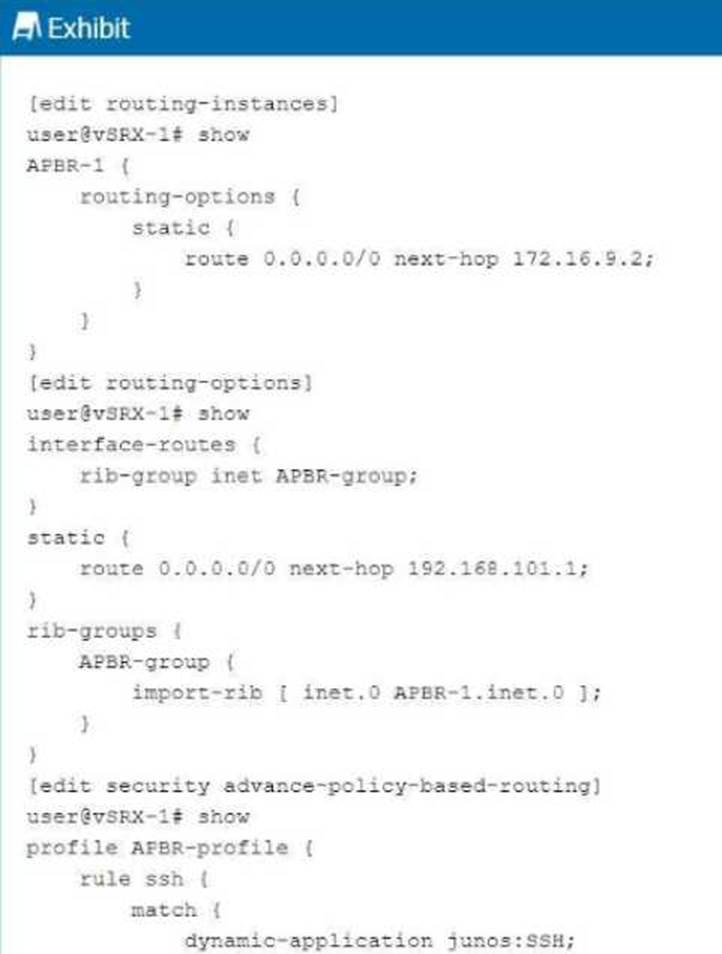

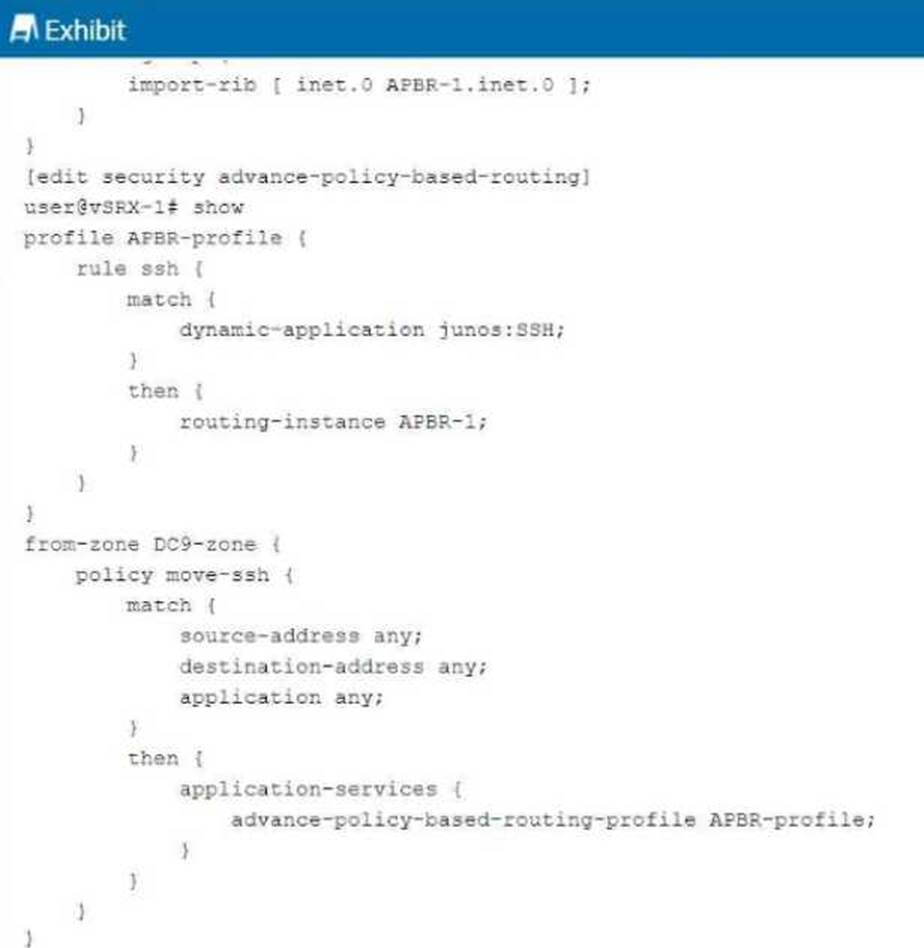

Exhibit:

You are having problems configuring advanced policy-based routing.

What should you do to solve the problem?

A . Apply a policy to the APBR RIB group to only allow the exact routes you need.
B . Change the routing instance to a forwarding instance.
C . Change the routing instance to a virtual router instance.
D . Remove the default static route from the main instance configuration.

Reveal Solution Hide Solution

Question #26

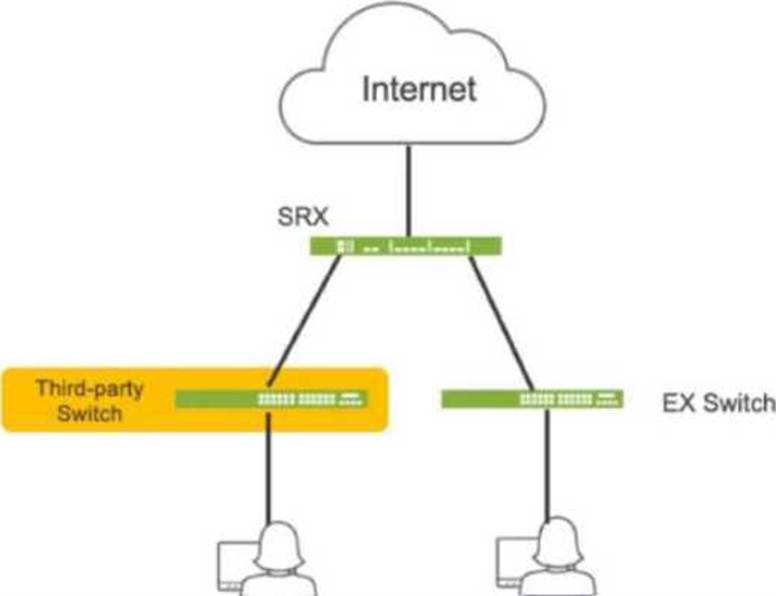

Click the Exhibit button.

Referring to the exhibit, which three actions do you need to take to isolate the hosts at the switch port level if they become infected with malware? (Choose three.)

A . Enroll the SRX Series device with Juniper ATP Cloud.
B . Use a third-party connector.
C . Deploy Security Director with Policy Enforcer.
D . Configure AppTrack on the SRX Series device.
E . Deploy Juniper Secure Analytics.

Reveal Solution Hide Solution

Question #27

You are deploying a large-scale VPN spanning six sites.

You need to choose a VPN technology that satisfies the following requirements:

All sites must have secure reachability to all other sites.

New spoke sites can be added without explicit configuration on the hub site.

All spoke-to-spoke communication must traverse the hub site.

Which VPN technology will satisfy these requirements?

A . ADVPN
B . Group VPN
C . Secure Connect VPN
D . AutoVPN

Reveal Solution Hide Solution

Question #28

You have a multinode HA default mode deployment and the ICL is down.

In this scenario, what are two ways that the SRX Series devices verify the activeness of their peers? (Choose two.)

A . Custom IP addresses may be configured for the activeness probe.
B . Fabric link heartbeats are used to verify the activeness of the peers.
C . Each peer sends a probe with the virtual IP address as the destination IP address.
D . Each peer sends a probe with the virtual IP address as the source IP address and the upstream router as the destination IP address.

Reveal Solution Hide Solution

Question #29

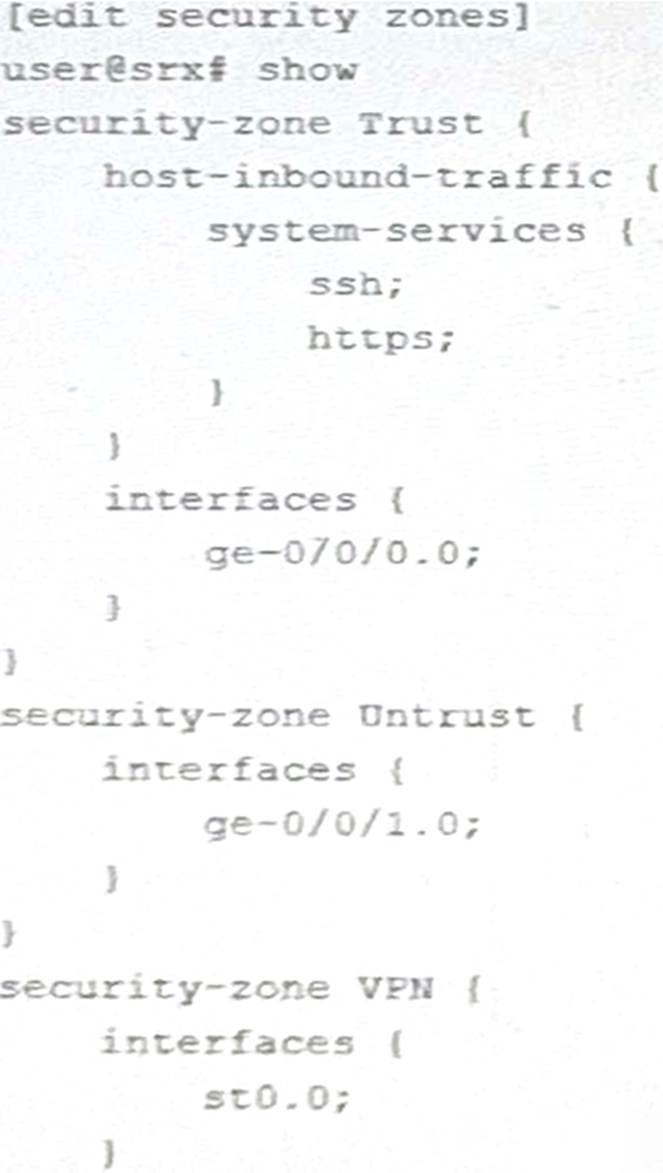

Referring to the exhibit, you are attempting to set up a remote access VPN on your SRX series devices.

However you are unsure of which system services you should allow and in which zones they should be allowed to correctly finish the remote access VPN configuration Which two statements are correct? (Choose two.)

A . You should add the host-inbound-traffic system-service ike statement to the Untrust zone.
B . You should add the host-inbound-traffic system-service ike statement to the VPN zone.
C . You should add the host-inbound-traffic system-service tcp-encap statement to the Untrust zone
D . You should add the host-inbound-traffic system-service tcp-encap statement to the VPN zone

Reveal Solution Hide Solution

Question #30

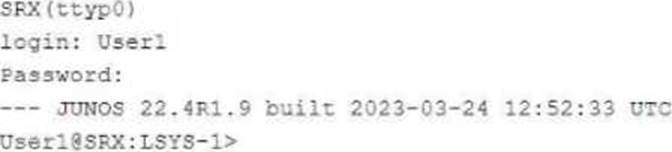

Referring to the exhibit,

which two statements about User1 are true? (Choose two.)

A . User1 has access to the configuration specific to their assigned logical system.
B . User1 is logged in to logical system LSYS-1.
C . User1 can add logical units to an interface that a primary administrator has not previously assigned.
D . User1 can view outputs from other user logical systems.

Reveal Solution Hide Solution
