Huawei H12-323_V2.0-ENU Practice Exams
Last updated on Oct 22,2026- Exam Code: H12-323_V2.0-ENU
- Exam Name: HCIP-WLAN V2.0
- Certification Provider: Huawei
- Latest update: Oct 22,2026
In LeaderAP networking, if multiple SSIDs are configured, the data forwarding method of all SSIDs must be the same
- A . True
- B . False
A retail store has newly built a WLAN network. For the in-store barcode scanner business, users require multiple barcode scanners to connect to the same SSID, but each barcode scanner needs to be configured with a different key, and there is no need to deploy an authentication server. Which of the following authentication methods can engineers use to meet the above requirements?
- A . WPA/WPA2-DPSK authentication
- B . WPA/WPA2-PPSK authentication
- C . Static WEP authentication
- D . WPA/WPA2-802.1X authentication
Which of the following descriptions of AC deployment methods is correct? (Multiple choice)
- A . AC deployment can be divided into two types: side-mounted deployment and direct-connected deployment.
- B . Side-mounted networking is an existing network overlay method, which requires less modification to the existing network and is quick and convenient to deploy. In addition, direct forwarding or tunnel forwarding mode can be selected according to the control requirements for wireless users.
- C . In the direct connection deployment mode, because the AC is connected in series in the network, the management data and user data between the AP and AC must be forwarded through the CAPWAP tunnel.
- D . Direct connection is mainly used in large campus network scenarios. The recommended number of APs in the network is more than 1,000.
AP6510DN is connected to AT815SN in a 6-point backhaul scenario; the backhaul distance is about 100m. Six AT815SNs are distributed in a range of 60 meters long and 60 meters wide; the equipment is installed at the same height and there is line of sight.
When the uplink bandwidth requirement is 10 Mbps and there is no EIRP restriction, which of the following antennas can be selected? (Multiple choice)
- A . 5G_19dBi_H15 degrees_V15 degrees
- B . 5G_17dBi H65 degrees_V7.5 degrees
- C . 56_16dBiH100 degrees_V5.5 degrees
- D . 5G_28dBi_H5 degrees_V5 degrees
In a wireless network, when a STA moves from one AP coverage area to another AP coverage area, WLAN roaming technology can be used to achieve smooth switching of terminal user services.
Which of the following conditions must be met to achieve roaming between two APs? (Multiple choice)
- A . Configure the same service VLAN
- B . Configure the same data forwarding mode
- C . Configure the same SSID
- D . Configure the same security policy
In the VRRP hot backup scenario, the CAPWAP source address on the active and standby WACs should be configured as the VRRP virtual address.
- A . True
- B . False
Which of the following options are inherent properties of antennas? (Multiple choice)
- A . Horizontal lobe, vertical lobe
- B . Downward tilt
- C . Azimuth
- D . Gain
An engineer is deploying a wireless network at a customer site. The customer requires the wireless controller to use dual-link hot standby networking. During the configuration process, the engineer found that dual links could not be established between the active and standby WACs. Which of the following situations may be the cause of this problem? (Multiple choice)
- A . When the AP selects WAC, the main WAC has not started normally
- B . The standby WAC IP address is not configured on the primary WAC or the configured IP address is inconsistent with the standby WAC IP address
- C . The IP address of protect-ac is not configured on the standby WAC
- D . The dual-link switch on the standby WAC is not turned on
Which of the following descriptions about 802.11r fast roaming is wrong?
- A . According to the protocol standard definition, 802.11r fast roaming includes Over-the Air and Over-the-DS
- B . 802.11r fast roaming requires the terminal to support the 802.11r protocol
- C . 802.11r fast roaming is applicable to security policies such as WPA2-PSK-AES, WPA2-PPSK-AES, and WPA2-802.1×-AES
- D . 802.11r fast roaming omits the key negotiation process through pairwise master key caching technology, thereby reducing roaming delay

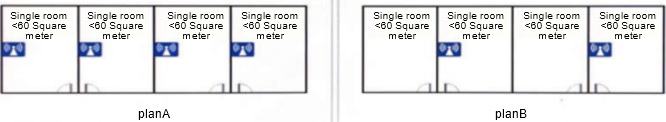

In the wireless coverage scenarios of wards and clinics, engineers proposed two network planning solutions as shown in the figure.
Which of the following descriptions of these two solutions are correct?
- A . If the walls between rooms are brick walls, it is recommended to use solution A, which is to place a panel AP or RU in each room and mount it on the wall.
- B . If the walls between rooms are brick walls, it is recommended to use solution A, which is to place a panel AP or RU in each room and install it on the ceiling.
- C . If the wall between the rooms is a gypsum wall, it is recommended to use solution B, one AP or RU covers two rooms and is mounted on the wall.
- D . If the walls between the rooms are plaster walls, it is recommended to use solution B, where one AP or RU covers two rooms and is installed on the ceiling.
