HP HPE7-A01 Practice Exams
Last updated on Oct 22,2026- Exam Code: HPE7-A01
- Exam Name: Aruba Certified Campus Access Professional Exam
- Certification Provider: HP
- Latest update: Oct 22,2026
A network administrator is attempting to troubleshoot a connectivity issue between a group of users and a particular server The administrator needs to examine the packets over a period of time from their desktop; however, the administrator is not directly connected to the AOS-CX switch involved with the traffic flow.
What statements are correct regarding the ERSPAN session that needs to be established on an AOS-CX switch’? (Select two )
- A . On the source AOS-CX switch, the destination specified is the switch to which the administrator’s desktop is connected
- B . The encapsulation protocol used is GRE.
- C . The encapsulation protocol used is VXLAN.
- D . The encapsulation protocol is UDP.
- E . On the source AOS-CX switch, the destination specified is the administrators desktop
Your manufacturing client is deploying two hundred wireless IP cameras and fifty headless scanners in their warehouse. These new devices do not support 802.1X authentication .
How can HPE Aruba enhance security for these new IP cameras in this environment?
- A . Use MPSK Local to automatically provide unique pre-shared Keys for devices.
- B . Aruba ClearPass performs the 802.1X authentication and installs a certificate.
- C . MPSK provides for each device in the WLAN to have its own unique pre-shared Key.
- D . MPSK Local will allow the cameras to share a rey and the scanners to share a different
A customer has a site with 200 AP-515 access points 75AP-565 access points installed. The customer is rolling out new mobile phones with Wi-Fi-calling. 802.1X is in use for authentication.
What should be enabled to ensure the best roaming experience?
- A . 802.1X
- B . 802. 11r
- C . 802.11W
- D . 802 .11h

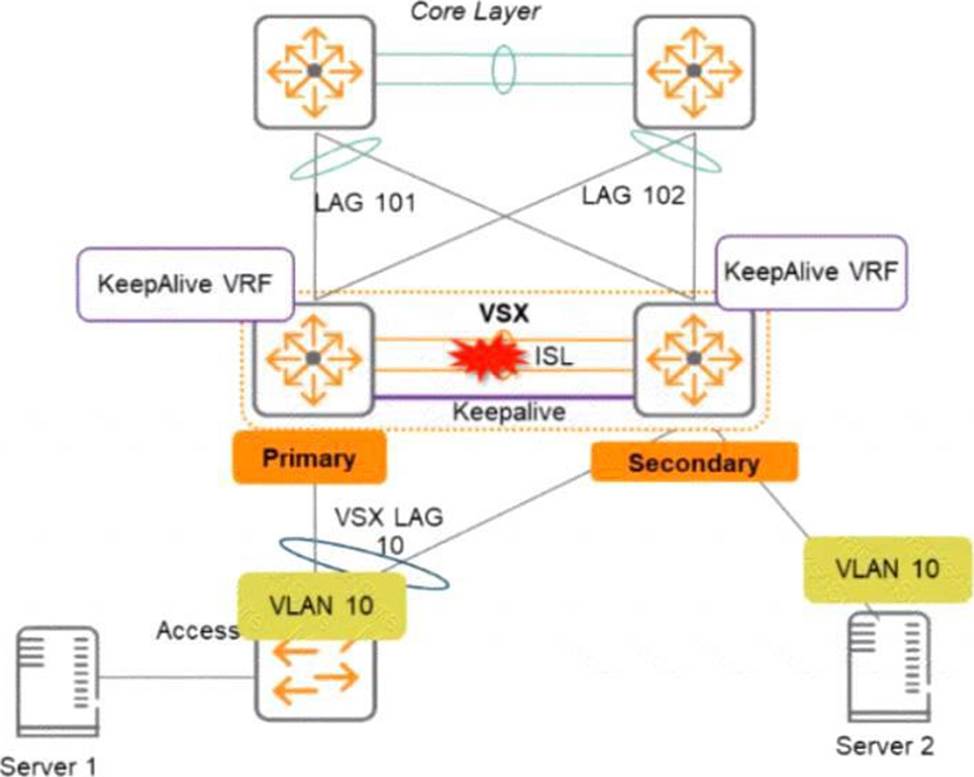

Two AOS-CX switches are configured with VSX at the the Access-Aggregation layer where servers attach to them An SVI interface is configured for VLAN 10 and serves as the default gateway for VLAN 10. The ISL link between the switches fails, but the keepalive interface functions. Active gateway has been configured on the VSX switches.
What is correct about access from the servers to the Core? (Select two.)
- A . Server 1 can access the core layer via the keepalrve link
- B . Server 2 can access the core layer via the keepalive link
- C . Server 2 cannot access the core layer.
- D . Server 1 can access the core layer via both uplinks
- E . Server 1 and Server 2 can communicate with each other via the core layer
- F . Server 1 can access the core layer on only one uplink

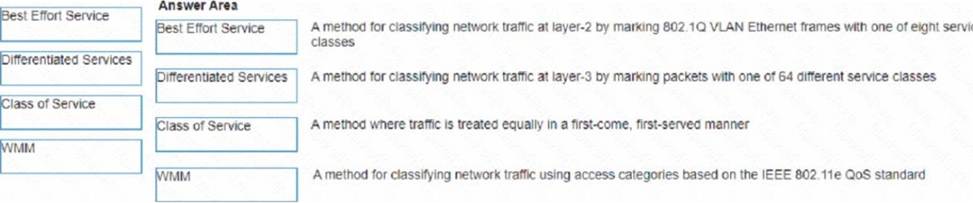

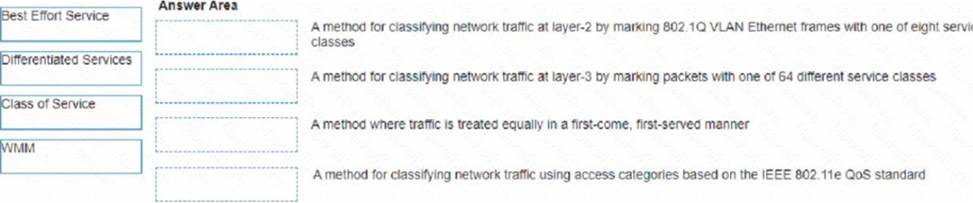

Match the appropriate QoS concept with its definition. (Options may be used more than once or not at all.)
In AOS 10. which session-based ACL below will only allow ping from any wired station to wireless clients but will not allow ping from wireless clients to wired stations"? The wired host ingress traffic arrives on a trusted port.
- A . ip access-list session pingFromWired any user any permit
- B . ip access-list session pingFromWired user any svc-icmp deny any any svc-icmp permit
- C . ip access-list session pingFromWired any any svc-icmp permit user any svc-icmp deny
- D . ip access-list session pingFromWired any any svc-icmp deny any user svc-icmp permit
You need lo have different routing-table requirements with Aruba CX 6300 VSF configuration Assuming the correct layer-2 VLAN already exists how would you create a new OSPF configuration for a separate routing table?
- A . Create a new OSPF area, and attach VRF name.
- B . Create a new OSPF process ID with vrf name.
- C . Attach a new OSFP process ID with a custom routing table
- D . Attach OSPF process ID in the VRF configuration.
Your Director of Security asks you to assign AOS-CX switch management roles to new employees based on their specific job requirements After the configuration was complete, it was noted that a user assigned with the administrators role did not have the appropriate level of access on the switch.
The user was not limited to viewing nonsensitive configuration information and a level of 1 was not assigned to their role.
Which default management role should have been assigned for the user?
- A . sysadmin
- B . operators
- C . helpdesk
- D . config
Which statement best describes QoS?
- A . Determining which traffic passes specified quality metrics
- B . Scoring traffic based on the quality of the contents
- C . Identifying specific traffic for special treatment
- D . Identifying the quality of the connection

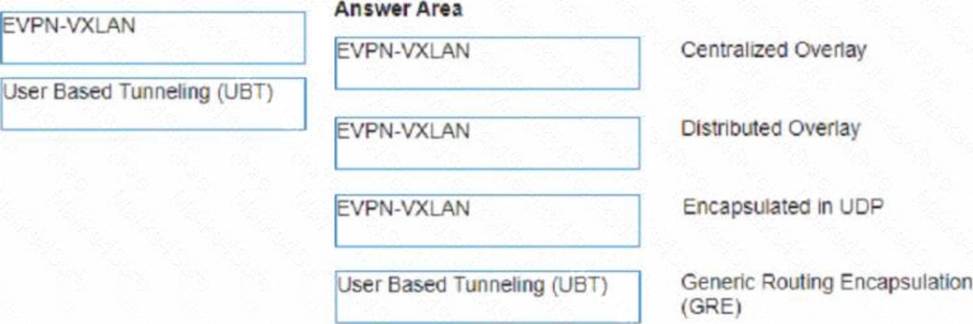

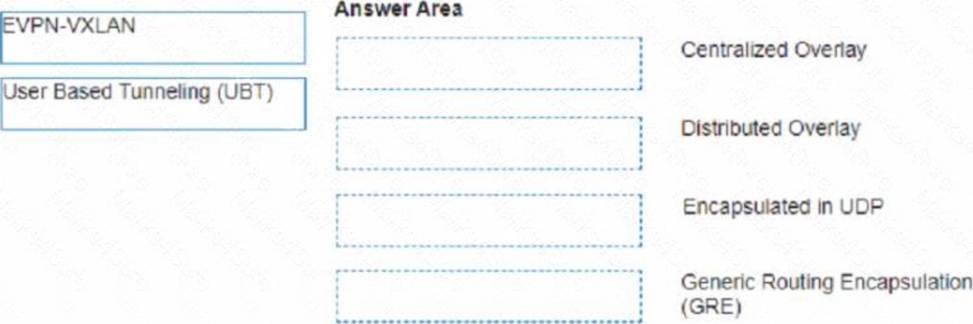

Match the topics with the underlying technologies (Options may be used more than once or not at all.)
