Free HP HPE7-A01 Practice Exams - Page 2 of 6

Question #11

What is true regarding 802.11k?

A . It extends radio measurements to define mechanisms for wireless network management of stations
B . It reduces roaming delay by pre-authenticating clients with multiple target APs before a client roams to an AP
C . It provides mechanisms for APs and clients to dynamically measure the available radio resources.
D . It considers several metrics before it determines if a client should be steered to the 5GHz band, including client RSSI

Reveal Solution Hide Solution

Question #12

What are the requirements to ensure that WMM is working effectively’? (Select two)

A . The APs and the controller are Wi-Fi CERTIFIED for WMM which is enabled
B . All APs need to be from the AP-5xx series and AP-6xx series which are Wi-Fi CERTIFIED 6.
C . The Client must be Wi-Fi CERTIFIED for WMM and configured for WMM marking.
D . The Aruba AOS10 APs installed have to be converted to controlled mode
E . The AP needs to be connected via a tagged VLAN to the wired port

Reveal Solution Hide Solution

Question #13

A customer wants to enable wired authentication across all their CX switches One of the requirements is that the switch must be able to authenticate a single computer connected through a VoIP phone.

Which feature should be enabled to support this requirement?

A . Multi-Domain Authentication
B . Device-Based Mode
C . MAC Authentication
D . Multi-Auth Mode

Reveal Solution Hide Solution

Question #14

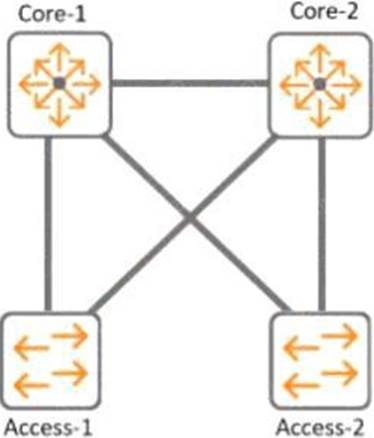

Refer to Exhibit:

With Access-1, What needs to be identically configured With MSTP to load-balance VLANS?

A . Spanning-tree bpdu-guard setting
B . Spanning-tree instance vlan mapppjng
C . spanning-tree Cist mapping
D . Spanning-tree root-guard setting

Reveal Solution Hide Solution

Correct Answer: B
B

Explanation:

The correct answer is B. Spanning-tree instance VLAN mapping.

To load-balance VLANs with MSTP, you need to configure the same VLAN-to-instance mapping on all switches in the same MST region. This means that you need to assign different VLANs to different MST instances, and then adjust the spanning tree parameters (such as priority, cost, or port role) for each instance to achieve the desired load balancing. For example, you can make one switch the root for instance 1 and another switch the root for instance 2, and then map half of the VLANs to instance 1 and the other half to instance 2.

According to the Cisco document Understand the Multiple Spanning Tree Protocol (802.1s), one of the steps to configure MST is:

Split your set of VLANs into more instances and configure different MST settings for each of these instances. In order to easily achieve this, elect Bridge D1 to be the root for VLANs 501 through 1000, and Bridge D2 to be the root for VLANs 1 through 500.

These statements are true for this configuration:

Switch D1(config)#spanning-tree mst configuration

Switch D1(config-mst)#instance 1 vlan 501-1000

Switch D1(config-mst)#exit

Switch D1(config)#spanning-tree mst 1 priority 0

Switch D2(config)#spanning-tree mst configuration

Switch D2(config-mst)#instance 2 vlan 1-500

Switch D2(config-mst)#exit

Switch D2(config)#spanning-tree mst 2 priority 0

The above commands create two MST instances, 1 and 2, and map VLANs 501-1000 to instance 1 and VLANs 1-500 to instance 2. Then, they make switch D1 the root for instance 1 and switch D2 the root for instance 2.

The other options are incorrect because:

A) Spanning-tree bpdu-guard setting is a security feature that disables a port if it receives a BPDU from an unauthorized device. It does not affect load balancing with MSTP.

C) Spanning-tree CIST mapping is not a valid command. CIST stands for Common and Internal Spanning Tree, which is the spanning tree instance that runs within an MST region and interacts with other regions or non-MST switches.

D) Spanning-tree root-guard setting is another security feature that prevents a port from becoming a root port if it receives superior BPDUs from another switch. It does not affect load balancing with MSTP.

Question #15

With the Aruba CX switch configuration, what is the first-hop protocol feature that is used for VSX L3 gateway as per Aruba recommendation?

A . Active Gateway
B . Active-Active VRRP
C . SVI with vsx-sync
D . VRRP

Reveal Solution Hide Solution

Question #16

Describe the difference between Class of Service (CoS) and Differentiated Services Code Point (DSCP).

A . CoS has much finer granularity than DSCP
B . CoS is only contained in VLAN Tag fields DSCP is in the IP Header and preserved throughout the IP packet flow
C . They are similar and can be used interchangeably.
D . CoS is only used to determine CLASS of traffic DSCP is only used to differentiate between different Classes.

Reveal Solution Hide Solution

Question #17

Your customer is having issues with Wi-Fi 6 clients staying connected to poor-performing APs when a higher throughput APs are closer.

Which technology should you implement?

A . Clearpass
B . ClientMatch
C . Airmatch
D . ARM

Reveal Solution Hide Solution

Question #18

A customer just upgraded aggregation layer switches and noticed traffic dropping for 120 seconds after the aggregation layer came online again.

What is the best way to avoid having this traffic dropped given the topology below?

A . Configure the linkup delay timer to 240 seconds to double the amount of lime for the initial phase to sync
B . Configure the linkup delay timer to exclude LAGS 101 and 102, which will allow time for routing adjacencies to form and to learn upstream routes
C . Configure the linkup delay timer to include LAGs 101 and 102, which will allow time for routing adjacencies lo form and to learn upstream routes
D . Configure the linkup delay timer to 120 seconds, which will allow the right amount of time for the initial phase to sync

Reveal Solution Hide Solution

Question #19

Which standard supported by some Aruba APs can enable a customer to accurately locate wireless client devices within a few meters?

A . 802.11mc
B . 802.11W
C . 802.11k
D . 802.11r

Reveal Solution Hide Solution

Question #20

Refer to the exhibit.

With Core-1. what is the default value for config-revision?

A . 0
B . 1
C . 1-0
D . 0. 0

Reveal Solution Hide Solution
