DELL EMC D-NWG-FN-23 Practice Exams
Last updated on Oct 22,2026- Exam Code: D-NWG-FN-23
- Exam Name: Dell Networking Foundations 2023
- Certification Provider: DELL EMC
- Latest update: Oct 22,2026

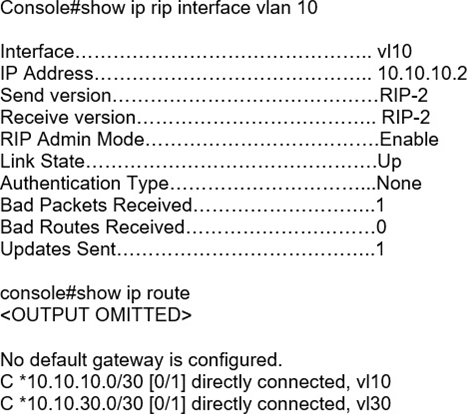

Refer to the exhibit.
A technician configures RIP on a new N-Series switch to connect to an existing switch that runs RIP. The new switch routing table is NOT populating even after the correct network statements are added.
What is causing this issue?
- A . The new N-Series switch does not have “default-information originate” configured.
- B . The existing switch has been configured for “hostroutesaccept”.
- C . The other switch is a root bridge and cannot form RIP relationships.
- D . The existing switch is configured to send and receive only for RIPv1.
What is administrative distance value for default static routes?
- A . 0
- B . 1
- C . 10
- D . 20
A dell Networking N-Series has configured a port-channel with LACP using the interfaces Tel/0/1 and Tel/0/2.
How is the egress traffic distributed among the interfaces?
- A . Load balanced using a hash function
- B . Load balanced per packet using Round Robin
- C . Traffic overflow will be sent to the second interface
- D . Interfaces will be used in active/passive
A Dell Networking N3024 has a link aggregation configured as shown:
interface Gi1/0/1
channel-group 1 mode active
exit
!
interface Gi1/0/2
channel-group 1 mode active
exit
!
interface port-channel 1
switchport access vlan 10
exit
After connecting all cables, the port-channel does NOT work as expected.

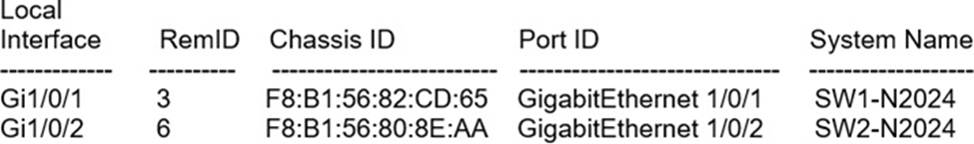

As part of the troubleshooting process, the technician examines the “show lldp” displayed:
What is the most likely cause for the issue on the port-channel?
- A . The interface port-channel is not using 10Gbps interfaces.
- B . The interfaces on the N2024 switches are running LACP.
- C . The interface port-channel is not configured in trunk mode.
- D . The interfaces are connected to different switches.
Which operating system does an N-Series switch use?
- A . OS 3
- B . OS 6
- C . OS 9
- D . OS 10
What is the Organizationally Unique Identifier (OUI) in the MAC address 00:C4:4F:23:AF:4A?
- A . 00:C4:4F
- B . 00:C4:4F:23
- C . 23:AF:4A
- D . 4F:23:AF:4A

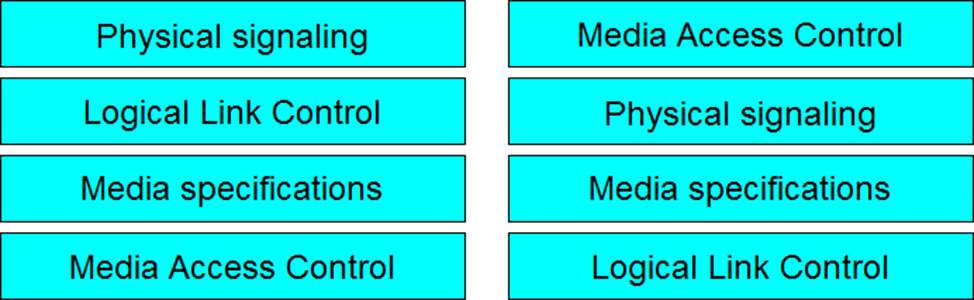

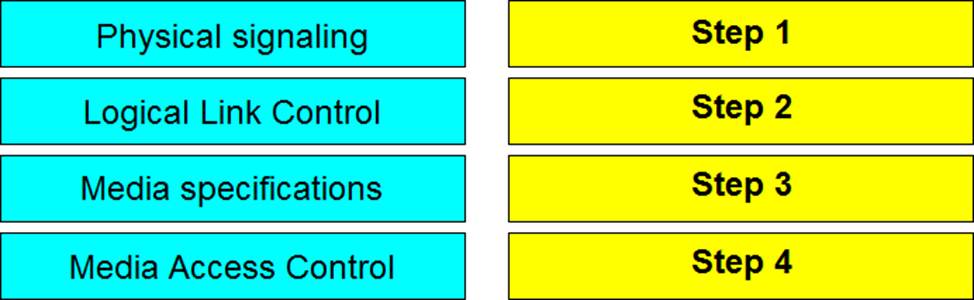

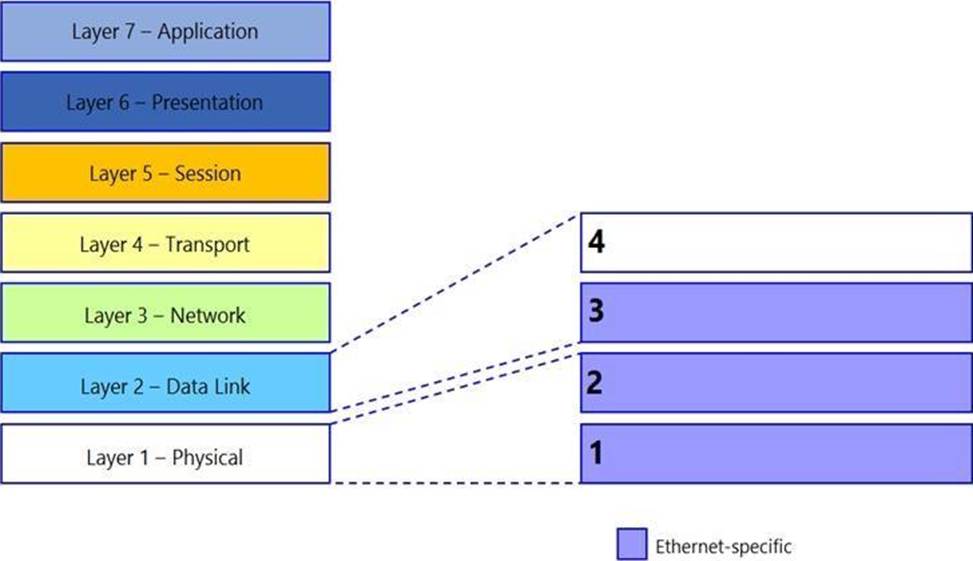

The IEEE separates the Data Link and Physical ISO layers into four sub-layers.
Based on the exhibit, what is the correct order of these sub-layers; from lowest to highest?
Which command sequence leads to the successful creation of a Layer 3 port channel on an OS10 switch?
- A . 1(config-if-po-2)# ip address 192.168.0.0/31
S1(config-if-po-2)# no switchport - B . S1(config-if-po-2)# ip address 192.168.0.0/31
S1(config-if-po-2)# no switchport - C . S1(config-if-po-2)# ip address 192.168.0.0/31
S1(config-if-po-2)# switchport mode IPv4 - D . S1(config-if-po-2)# no switchport
S1(config-if-po-2)# ip address 192.168.0.0/31
A network administrator wants to use a subnet that will only have two host addresses.
Which subnet mask meets this requirement?
- A . 255.255.255.248
- B . 255.255.255.252
- C . 255.255.255.254
- D . 255.255.255.256
Which port states are used in both spanning tree and rapid spanning port tree protocols?
- A . Learning and Discarding
- B . Learning and Forwarding
- C . Listening and Blocking
- D . Listening and Forwarding
