Cisco 300-815 Practice Exams
Last updated on Oct 21,2026- Exam Code: 300-815
- Exam Name: Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)
- Certification Provider: Cisco
- Latest update: Oct 21,2026

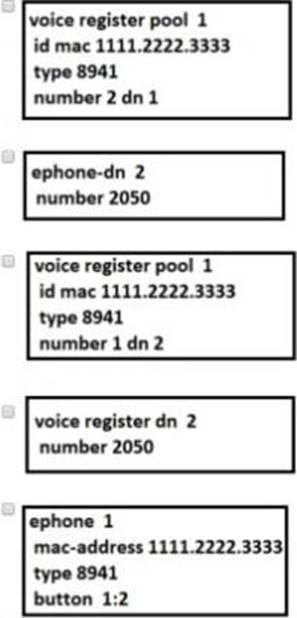

An IP Telephony administrator is deploying IP phones The administrator has an existing Cisco UCME router with several SCCP & SIP phones registered. The administrator receives a request for a new SIP phone with MAC address 1111 2222.3333 and directory number 2050 to be added in the Cisco UCME.
Which two configurations should be added in CME to support this request? (Choose two)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
- E . Option E

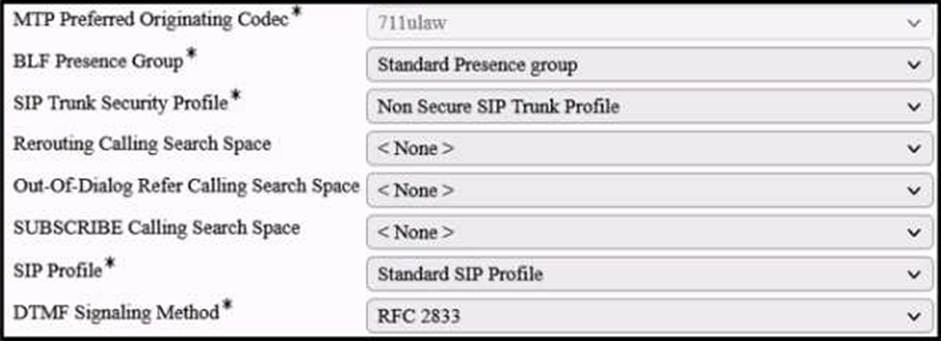

Refer to the exhibit.
An administrator just Implemented SIP trunking on their Cisco UCM and reports that calls using the SIP trunk are using Media Termination Point resources unnecessarily.
Which action resolves the issue?
- A . Disable SIP Red XX Options.
- B . Change to a range that does not result in MTP.
- C . Change OTMF Signaling Method to "No Preference".
- D . Change DTMF Signaling Method to "RFC 4733".
An engineer is configuring Cisco UCM lo forward parked calls back to the user who parked the call if it is not retrieved after a specified time interval.
Which action must be taken to accomplish this task?
- A . Configure device pools.
- B . Configure service parameters
- C . Configure enterprise softkeys.
- D . Configure class of control.
Cisco SIP IP telephony is implemented on two floors of your company. Afterward, users report intermittent voice issues in calls established between floors. All calls are established, and sometimes they work well, but sometimes there is one-way audio or no audio. You determine that there is a firewall between the floors, and the administrator reports that it is allowing SIP signaling and UDP ports from 20000 to 22000 bidirectionally.
What are two possible solutions? (Choose two.)
- A . Go to the SIP profile assigned to these IP phones in Cisco Unified CM and change the range of media ports to 16384-32767
- B . Ask the firewall administrator to change the ports to TCP.
- C . Ask the firewall administrator to change the range of UDP ports to 16384-32767.
- D . Go to the SIP profile assigned to these IP phones in Cisco Unified CM and change the range of media ports to 20000-22000.
- E . Go to System Parameters in Cisco Unified Communications Manager and change the range of media ports to 20000-22000.
AC
Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/port/9_1_1/CUCM_BK_T2CA6EDE_00_tcp-port-usage-guide-91/CUCM_BK_T2CA6EDE_00_tcp-port-usage-guide-91_chapter_01.html

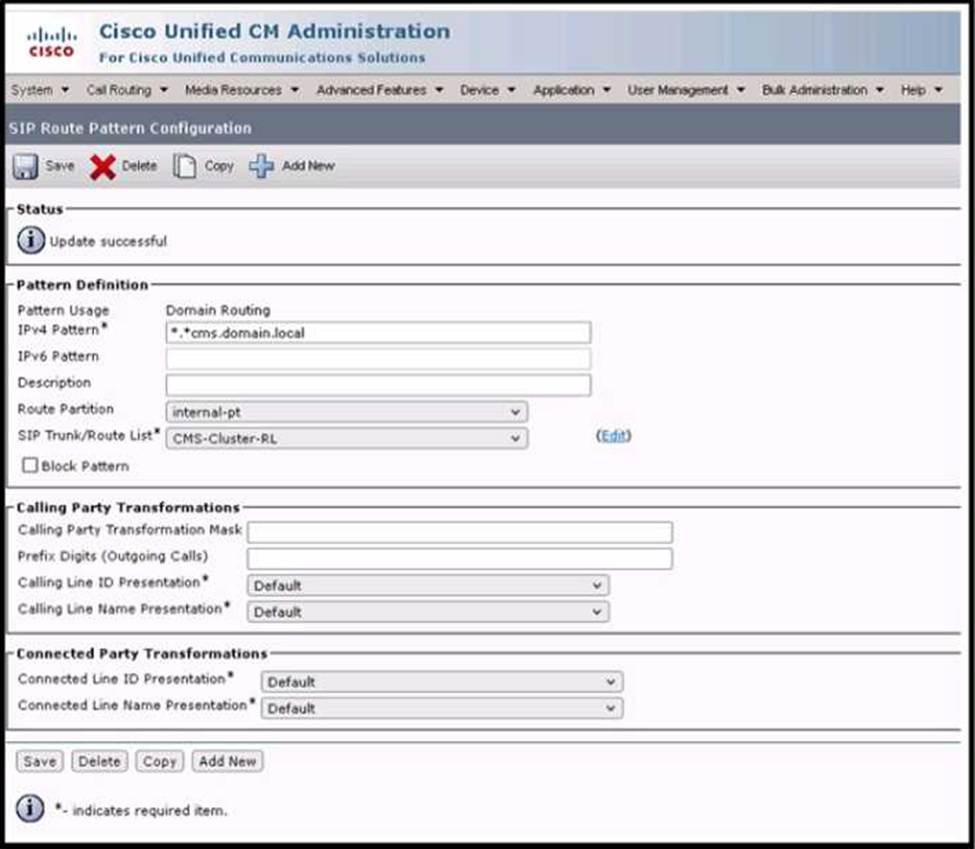

Refer to the exhibit.
The customer is troubleshooting an issue where users cannot dial the CMS SIP Route Pattern. The CMS URI they are attempting to dial is [email protected].
Which IPv4 pattern must the customer enter to resolve the issue?
- A . ‘@cms.domain.local
- B . cms.domain.local
- C . ".cms.domain.local
- D . [email protected]
An administrator sees the voice register pool 1 command in a Cisco UCME configuration.
Which configuration is occurring in this section?
- A . configuration for a pool of SIP phones (similar to device pool on Cisco UCM)
- B . configuration for a single SIP phone
- C . configuration for SIP registrar service
- D . configuration items common for all SIP phones
A company wants to use a Cisco phone system without the need for a local generic server. It is maximum 30 phones using a vendor-independent, industry-standard call protocol.
What is the first command that must be entered to add this type of phone when registering a Cisco phone to this device?
- A . ephone 3
- B . voice register pool 3
- C . voice register sip ephone 3
- D . voice register ephone 3
When configuring hunt groups, where do you add the individual directory numbers that will be part of the group?
- A . route group
- B . line group
- C . hunt list
- D . hunt pilot
B
Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_0_1/systemConfig/cucm_b_system-configuration-guide-1201/cucm_b_system-configuration-guide-1201_chapter_010101.html
Users in a small location report that audio calls work Tine, but only one video call works before the next one gets a busy signal. Three video conference rooms were recently installed by a third party. The audio and video devices are Cisco endpoints. The site uses video and audio calls, and a network investigation does not show saturation on the link The site is configured with QoS and CoS. All devices are registered on the headquarters Cisco UCM duster.
What is the cause of this problem?
- A . The subzone setting for video is too low.
- B . The zone settings for video are too low.
- C . The location setting for video is too low.
- D . The pipe or link configuration for video is set to only one device.
An engineer must configure a secure SIP trunk with a remote provider, with a specific requirement to use port 5065 for inbound and otubound traffic.
Which two items must be configured to complete this configuration? (Choose two.)
- A . Incoming Port in SIP Information section of the SIP Trunk configuration.
- B . Incoming Port in Security Information of the SIP Profile configuration.
- C . Destination Port in SIP Information section of the SIP Trunk configuration
- D . Incoming Port in SIP Trunk Security Profile configuration
- E . Destination Port in SIP Trunk Security Profile configuration
