Cisco 300-815 Practice Exams
Last updated on Oct 21,2026- Exam Code: 300-815
- Exam Name: Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)
- Certification Provider: Cisco
- Latest update: Oct 21,2026

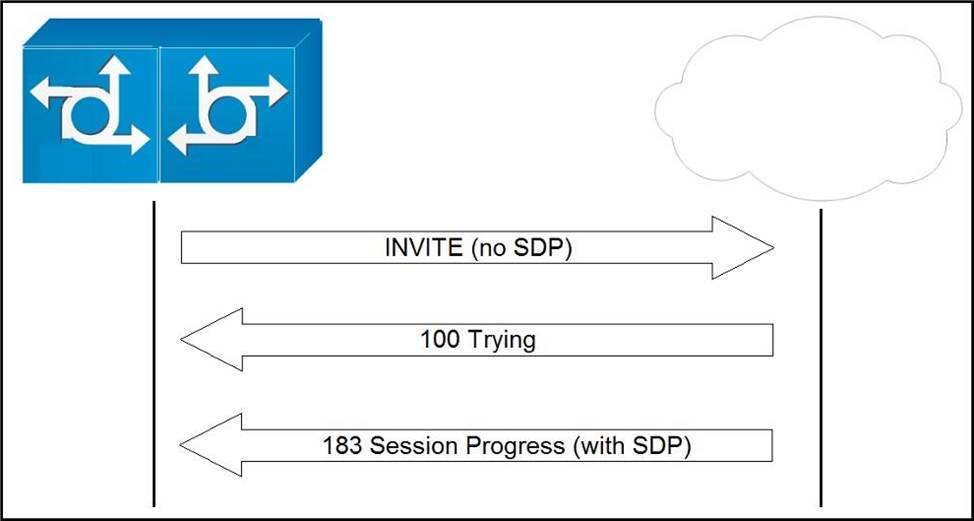

Refer to the exhibit.
An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer’s carrier has a requirement that dialing long distance requires an access code to be entered.
Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)
- A . Enable PRACK.
- B . Enable Early Offer on the Cisco Unified Border Element.
- C . Enable the supplementary-service media-renegotiate command.
- D . Enable Media Flow Around
- E . Enable Mid-Call Signaling Consumption.

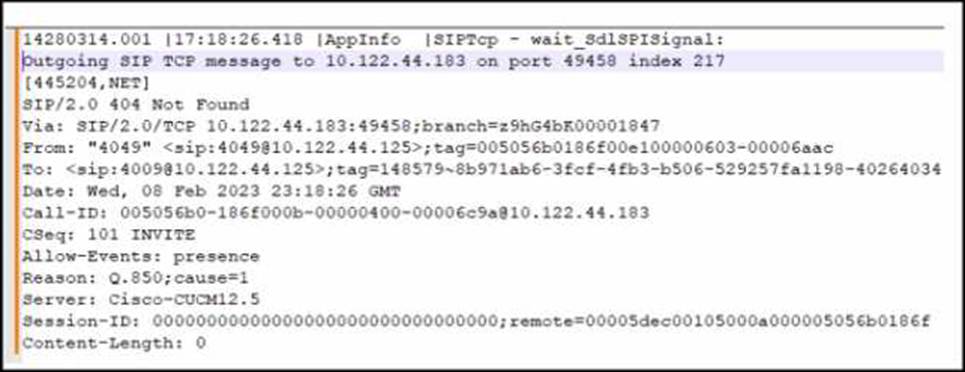

Refer to the exhibit.
An administrator just upgraded to Cisco UCM to version 14 and started SIP implementation with some new SIP trunks. During the testing, an error was reported when making a call.
Which action resolves the issue?
- A . Change to a valid range.
- B . Change DTMF Signaling Method to "RFC 4833*.
- C . Make sure the destination number is configured correctly and the device is registered.
- D . Disable SIP Rel1XX Options.
An engineer set up and successfully tested a TEHO solution on the Cisco UCM. PSTN calls are routed correctly using the IP WAN as close to the final PSTN destination as possible. However, suddenly, calls start using the backup local gateway instead.
What is causing the issue?
- A . WAN connectivity
- B . LAN connectivity
- C . route pattern
- D . route list and route group

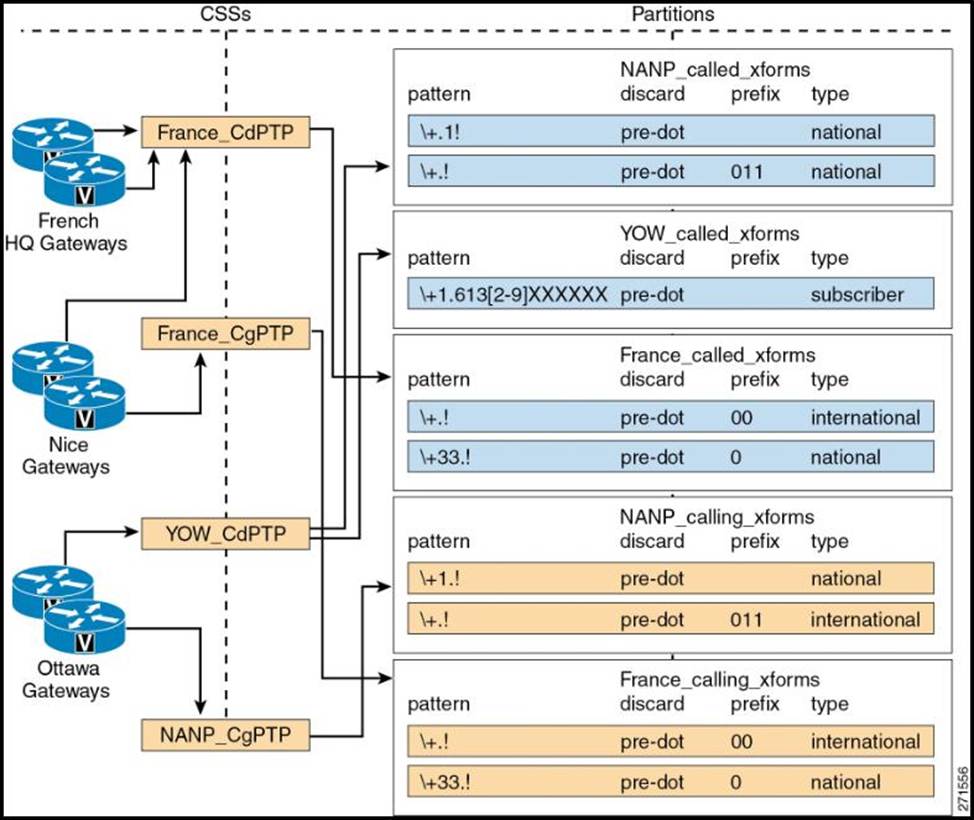

Refer to the exhibit.
Within the North American Numbering Plan, gateways located in Ottawa, Canada and marked as “YOW” are assigned to the Calling Party Transformation CSS NANP_CgPTP, which contains partition NANP_calling_xforms.
What is the calling-party number and the numbering type if the calling user +1613-555-1234 dials the number?
- A . calling number 613-555-1234 and numbering type “subscriber”
- B . calling number 011-1-613-555-1234 and numbering type “subscriber”
- C . calling number 011613-555-1234 and numbering type “international”
- D . calling number 613-555-1234 and numbering type “national”

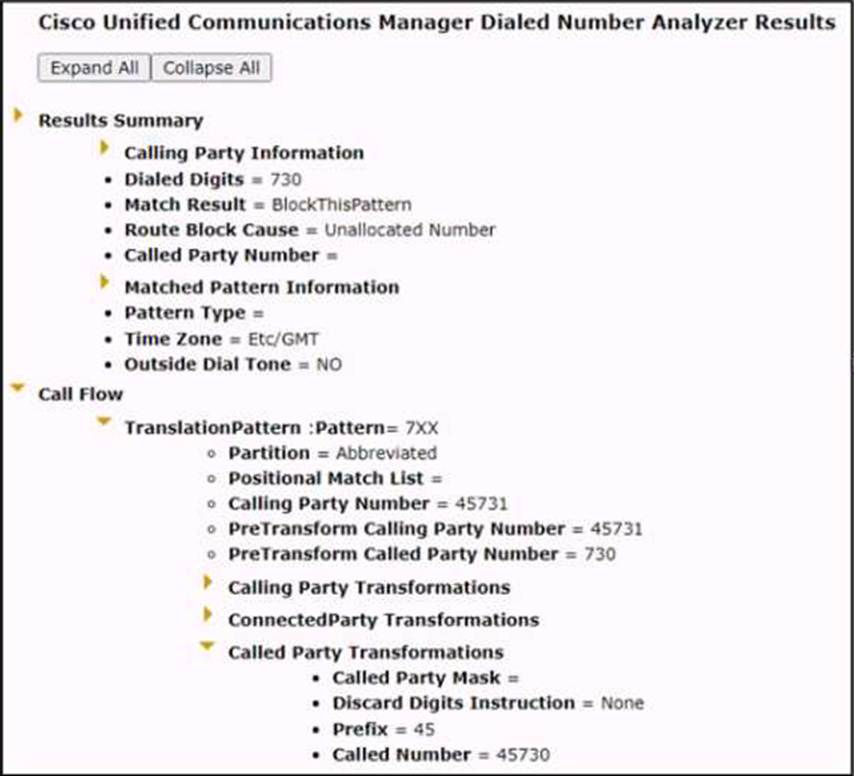

Refer to the exhibit.
A user cannot call number 730. which Is an abbreviated number for 45730. The engineer recently configured a translation pattern In Cisco UCM. The newly configured translation pattern of 7XX prefixes the digits 45. The engineer uses DNA to troubleshoot the issue.
What is the reason for this problem?
- A . The abbreviated partition is missing from the calling search space.
- B . The translation pattern is blocking the call.
- C . The translation pattern Is misconfigured.
- D . Directory number 45730 is unknown to Cisco UCM.

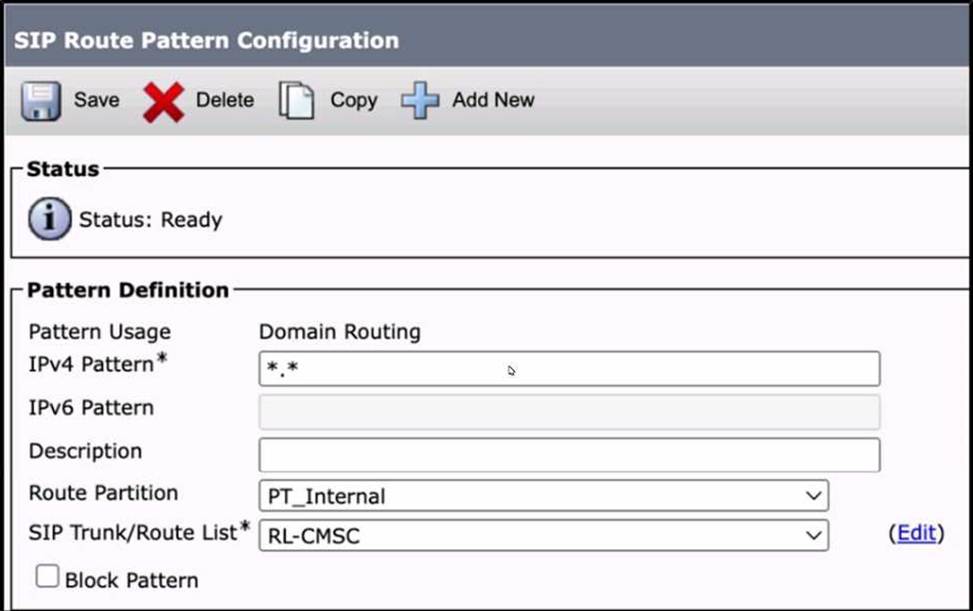

Refer to the exhibit.
A collaboration engineer investigates an issue where the user calls that match the local Jabber domain are routed back to Cisco UCM.
Which action resolves this problem?
- A . Check the check box to block the pattern for the local domain.
- B . Create another route SIP pattern for the local domain with the block pattern selected.
- C . Create a translation pattern to block calls to the local domain.
- D . Create a transformation pattern to block calls to the local domain.

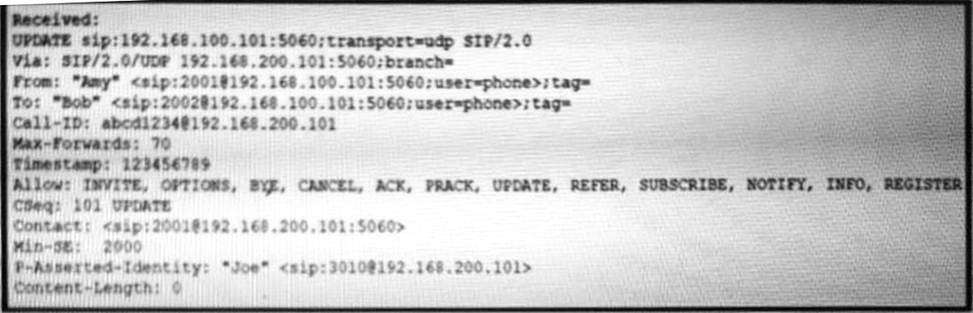

Refer to the exhibit.
An engineer is troubleshooting an issue where inbound Calls are failing after they transferred. The provider reports that update is not supported, and this is causing the calls to fail.
Which command should resolve this issue?
- A . no midcall-signaling passthru
- B . no update-callerId
- C . no contact-passig
- D . rel1xx require “100rel”
A user’s phone is already configured for Single Number Reach, and the user wants a feature to move an active call from a mobile phone to a desk phone and vice-versa.
As an administrator, which additional configuration should be made to fulfill the user’s request?
- A . Confirm that the desk phone is subscribed to Cisco Extension Mobility.
- B . Check to make sure that the Resume softkey option appears on the desk phone.
- C . Use Dialed Number Analyzer to determine if the user extension can dial the mobile phone.
- D . Add the mobility key to the softkey template that the desk phone is using.

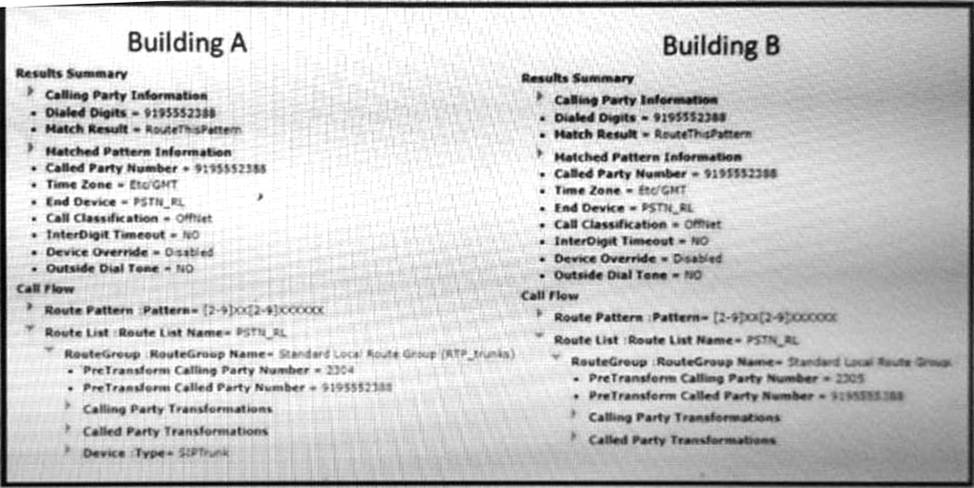

Refer to the exhibit.
A standard local route group is configured for long-distance calls. Calls from building A succeed, but calls from building B fail. On the system. Each building has is own device pool. The DNA tool is used to test the configuration.
How is this issue resolved?
- A . Change the partition of the route pattern
- B . Add a sip trunk inside route group Standard Local Route Group.
- C . Modify the route pattern to add a prefix of 91
- D . Add a local route group on the device pool configuration.

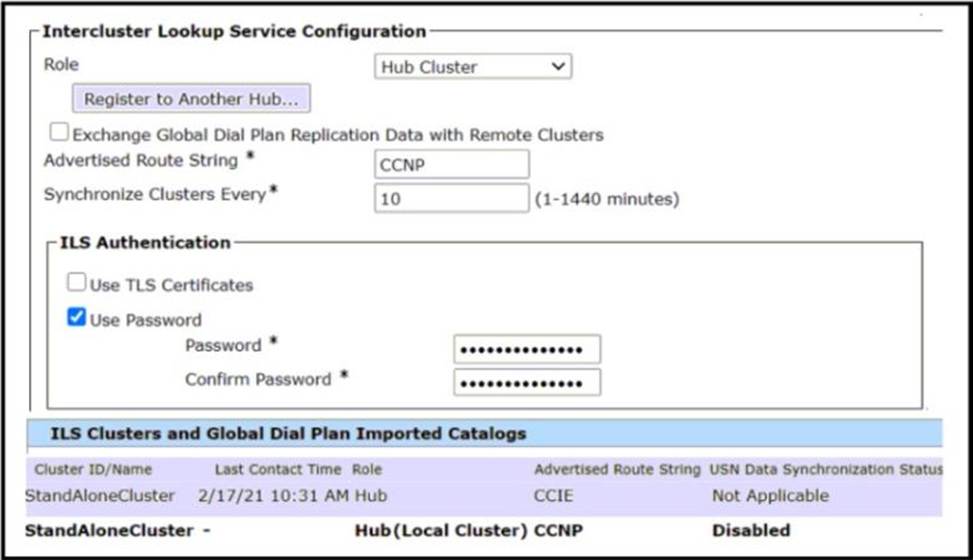

Refer to the exhibit.
ILS has been configured between two hubs using this configuration. The hubs appear to register successfully, but ILS is not functioning as expected.
Which configuration step is missing?
- A . A password has never been set for ILS.
- B . Use TLS Certificates must be selected.
- C . Trust certificates for ILS have not been installed on the clusters
- D . The Cluster IDs have not been set to unique values
