HOTSPOT

You have a Microsoft Teams Phone deployment.

You need to deploy a Teams device named Device1 trial meets the following requirements:

• Autodials a preconfigured call queue when the phone handset is picked up

• Displays the common area phone user interface

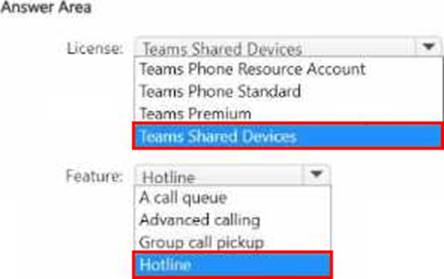

Which license should you assign to Device1. and which feature should you enable for Device1? To answer. select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

HOTSPOT

You have a Microsoft Teams Phone deployment.

You need to deploy a Teams device named Device1 trial meets the following requirements:

• Autodials a preconfigured call queue when the phone handset is picked up

• Displays the common area phone user interface

Which license should you assign to Device1. and which feature should you enable for Device1? To answer. select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

HOTSPOT

You have a Microsoft Teams Phone deployment.

You need to deploy a Teams device named Device1 trial meets the following requirements:

• Autodials a preconfigured call queue when the phone handset is picked up

• Displays the common area phone user interface

Which license should you assign to Device1. and which feature should you enable for Device1? To answer. select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

You have a PBX phone system that contains 100 handsets. The handsets support SIP registration. You implement a new Microsoft Teams Phone deployment that has SIP Gateway configured. You need to register the handsets with Teams.

What should you do?

Reveal Solution Hide Solution

HOTSPOT

You have a Microsoft Teams Phone deployment.

You need to ensure that incoming calls to a user are forwarded to a phone number of +15552224190 if the calls are NOT answered within 20 seconds.

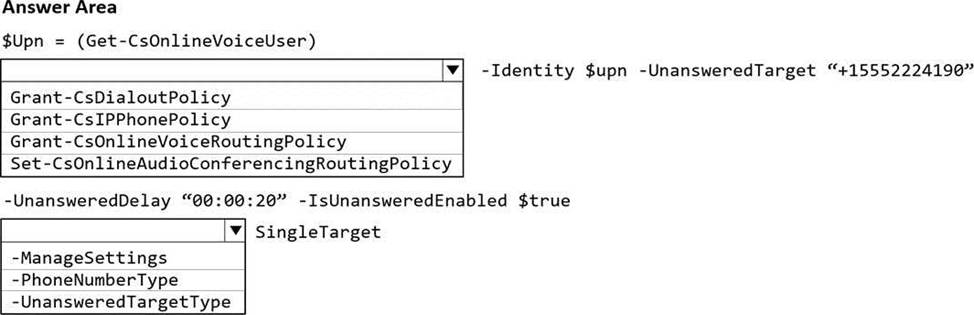

How should you complete the PowerShell script? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

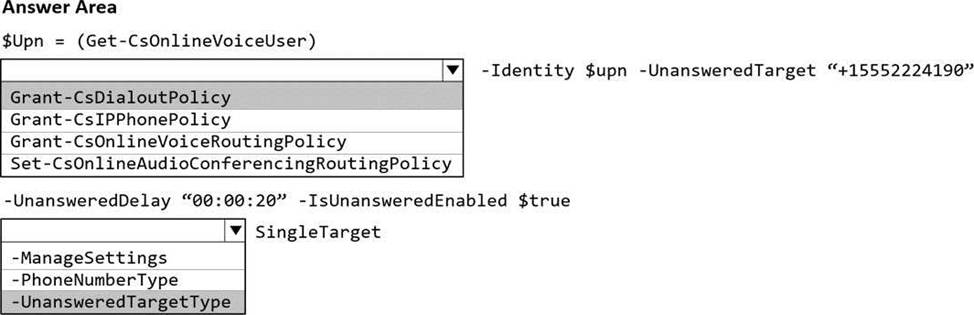

Box 1: Grant-CsDialoutPolicy

Least bad option perhaps, but it does not seem to be a good answer.

* Grant-CsDialoutPolicy

Use the Grant-CsDialoutPolicy cmdlet to assign the tenant global, a group of users, or a per-user outbound calling restriction policy to one or more users.

Syntax

Grant-CsDialoutPolicy

[[-Identity] <string>]

[[-PolicyName] <string>]

[-PassThru]

[-WhatIf]

[-Confirm]

[<CommonParameters>]

Note: Set-CsUserCallingSettings would be a good answer, but it is not an option.

This cmdlet will set the call forwarding, simultaneous ringing and call group settings for the specified user.

-UnansweredTargetType

The unanswered target type. Supported values are Voicemail, SingleTarget, MyDelegates and Group.

SingleTarget is used when forwarding the unanswered call to another user or phone number. MyDelegates is used when forwarding the unanswered call to the users’s delegates. Group is used when forwarding the unanswered call to the specified user’s call group. Box 2: -UnansweredTargetType

Incorrect:

* Grant-CsIPPhonePolicy, Skype for Business Server 2019

Use the Grant-CsIPPhonePolicy cmdlet to assign an Internet Protocol (IP) phone policy to a user or a group of users. IP phone policies determine the features of Microsoft Teams, Skype for Business Online, or Skype for Business Server 2019 that are available to users. For example, you might enable the Better Together Over Ethernet feature for some users while disabling it for others.

Syntax

Grant-CsIPPhonePolicy, Skype for Business Server 2019

[[-Identity] <UserIdParameter>]

[-PolicyName] <String>

[-Tenant <Guid>]

[-DomainController <Fqdn>]

[-PassThru]

[-WhatIf]

[-Confirm]

[<CommonParameters>]

* Grant-CsOnlineVoiceRoutingPolicy

Assigns a per-user online voice routing policy to one user, a group of users, or sets the Global policy instance. Online voice routing policies manage online PSTN usages for Phone System users.

Syntax

Grant-CsOnlineVoiceRoutingPolicy

[[-Identity] <string>]

[[-PolicyName] <string>]

[-PassThru]

[-WhatIf]

[-Confirm]

[<CommonParameters>]

* Set-CsOnlineAudioConferencingRoutingPolicy

Reference:

https://learn.microsoft.com/en-us/powershell/module/teams/set-csusercallingsettings

https://learn.microsoft.com/en-us/powershell/module/skype/grant-csonlinevoiceroutingpolicy

HOTSPOT

Your company has a Microsoft Teams Phone deployment and the following departments;

• Sales

• Research

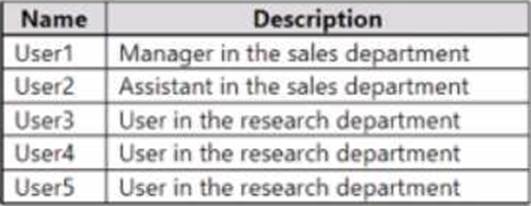

You have the users shown in the following table.

You need to meet the following requirements:

• User2 must be able to receive and make calls on behalf of User1.

• User4 and User5 must not hear a ring tone and must see only a banner in the Teams client when User3 receives a call.

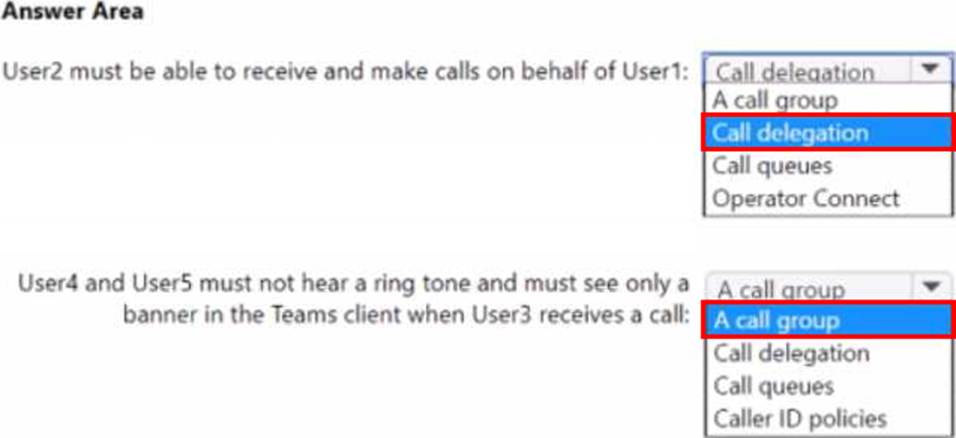

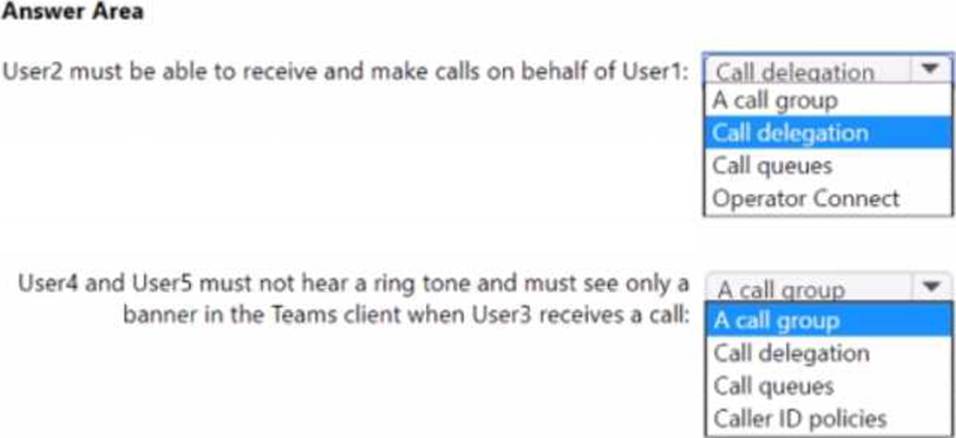

What should you configure to meet each requirement? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You need to create a new call queue to route calls to support agents. The support agents must be able to see their call queue history and the shared transcribed voicemail. The solution must minimize administrative effort.

Solution: You redirect calls for the call queue to a shared voicemail box.

Does this meet the goal?

Reveal Solution Hide Solution

You are migrating users from Microsoft Skype for Business to Microsoft Teams.

You plan to create an auto attendant that can be used by all the users during the migration.

You need to create the resource account for the auto attendant

What should you use?

Reveal Solution Hide Solution

DRAG DROP

You have a Microsoft Teams Phone deployment.

When you attempt to deploy a Session Border Controller (SBC) named sfac1xontoso.com. you receive the following error message: "We cant use the "SBCl-Contoso.com" domain as it hasn’t been set up in the organization. Try agaax. If you continue to have problems, contact Microsoft customer support."

You need to add the SBC to the tenant.

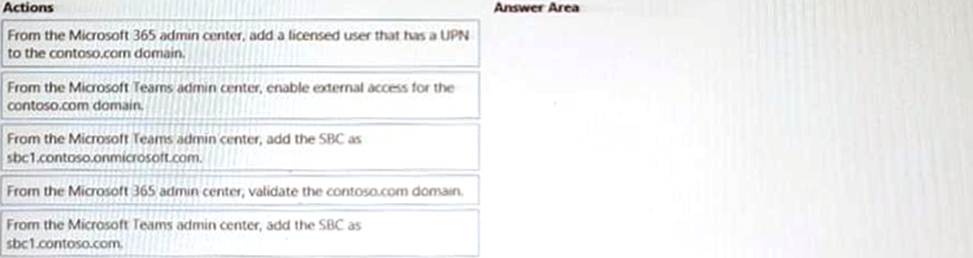

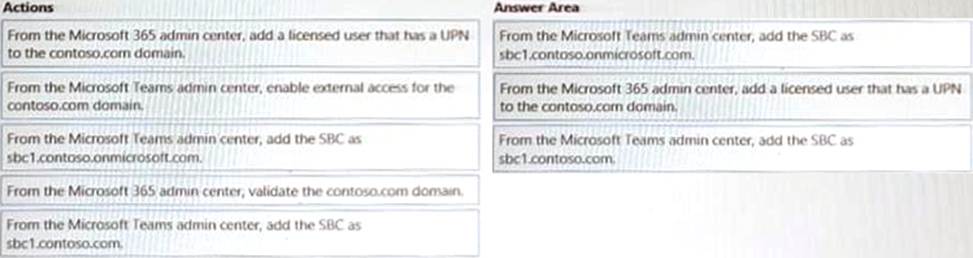

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

Correct Answer:

You are deploying Microsoft Skype for Business 3PIP phones to remote sites for use with Microsoft Teams.

You need to sign each 3PIP phone in to Teams.

What are two possible ways to achieve the goal? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution
