You have an Azure Web Application Firewall (WAF) policy in prevention mode that is associated to an Azure Front Door instance.

You need to configure the policy to meet the following requirements:

✑ Log all connections from Australia.

✑ Deny all connections from New Zealand.

✑ Deny all further connections from a network of 131.107.100.0/24 if there are more than 100 connections during one minute.

What is the minimum number of objects you should create?

Reveal Solution Hide Solution

Your company has offices in and Amsterdam. The company has an Azure subscription. Both offices connect to Azure by using a Site-to-Site VPN connection.

The office in Amsterdam uses resources in the North Europe Azure region. The office in New York uses resources in the East US Azure region.

You need to implement ExpressRoute circuits to connect each office to the nearest Azure region. Once the ExpressRoute circuits are connected, the on-premises computers in the Amsterdam office must be able to connect to the on-premises servers in the New York office by using the ExpressRoute circuits.

Which ExpressRoute option should you use?

Reveal Solution Hide Solution

HOTSPOT

You have an Azure Traffic Manager parent profile named TM1. TM1 has two child profiles named TM2 and TM3.

TM1 uses the performance traffic-routing method and has the endpoints shown in the following table.

TM2 uses the weighted traffic-routing method with MinChildEndpoint = 2 and has the endpoints shown in the following table.

TM3 uses priority traffic-routing method and has the endpoints shown in the following table.

The App2, App4, and App6 endpoints have a degraded monitoring status.

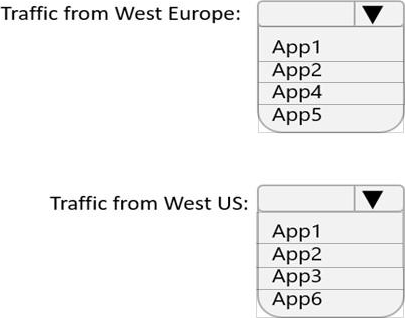

To which endpoint is traffic directed? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Reference: https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-nested-profiles

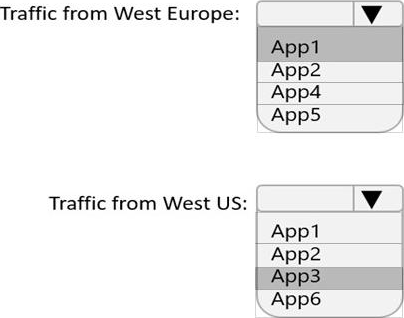

Traffic from West Europe:

Basedd on TM1 table, West Europe will trigger TM2. However, as the MinChildEndpoint is set to 2, and App4 is degraded (down), the entire TM2 will not be considered available.

This goes back to the origin TM1 that uses performance traffic-routing method, which means the closest location is App1 and naturally be the next best performance instance. Hence, Answer = App1

Traffic from West US:

Based on TM1 table, West US will trigger TM3. However, both App2 and App6 were degraded (down), so none of them can be considered.

This goes back to the original TM1 that uses performance traffic-routing method, from TM1, the other 2 US locations would be App2 and App3. But App2 we know it’s already degraded (unavailable), hence the only option would be App3. Answer = App3

You have an Azure subscription that contains multiple virtual machines in the West US Azure region.

You need to use Traffic Analytics.

Which two resources should you create? Each correct answer presents part of the solution. NOTE: Each correct answer selection is worth one point. (Choose two.)

Reveal Solution Hide Solution

Azure virtual networks in the East US Azure region as shown in the following table.

The virtual networks are peered to one another. Each virtual network contains four subnets.

You plan to deploy a virtual machine named VM1 that will inspect and route traffic between all the subnets on both the virtual networks.

What is the minimum number of IP addresses that you must assign to VM1?

Reveal Solution Hide Solution

HOTSPOT

You are implementing the virtual network requirements for VM Analyze.

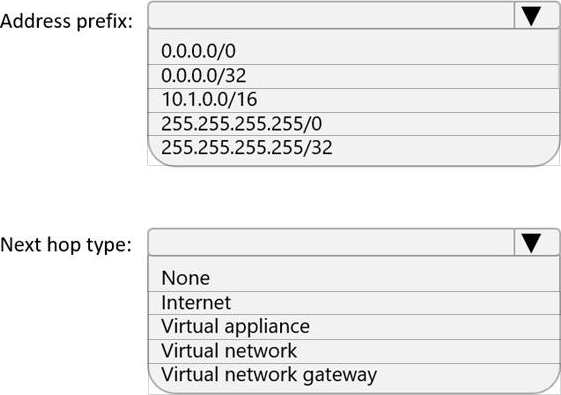

What should you include in a custom route that is linked to Subnet2? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

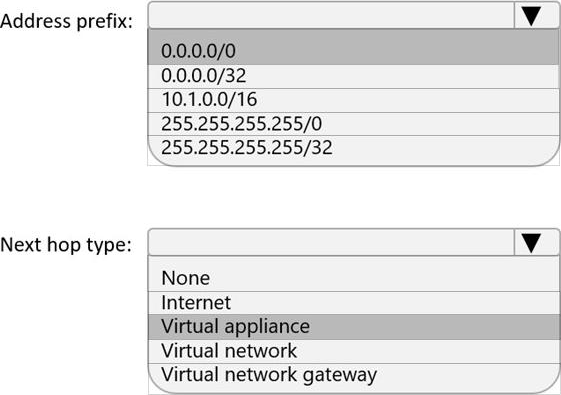

Correct Answer:

Reference: https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-udr-overview

You have an Azure subscription that contains the following resources:

✑ A virtual network named Vnet1

✑ Two subnets named subnet1 and AzureFirewallSubnet

✑ A public Azure Firewall named FW1

✑ A route table named RT1 that is associated to Subnet1

✑ A rule routing of 0.0.0.0/0 to FW1 in RT1

After deploying 10 servers that run Windows Server to Subnet1, you discover that none of the virtual machines were activated.

You need to ensure that the virtual machines can be activated.

What should you do?

Reveal Solution Hide Solution

Your company has an on-premises network and three Azure subscriptions named Subscription1, Subscription2, and Subscription3.

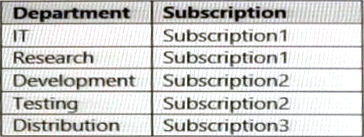

The departments at the company use the Azure subscriptions as shown in the following table.

All the resources in the subscriptions are in either the West US Azure region or the West US 2 Azure region.

You plan to connect all the subscriptions to the on-premises network by using ExpressRoute.

What is the minimum number of ExpressRoute circuits required?

Reveal Solution Hide Solution

DRAG DROP

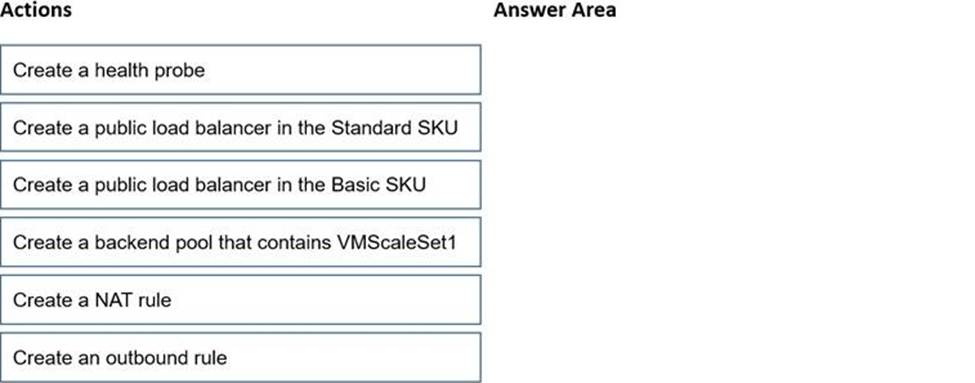

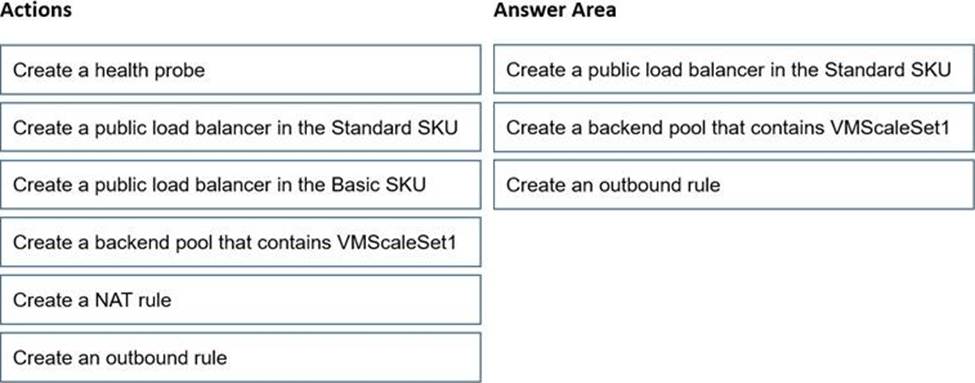

You need to implement outbound connectivity for VMScaleSet1. The solution must meet the virtual networking requirements and the business requirements.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order. T

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Reference:

https://docs.microsoft.com/en-us/azure/load-balancer/skus

https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-outbound-connections#outboundrules

Topic 2, Contoso Case Study 2

Overview

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study

To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab. note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Existing Environment:

Azure Network Infrastructure

Contoso has an Azure Active Directory (Azure AD) tenant named contoso.com.

The Azure subscription contains the virtual networks shown in the following table.

Vnet1 contains a virtual network gateway named GW1.

Azure Virtual Machines

The Azure subscription contains virtual machines that run Windows Server 2019 as shown in the following table.

The NSGs are associated to the network interfaces on the virtual machines. Each NSG has one custom security rule that allows RDP connections from the internet. The firewall on each virtual machine allows ICMP traffic.

An application security group named ASG1 is associated to the network interface of VM1.

Azure Private DNS Zones

The Azure subscription contains the Azure private DNS zones shown in the following table.

Zone1.contoso.com has the virtual network links shown in the following table.

Other Azure Resources

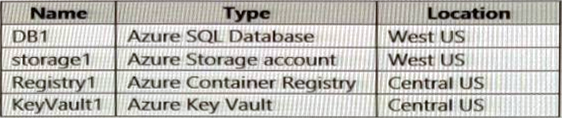

The Azure subscription contains additional resources as shown in the following table.

Requirements:

Virtual Network Requirements

Contoso has the following virtual networks requirements:

* Create a virtual network named Vnet6 in West US that will contain the following resources and configurations:

Two container groups that connect to Vnet6

Three virtual machines that connect to Vnet6

Allow VPN connections to be established to Vnet6

Allow the resources in Vnet6 to access KeyVault1, DB1, and Vnet1 over the Microsoft backbone network

* The virtual machines in Vnet4 and Vnet5 must be able to communicate over the Microsoft backbone network.

* A virtual machine named VM-Analyze will be deployed to Subnet1. VM-Analyze must inspect the outbound network traffic from Subnet2 to the internet.

Network Security Requirements

Contoso has the following network security requirements:

* Configure Azure Active Directory (Azure AD) authentication for Point-to-Site (P2S) VPN users.

* Enable NSG flow logs for NSG3 and NSG4.

* Create an NSG named NSG10 that will be associated to Vnet1/Subnet1 and will have the custom inbound security rules shown in the following table.

* Create an NSG named NSG11 that will be associated to Vnet1/Subnet2 and will have the custom outbound security rules shown in the following table.

HOTSPOT

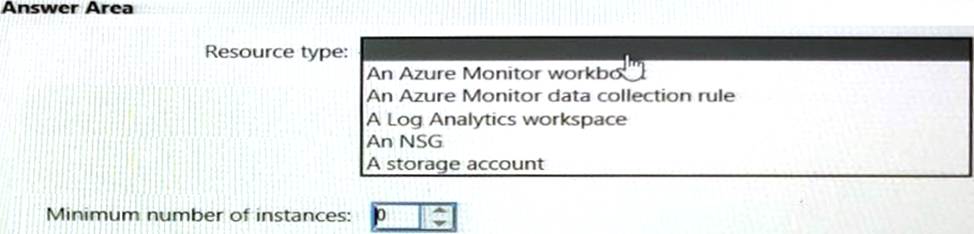

You need to meet the network security requirements for the NSG flow logs.

Which type of resource do you need, and how many instances should you create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

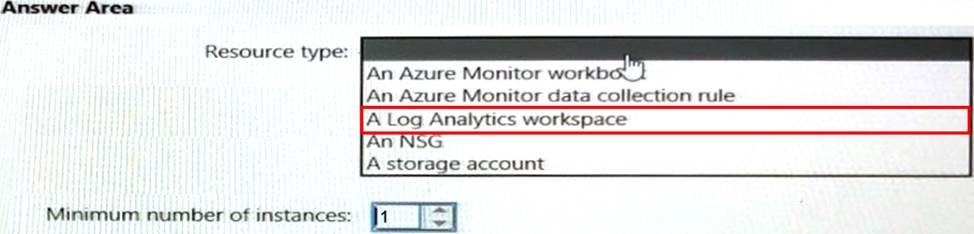

Correct Answer:
