You have an Azure subscription that is linked to an Azure Active Directory (Azure AD) tenant named contoso.onmicrosoft.com.

The subscription contains the following resources:

* An Azure App Service app named App1

* An Azure DNS zone named contoso.com

* An Azure private DNS zone named private.contoso.com

* A virtual network named Vnet1

You create a private endpoint for App1. The record for the endpoint is registered automatically in Azure DNS.

You need to provide a developer with the name that is registered in Azure DNS for the private endpoint.

What should you provide?

Reveal Solution Hide Solution

You need to configure the default route in Vnet2 and Vnet3. The solution must meet the virtual networking requirements.

What should you use to configure the default route?

Reveal Solution Hide Solution

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have two Azure virtual networks named Vnet1 and Vnet2.

You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.

You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit.

Vnet2 can use the remote gateway.

You discover that Client1 cannot communicate with Vnet2.

You need to ensure that Client1 can communicate with Vnet2.

Solution: You reset the gateway of Vnet1.

Does this meet the goal?

Reveal Solution Hide Solution

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have two Azure virtual networks named Vnet1 and Vnet2.

You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.

You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit.

Vnet2 can use the remote gateway.

You discover that Client1 cannot communicate with Vnet2.

You need to ensure that Client1 can communicate with Vnet2.

Solution: You enable BGP on the gateway of Vnet1.

Does this meet the goal?

Reveal Solution Hide Solution

You have a website that uses an FQDN of www.contoso.com. The DNS record tor www.contoso.com resolves to an on-premises web server.

You plan to migrate the website to an Azure web app named Web1. The website on Web1 will be published by using an Azure Front Door instance named ContosoFD1. You build the website on Web1.

You plan to configure ContosoFD1 to publish the website for testing.

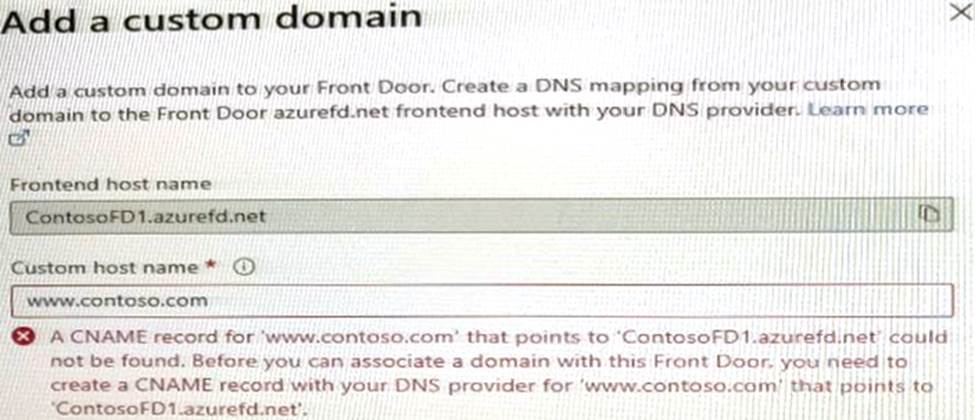

When you attempt to configure a custom domain for www.contoso.com on ContosoFD1, you receive the error message shown in the exhibit.

You need to test the website and ContosoFD1 without affecting user access to the on-premises web server.

Which record should you create in the contoso.com DNS domain?

Reveal Solution Hide Solution

DRAG DROP

You have an Azure subscription that contains the resources shown in the following table.

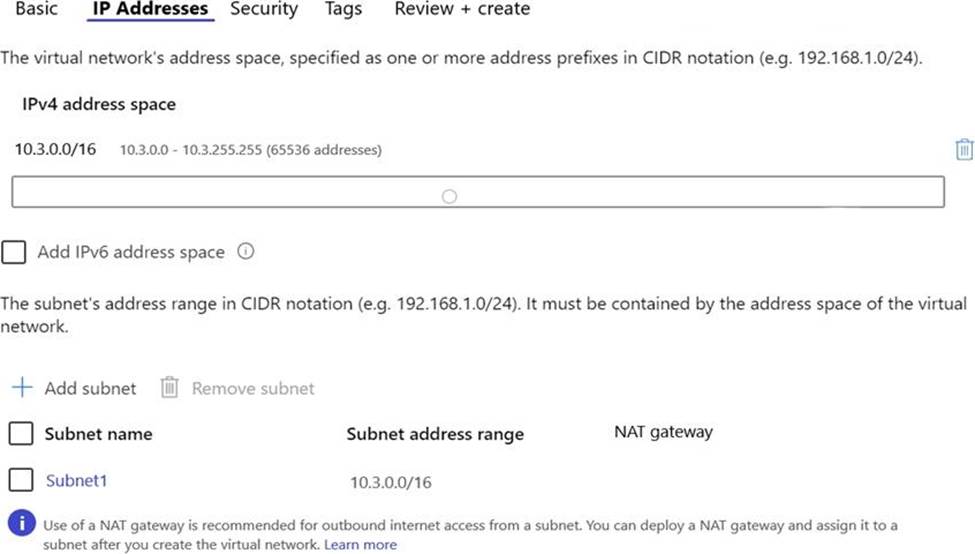

The IP Addresses settings for Vnet1 are configured as shown in the exhibit.

You need to ensure that you can integrate WebApp1 and Vnet1.

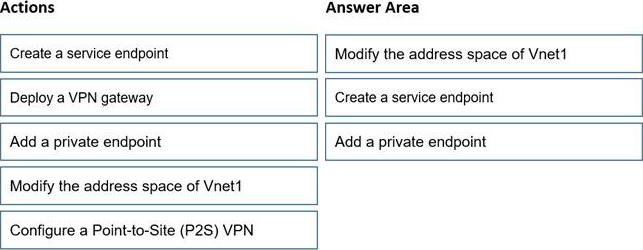

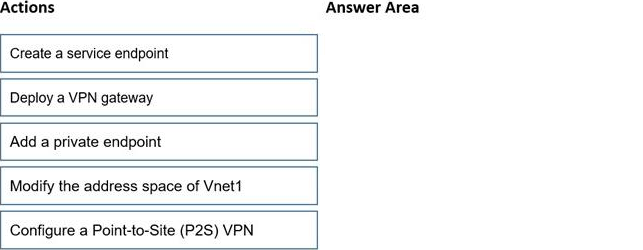

Which three actions should you perform in sequence before you can integrate WebApp1 and Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

To integrate WebApp1 with Vnet1, the following actions need to be performed in sequence:

Modify the address space of Vnet1:

The address space for Vnet1 currently is 10.3.0.0/16, and the subnet also has the same address range which leaves no room for further subnetting. You would need to create a smaller subnet within this address space for the integration with WebApp1.

Create a service endpoint:

Service endpoints are needed to secure your critical Azure service resources to only your virtual networks. By enabling a service endpoint, traffic from your VNet to the Azure service always remains on the Microsoft Azure backbone network.

Add a private endpoint:

A private endpoint is a network interface that connects you privately and securely to a service powered by Azure Private Link. The private endpoint uses an IP address from your VNet, effectively bringing the service into your VNet.

These actions would enable private connectivity between WebApp1 and Vnet1, ensuring that the traffic between your web app and the virtual network is kept on the Azure backbone network, secure from the public internet.

HOTSPOT

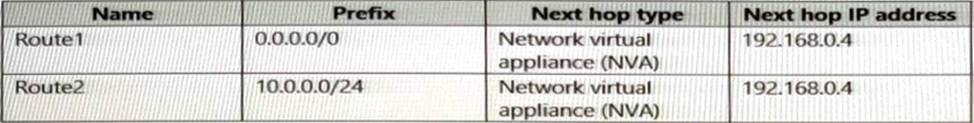

You configure a route table named RT1 that has the routes shown in the following table.

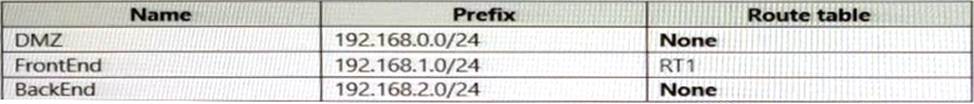

You have an Azure virtual network named Vnet1 that has the subnets shown in the following table.

You have the resources shown in the following table.

Vnet1 connects to an ExpressRoute circuit.

The on-premises router advertises the following routes:

* 0.0.0.0/0

* 10.0.0.0/16

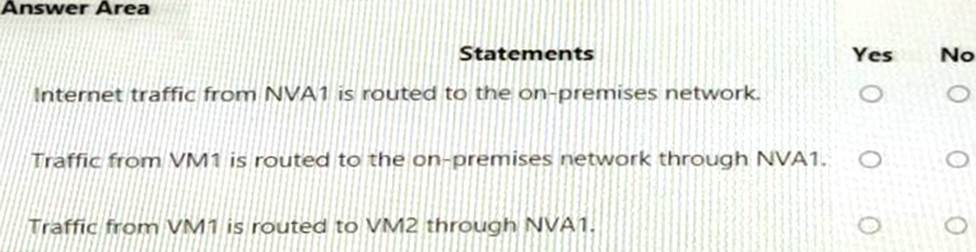

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

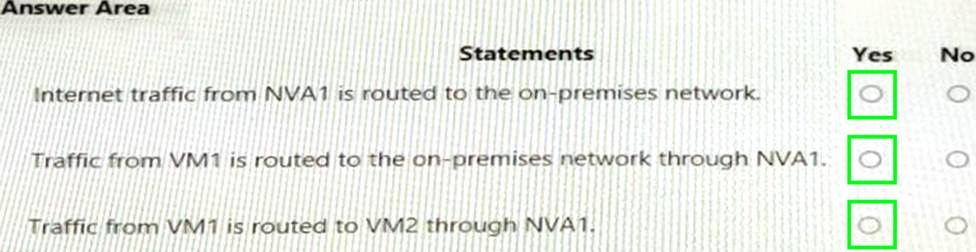

Correct Answer:

What should you implement to meet the virtual network requirements for the virtual machines that connect to Vnet4 and Vnet5?

Reveal Solution Hide Solution

HOTSPOT

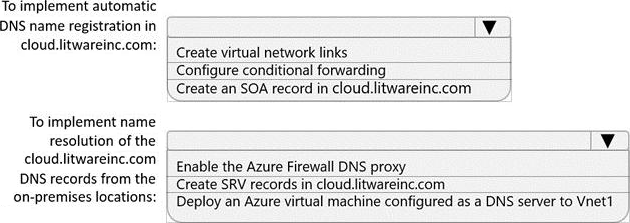

You need to implement name resolution for the cloud.liwareinc.com. The solution must meet the networking requirements.

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

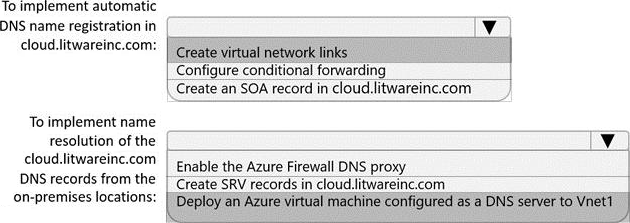

Correct Answer:

Explanation:

Reference:

https://docs.microsoft.com/en-us/azure/dns/private-dns-autoregistration

https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-name-resolution-for-vms-and-role-instances

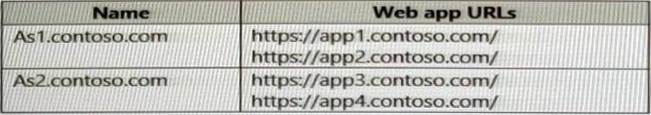

You have two Azure App Service instances that host the web apps shown the following table.

You deploy an Azure application gateway that has one public frontend IP address and two backend pools.

You need to publish all the web apps to the application gateway. Requests must be routed based on the HTTP host headers.

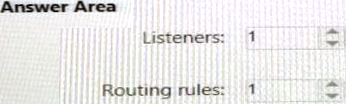

What is the minimum number of listeners and routing rules you should configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution
