HOTSPOT

You have an Azure AD tenant that is linked to the subscriptions shown in the following table.

You have the resource groups shown In the following table.

You assign roles to users as shown in the following table.

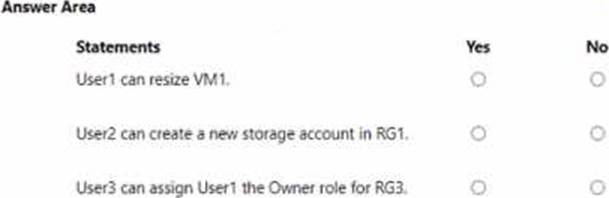

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

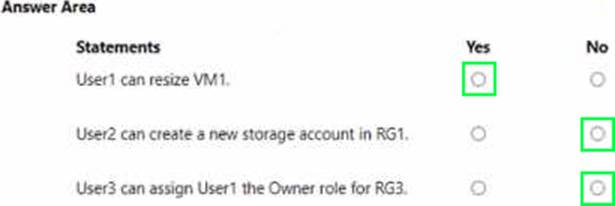

Correct Answer:

Explanation:

User1 can resize VM1. Yes, this is correct. According to the tables, User1 is assigned the Contributor role at the subscription level for Sub1. The Contributor role grants full access to manage all resources in the subscription, including the ability to resize virtual machines1. Therefore, User1 can resize VM1, which is a resource in RG1 under Sub1.

User2 can create a new storage account in RG1. No, this is not correct. According to the tables, User2 is assigned the Reader role at the resource group level for RG1. The Reader role grants read-only access to view existing resources in the resource group, but not to create, update, or delete any resources2. Therefore, User2 cannot create a new storage account in RG1.

User3 can assign User1 the Owner role for RG3. No, this is not correct. According to the tables, User3 is assigned the Storage Account Contributor role at the resource group level for RG3. The Storage Account Contributor role grants full access to manage storage accounts and their data in the resource group, but not to assign roles to other users3. To assign roles to other users, User3 would need a role that has Microsoft.Authorization/roleAssignments/write permissions, such as User Access Administrator or Owner4. Therefore, User3 cannot assign User1 the Owner role for RG3.

HOTSPOT

You have an Azure subscription that contains the virtual networks shown in the following table.

The subscription contains the virtual machines shown in the following table.

The subscription contains the Azure App Service web apps shown in the following table.

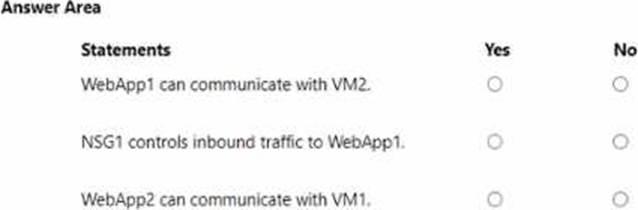

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

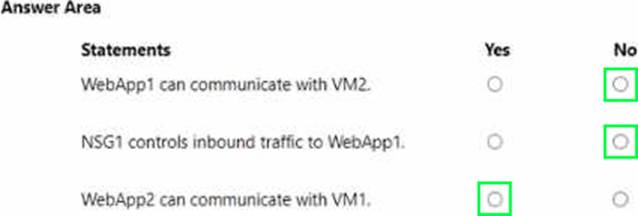

Correct Answer:

Explanation:

WebApp1 can communicate with VM2. No, this is not correct. According to the tables, WebApp1 is integrated with VNet1, which has a peering connection with VNet2. However, VM2 is in VNet3, which is not peered with VNet1 or VNet2. Therefore, WebApp1 cannot communicate with VM2 across different virtual networks1.

NSG1 controls inbound traffic to WebApp1. No, this is not correct. According to the tables, NSG1 is associated with Subnet1 in VNet1, which is integrated with WebApp1. However, network security groups only control outbound traffic from App Service apps to virtual networks, not inbound traffic to App Service apps from virtual networks2. Therefore, NSG1 does not control inbound traffic to WebApp1.

WebApp2 can communicate with VM1. Yes, this is correct. According to the tables, WebApp2 is integrated with VNet3, which has a peering connection with VNet2. VM1 is in Subnet2 in VNet2, which has a network security group named NSG2 that allows inbound traffic from any source on port

You are planning the move of App1 to Azure.

You create a network security group (NSG).

You need to recommend a solution to provide users with access to App1.

What should you recommend?

Reveal Solution Hide Solution

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure virtual machine named VM1. VM1 was deployed by using a custom Azure

Resource Manager template named ARM1.json.

You receive a notification that VM1 will be affected by maintenance.

You need to move VM1 to a different host immediately.

Solution: From the Update management blade, you click Enable.

Does this meet the goal?

Reveal Solution Hide Solution

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure Active Directory (Azure AD) tenant named contoso.com.

You have a CSV file that contains the names and email addresses of 500 external users.

You need to create a guest user account in contoso.com for each of the 500 external users.

Solution: From Azure AD in the Azure portal, you use the Bulk create user operation.

Does this meet the goal?

Reveal Solution Hide Solution

You plan to deploy several Azure virtual machines that will run Windows Server 2022 in a virtual machine scale set by using an Azure Resource Manager template.

You need to ensure that NGINX is available on all the virtual machines after they are deployed.

What should you use?

Reveal Solution Hide Solution

You develop the following Azure Resource Manager (ARM) template to create a resource group and deploy an Azure Storage account to the resource group.

Which cmdlet should you run to deploy the template?

Reveal Solution Hide Solution

You have an Azure App Services web app named App1.

You plan to deploy App1 by using Web Deploy.

You need to ensure that the developers of App1 can use their Azure Active Directory (Azure AD) credentials to deploy content to App1. The solution must use the principle of least privilege.

What should you do?

Reveal Solution Hide Solution

HOTSPOT

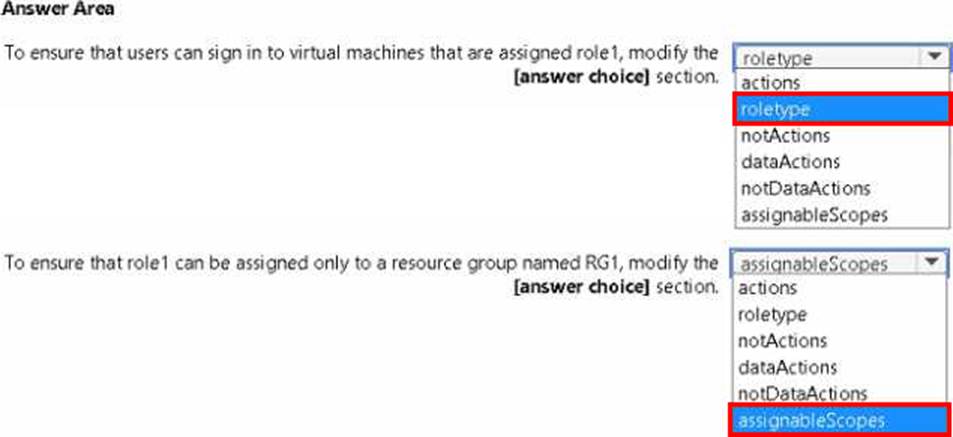

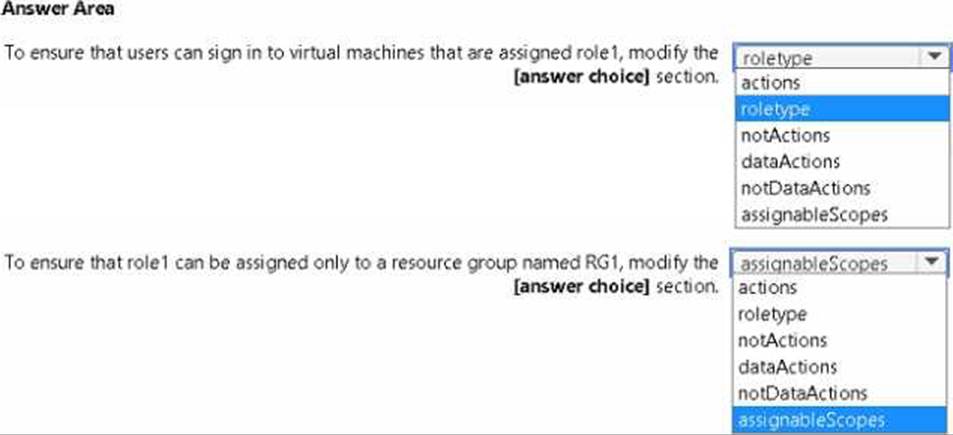

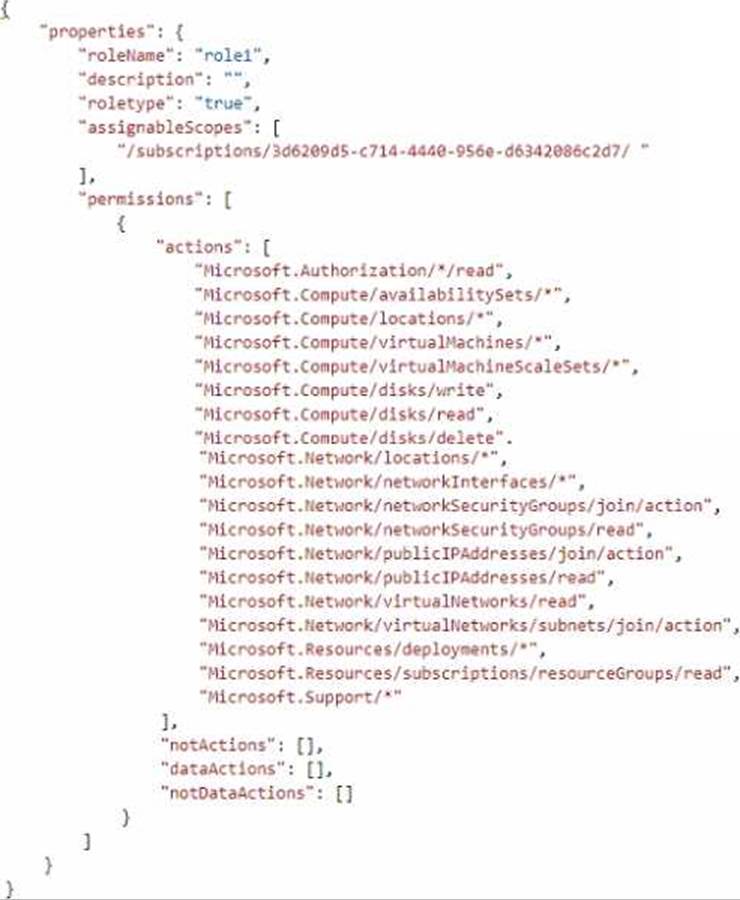

You configure the custom role shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

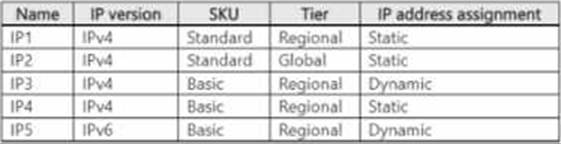

You have an Azure subscription that has the public IP addresses shown in the following table.

You plan to deploy an Azure Bastion Basic SKU host named Bastion1.

Which IP addresses can you use for Bastion1?

Reveal Solution Hide Solution
