HOTSPOT

You need to meet the connection requirements for the New York office.

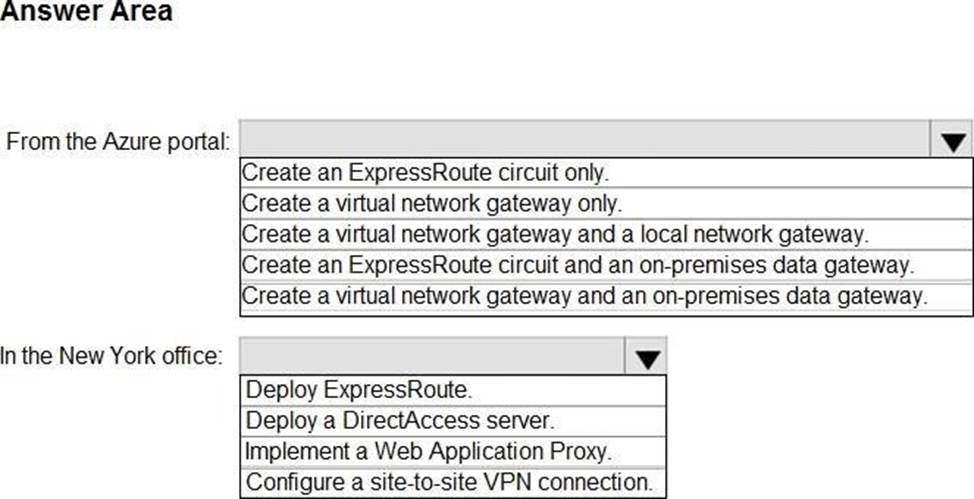

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Box 1: Create a virtual network gateway and a local network gateway.

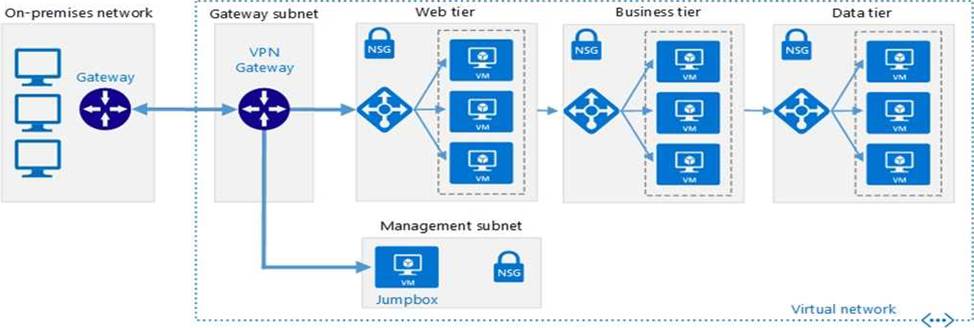

Azure VPN gateway. The VPN gateway service enables you to connect the VNet to the on-premises network through a VPN appliance. For more information, see Connect an on-premises network to a Microsoft Azure virtual network. The VPN gateway includes the following elements:

Virtual network gateway. A resource that provides a virtual VPN appliance for the VNet. It is responsible for routing traffic from the on-premises network to the VNet.

Local network gateway. An abstraction of the on-premises VPN appliance. Network traffic from the cloud application to the on-premises network is routed through this gateway.

Connection. The connection has properties that specify the connection type (IPSec) and the key shared with the on-premises VPN appliance to encrypt traffic.

Gateway subnet. The virtual network gateway is held in its own subnet, which is subject to various requirements, described in the Recommendations section below.

Box 2: Configure a site-to-site VPN connection

On premises create a site-to-site connection for the virtual network gateway and the local network gateway.

Scenario: Connect the New York office to VNet1 over the Internet by using an encrypted connection.

Incorrect Answers:

Azure ExpressRoute: Established between your network and Azure, through an ExpressRoute partner.

This connection is private. Traffic does not go over the internet.

Reference: https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/hybrid-networking/vpn

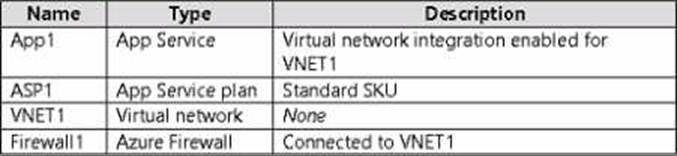

You have an Azure subscription that contains the resources shown in the following table.

You need to manage outbound traffic from VNET1 by using Firewall1.

What should you do first?

Reveal Solution Hide Solution

You have an Azure virtual network named VNet1 that contains a subnet named Subnet1. Subnet1 contains three Azure virtual machines. Each virtual machine has a public IP address.

The virtual machines host several applications that are accessible over port 443 to user on the Internet.

Your on-premises network has a site-to-site VPN connection to VNet1.

You discover that the virtual machines can be accessed by using the Remote Desktop Protocol (RDP) from the Internet and from the on-premises network.

You need to prevent RDP access to the virtual machines from the Internet, unless the RDP connection is established from the on-premises network. The solution must ensure that all the applications can still be accesses by the Internet users.

What should you do?

Reveal Solution Hide Solution

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, those questions will not appear in the review screen.

You have a Microsoft Entra tenant named contoso.com.

You have a CSV file that contains the names and email addresses of 500 external users.

You need to create a guest user account in contoso.com for each of the 500 external users.

Solution; From Microsoft Entra ID in the Azure portal, you use the Bulk create user operation.

Does this meet the goal?

Reveal Solution Hide Solution

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an app named App1 that is installed on two Azure virtual machines named VM1 and VM2.

Connections to Appl are managed by using an Azure Load Balancer.

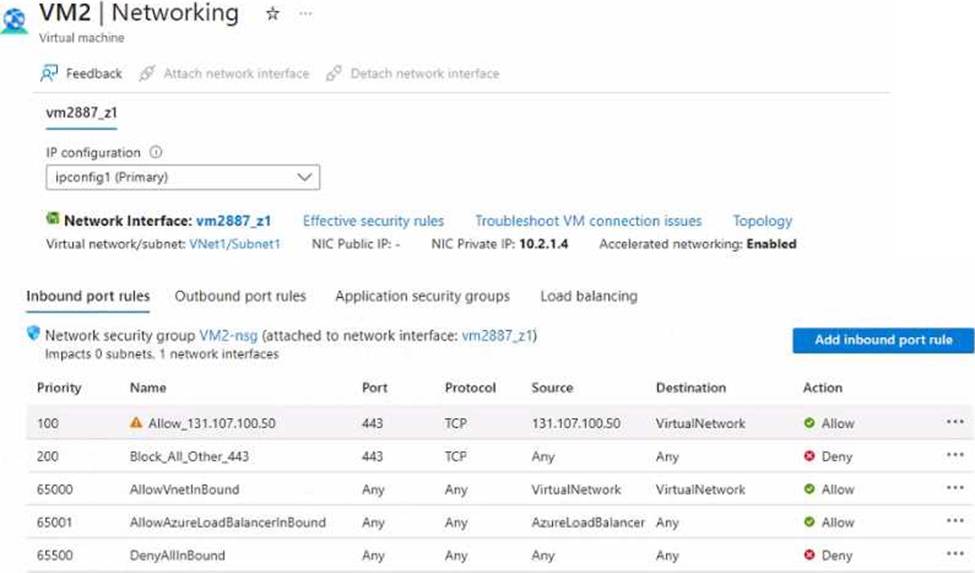

The effective network security configurations for VM2 are shown in the following exhibit.

You discover that connections 10 Appl from 131.107.100.50 over TCP port 443 fail.

You verity that the Load Balancer rules are configured correctly.

You need to ensure that connections to Appl can be established successfully from 131.107.100.50 over TCP port 443.

Solution: You create an inbound security rule that allows any traffic from the Azure load Balancer source and has a priority of 150.

Does this meet the goal?

Reveal Solution Hide Solution

HOTSPOT

You have an Azure Active Directory (Azure AD) tenant named contoso.com.

You have two external partner organizations named fabrilcam.com and litwareinc.com.

FabtAam.com is configured as a connected organization.

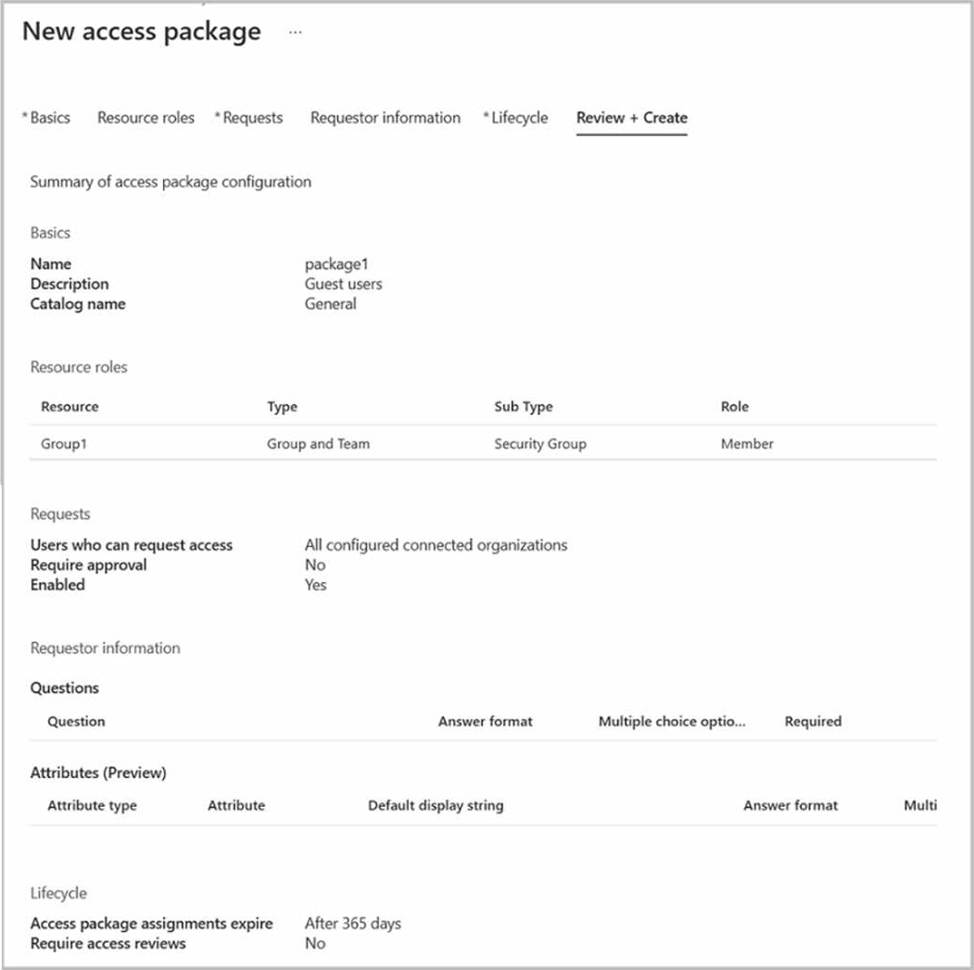

You create an access package as shown in the Access package exhibit. (Click the Access package lab.)

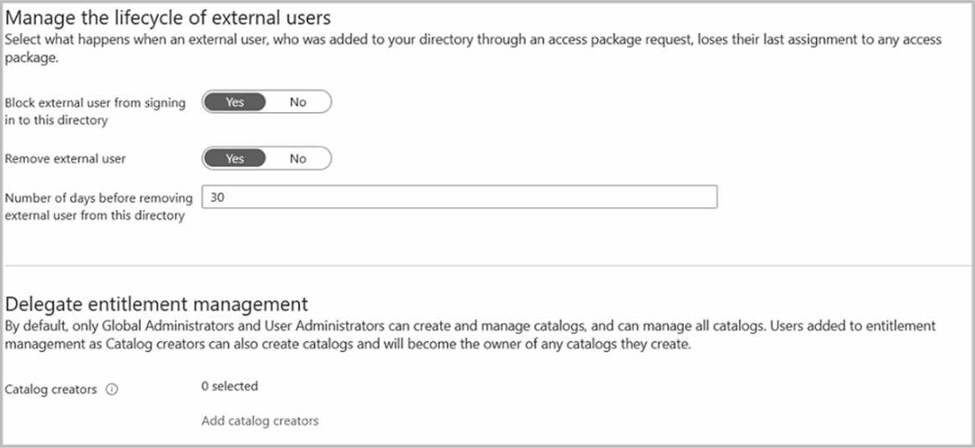

You configure the external user lifecycle settings as shown in the Lifecycle exhibit. (Click the lifecycle tab)

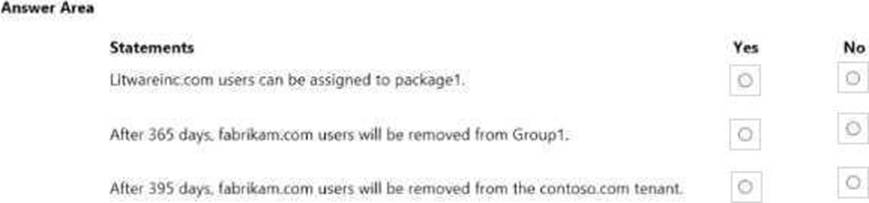

For each of the following statements, select Yes if the statement is true Otherwise, select No Note: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

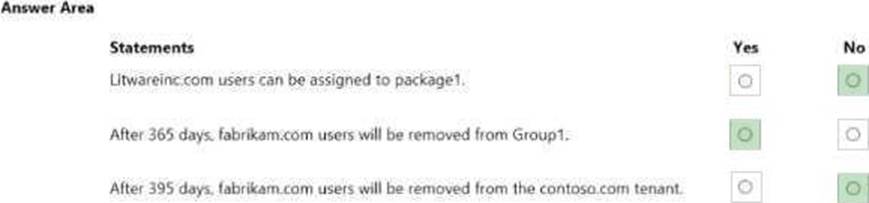

Litwareinc.com users can be assigned to package1. = No

After 365 days, fabrikam.com users will be removed from Group1. = Yes

After 395 days, fabrikam.com users will be removed from the contoso.com tenant = No

Litwareinc.com users cannot be assigned to package1 because they are not a connected organization in the contoso.com tenant. Only users from connected organizations can request access packages that are configured for external users1

Fabrikam.com users will be removed from Group1 after 365 days because the access package has an expiration policy of 365 days for external users. This means that the access assignments for external users will end after 365 days, unless they are renewed or extended2

Fabrikam.com users will not be removed from the contoso.com tenant after 395 days because the external user lifecycle settings have a deletion policy of 30 days after blocking. This means that external users will be blocked from signing in after 365 days of inactivity, and then deleted after another 30 days. Therefore, the total time before deletion is 395 days of inactivity, not 395 days from the date of assignment3

HOTSPOT

You have an Azure subscription that contains a storage account named storage 1. The storage1 account contains a container named container1.

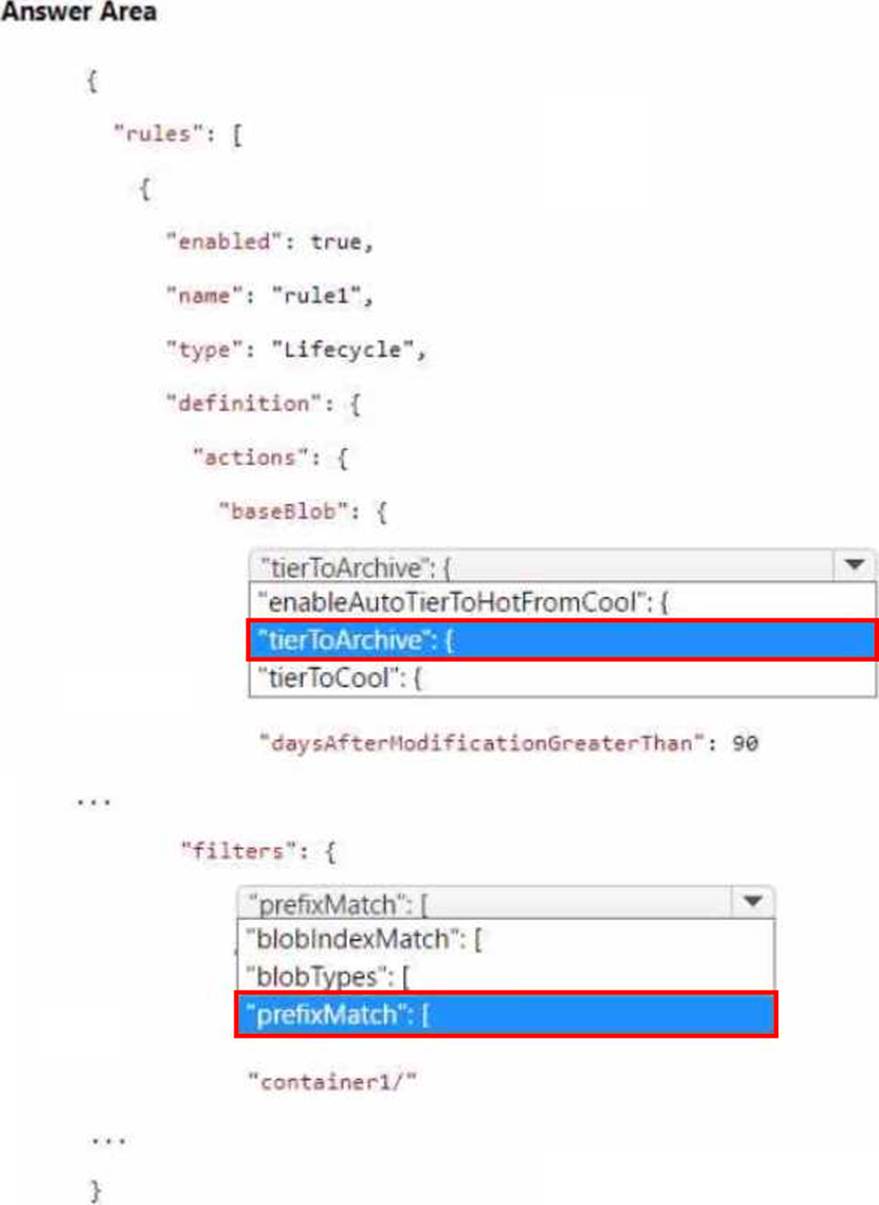

You need to create a lifecycle management rule for storage1 that will automatically move the blobs in contained to the lowest-cost tier after 90 days.

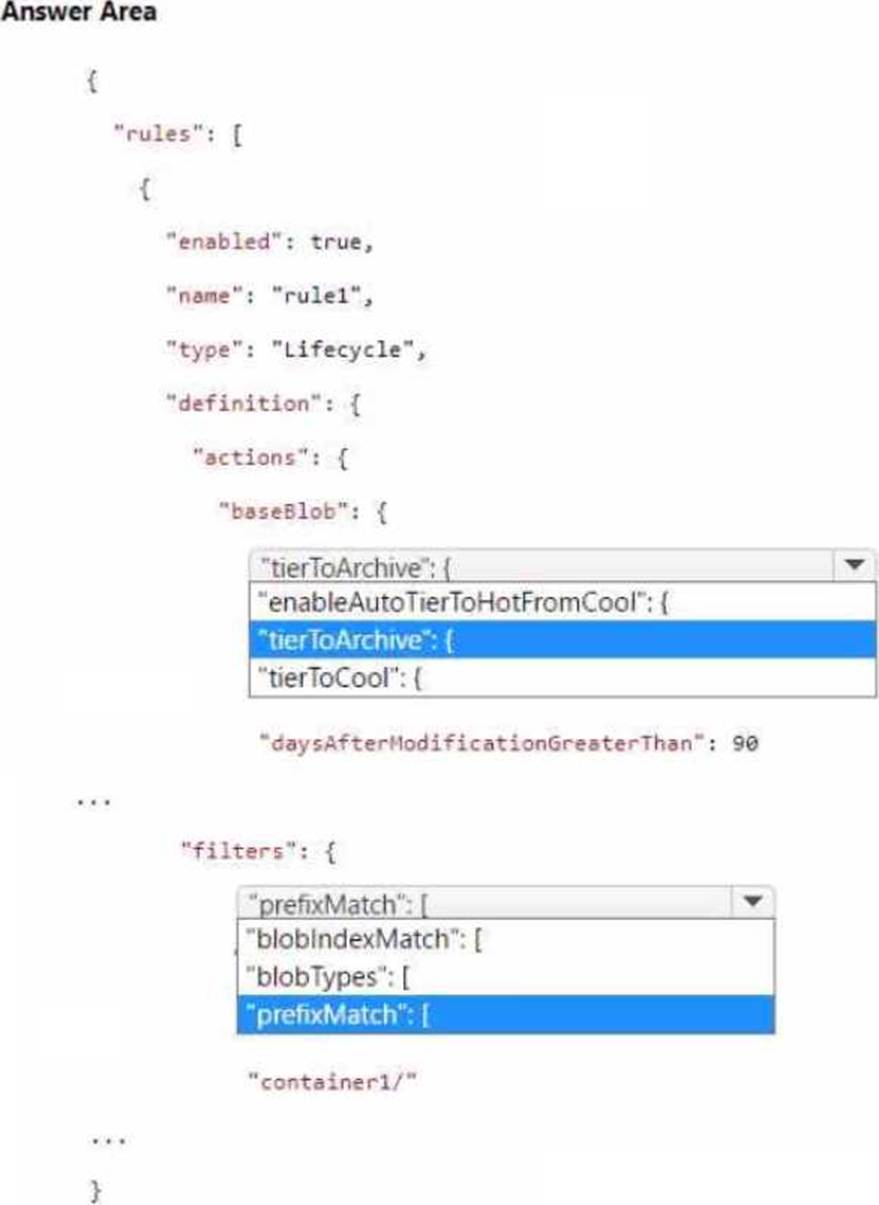

How should you complete the rule? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

HOTSPOT

You have an Azure subscription that contains an Azure Storage account named storageaccount1.

You export storageaccount1 as an Azure Resource Manager template.

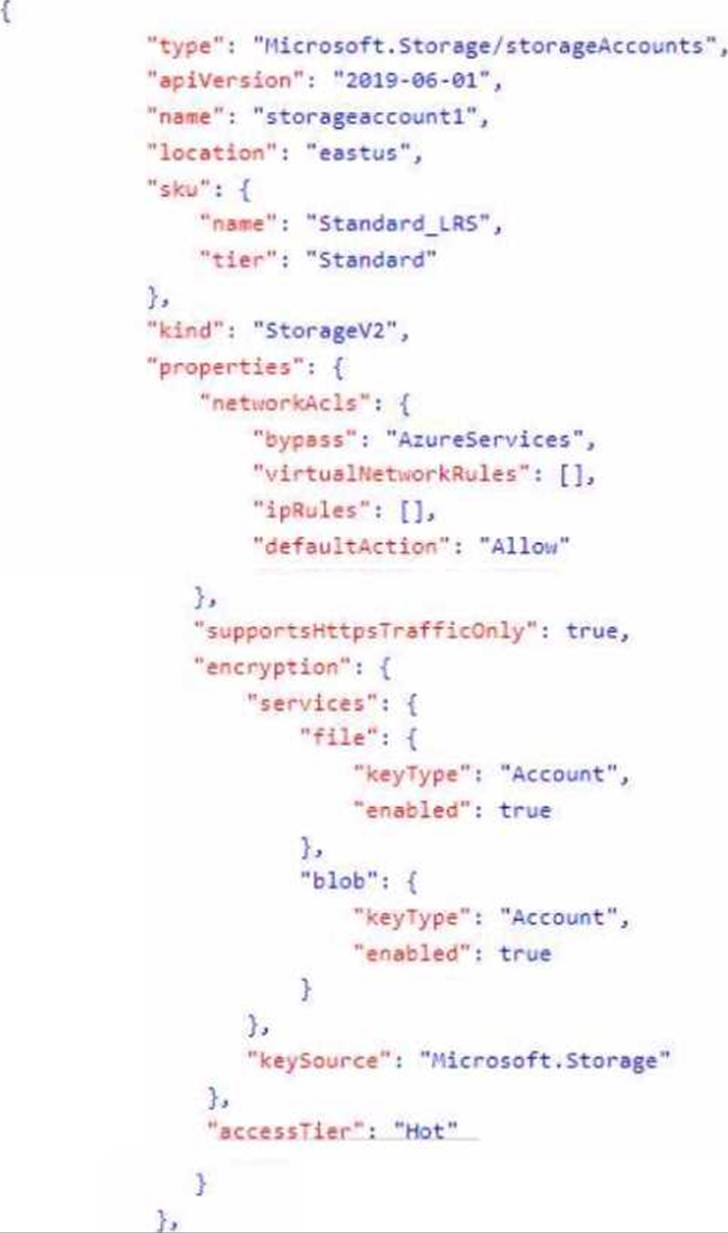

The template contains the following sections.

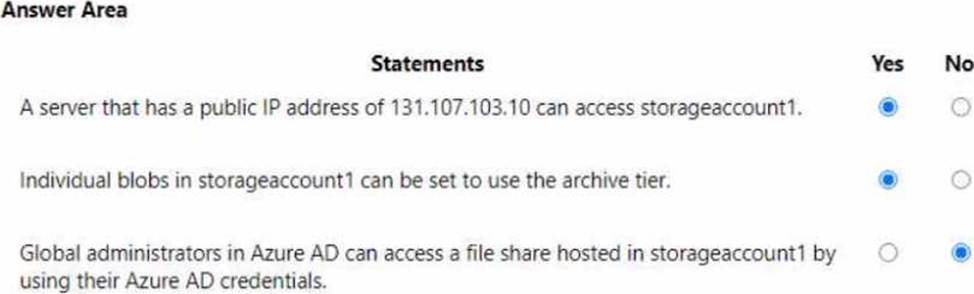

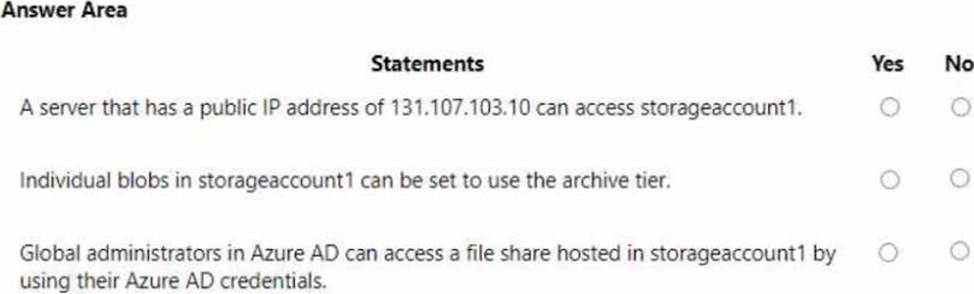

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

HOTSPOT

You implement the planned changes for NSG1 and NSG2.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

You sign up for Azure Active Directory (Azure AD) Premium.

You need to add a user named [email protected] as an administrator on all the computers that will be joined to the Azure AD domain.

What should you configure in Azure AD?

Reveal Solution Hide Solution
