Huawei H12-831_V1.0 Practice Exams
Last updated on Oct 22,2026- Exam Code: H12-831_V1.0
- Exam Name: HCIP-Datacom-Advanced Routing & Switching Technology V1.0
- Certification Provider: Huawei
- Latest update: Oct 22,2026

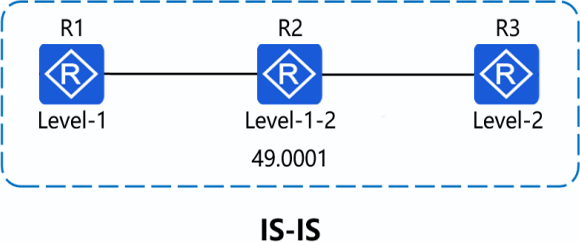

In the IS-IS network shown in the figure, R1 introduces the default route through the "default-route-advertise always level-1" command. Which of the following descriptions are correct? (Multiple choice)
- A . There is a default route in R3’s routing table
- B . There is a default route in R2’s routing table
- C . There is no default route in R1’s routing table
- D . Although R1 is configured with the "default-route-advertise always level-1" command, it cannot import the default route
The interface address of an OSPFv3 router is 2000::1/128. In which of the following types of LSAs is this prefix likely to appear? (Multiple choice)
- A . Inter-Area-Prefix-LSA
- B . Router-LSA
- C . Inter-Area-Router-LSA
- D . AS-External-LSA

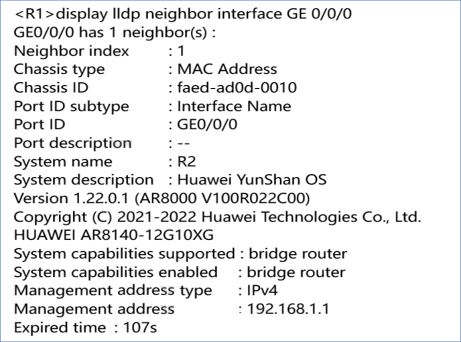

A network engineer is checking LLDP neighbor information on R1. Which of the following descriptions are correct? (Multiple choice)
- A . The management IP address of the peer device is 192.168.1.1
- B . The interface of the peer device is coded as GE0/0/0
- C . The sysname of the peer device is R2
- D . The VLAN ID of the peer device is 1
Which of the following descriptions about OSPFv3 are correct? (Multiple choice)
- A . OSPFv3 Router LSA and Network LSA do not contain IP addresses
- B . In broadcast, NBMA, and P2MP networks, neighbors are no longer identified by IP addresses, but only by Router IDs.
- C . OSPFv3 supports multiple processes on a link
- D . The flooding scope of LSA is added to the LSA message of OSPFv3

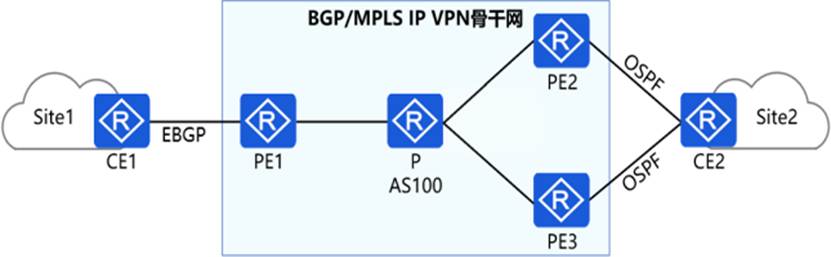

An enterprise network is shown in the figure. If CE2 is dual-owned by PE2 and PE3, a Type 5 LSA routing loop may occur. The loop can be prevented by setting the route-tag command on PE2 and PE3 devices. When the Route Tag of the route received by PE3 is the same as the local configuration, the route will be ignored.
- A . True
- B . False
MPLS determines the upstream and downstream relationship based on the data forwarding direction. The MPLS label message is sent from the upstream LSR and received and processed by the downstream LSR. Similarly, the release of MPLS labels is also distributed one by one from upstream to downstream.
- A . True
- B . False

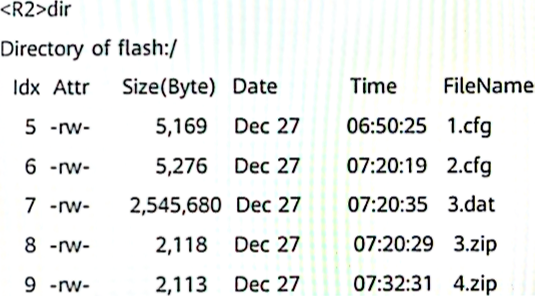

The file information shown in the figure exists on the R2 device. When the network engineer uses the "dir | exclude 1" command to view the file information, which of the following files will be seen?
- A . 4.zip
- B . 3.dat
- C . 1.cfg
- D . 2.cfg

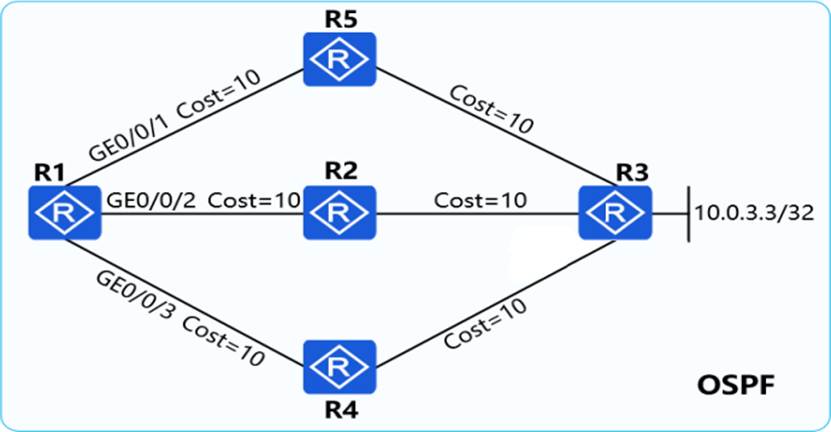

In the OSPF network shown in the figure, the link cost value has been marked in the figure. R1 has enabled OSPF IP FRR and configured the "maximum load-balancing 1" command in the OSPF process. Which of the following is the backup outbound interface for R1 to reach 10.0.3.3/32?
- A . GE0/0/2
- B . GE0/0/1
- C . GE0/0/3
- D . No backup path
If a network engineer forgets the console port password when troubleshooting, Huawei Net Engine AR series routers support configuration in the Boot ROM to skip the console port password startup.
- A . True
- B . False
There are multiple types of MAC address entries on the switch. Which of the following types of entries can discard messages by matching the source MAC address of the received message, thereby achieving the purpose of filtering out illegal users.
- A . Static MAC address table
- B . Business MAC address table
- C . Dynamic MAC address table
- D . Blackhole MAC address table
