Huawei H12-831_V1.0 Practice Exams
Last updated on Oct 22,2026- Exam Code: H12-831_V1.0
- Exam Name: HCIP-Datacom-Advanced Routing & Switching Technology V1.0
- Certification Provider: Huawei
- Latest update: Oct 22,2026

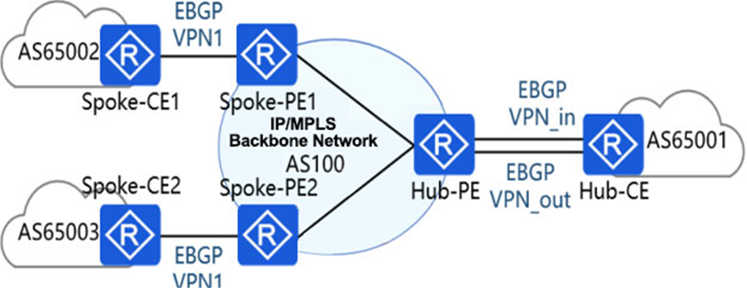

In the Hub&Spoke network shown in the figure, in order to achieve correct routing transmission, the administrator must manually configure the command peer 10.1.2.1() in the BGP-VPN_out view of the Hub-PE.
In a BGP/MPLS IP VPN network, VPNv4 routing transfers carry Export RT values. Which of the following path attributes does MP-BGP use to carry Export RT?
- A . Extended Community
- B . AS Path
- C . Local Preference
- D . MP_REACH_NLRI
In a networking environment where the network is relatively stable and has high requirements for routing convergence time, you can specify the OSPF LSA reception time interval to 0 to cancel the LSA reception time interval, so that topology or routing changes can be immediately perceived, thereby accelerating routing convergence.
- A . True
- B . False

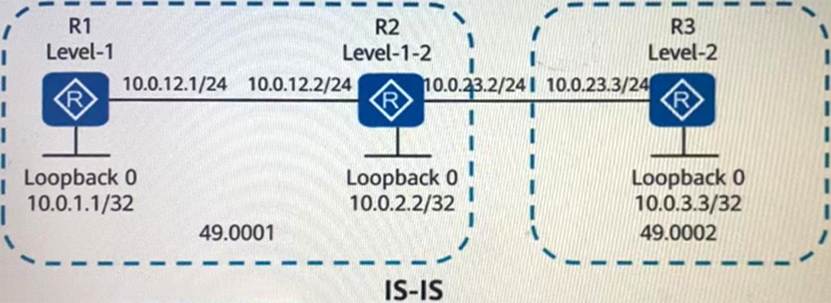

In the IS-IS network shown in the figure, R1 introduces the default route through the "default-route-advertise always level-1" command. Which of the following descriptions are correct? (Multiple choice)
- A . 10.0.12.2 can ping 10.0.3.3
- B . 10.0.1.1 can ping 10.0.2.2
- C . 10.0.1.1 can ping 10.0.3.3
- D . 10.0.2.2 can ping 10.0.3.3
When an IP packet enters the MPLS domain, the ingress node checks the Tunnel ID corresponding to the destination IP address. When the Tunnel ID is one of the following, the ingress node performs IP forwarding on the packet?
- A . 0x2
- B . 0x0
- C . 0x1
- D . 0x3

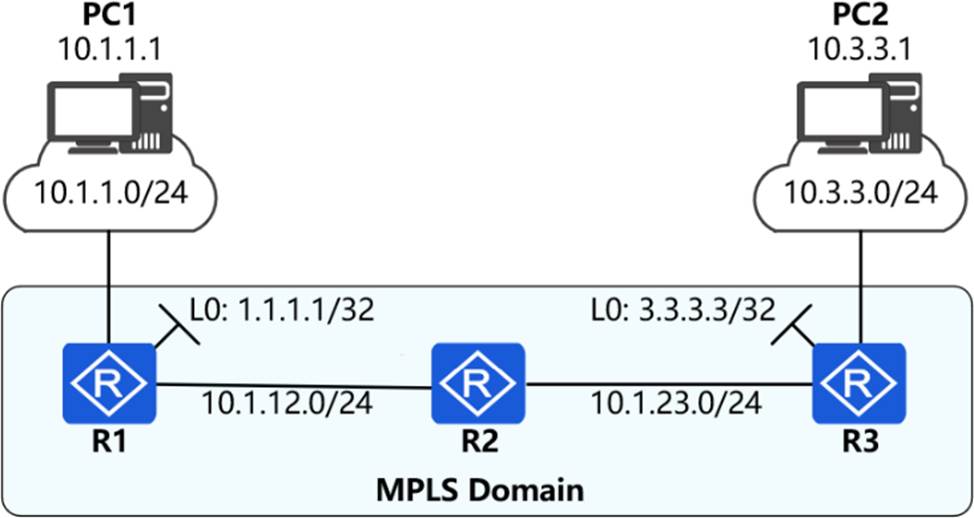

In the network shown in the figure, the administrator first completes the routing configuration as shown in the options, and then enables MPLS and LDP functions on all devices and interconnected interfaces of R1-R3, so as to realize the traffic from PC1 to PC2 forwarding based on MPLS in the network.
Which of the following routing configuration options can achieve this function?
- A . # R1
Bgp 65000
Router-id 1.1.1.1
Peer 3.3.3.3 as-number 65000
Peer 3.3.3.3 connect-interface LoopBack 0
network 10.1.1.0 24
# R3
Bgp 65000
Router-id 3.3.3.3
Peer 1.1.1.1 as-number 65000
Peer 1.1.1.1 connect-interface LoopBack 0
network 10.3.3.0 24 - B . # R1
ospf 1
Area 0
Network 1.1.1.10.0.0.0
Network 10.1.12.00.0.0.255
bgp 65000
Router-id 1.1.1.1
Peer 3.3.3.3 as-number 65000
Peer 3.3.3.3 connect-interface LoopBack 0
network 10.1.1.0 24
Ip ip-prefix 1 index 10 permit 10.3.3.0 24
route recursive-lookup tunnel ip-prefix 1
# R2
ospf 1
Area 0
Network 2.2.2.20.0.0.0
Network 10.1.12.00.0.0.255
Network 10.1.23.00.0.0.255
# R3
ospf 1
Area 0
Network 3.3.3.30.0.0.0
Network 10.1.23.00.0.0.255bgp 65000
Router-id 3.3.3.3
Peer 1.1.1.1 as-number 65000
Peer 1.1.1.1 connect-interface LoopBack 0
Network 10.3.3.024
Ip ip-prefix 1 index 10 permit 10.1.1.0 24
route recursive-lookup tunnel ip-prefix 1 - C . # R1
ospf 1
Area 0
Network 1.1.1.10.0.0.0
Network 10.1.12.00.0.0.255
Network 10.1.1.00.0.0.255
# ospf 1
Area 0
Network 2.2.2.20.0.0.0
Network 10.1.12.00.0.0.255
Network 10.1.23.00.0.0.255
# R3
ospf 1
Area 0
Network 3.3.3.30.0.0.0
Network 10.1.23.00.0.0.255
Network 10.3.3.00.0.0.255 - D . # R1
ospf 1
Area 0
Network 1.1.1.10.0.0.0
Network 10.1.12.00.0.0.255
# R2
ospf 1
Area 0
Network 2.2.2.20.0.0.0
Network 10.1.12.00.0.0.255
Network 10.1.23.00.0.0.255
# R3
ospf 1
Area 0
Network 3.3.3.30.0.0.0
Network 10.1.23.00.0.0.255
If the technical migration actions performed on the network will affect the existing network operations, the pre-set operating procedures and risk control measures must be strictly followed when implementing the technical migration project. Such projects are generally defined as cutover projects.
Which of the following operations performed in the existing network is a non-cutover item?
- A . Change the level of IS-IS Level 1-1-2 routers to Level 1-1 in batches
- B . Modify the description information of router interfaces in batches
- C . Change the area type of some OSPF routers to Stub area in batches
- D . Change the method of importing routes into BGP in batches from network to import

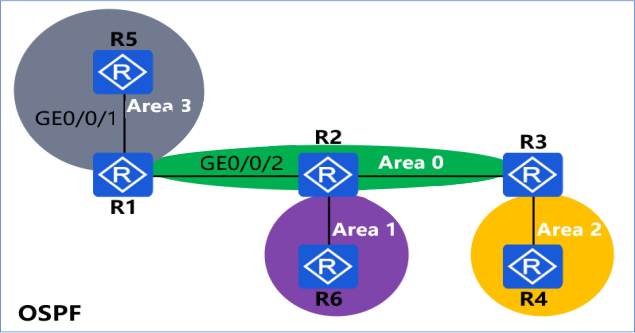

As shown in the OSPF network, the area numbers are marked in the figure, where area 1 is a common area, area 2 is a Totally NSSA area, and area 3 is an NSSA area. R5 introduces the external route 10.0.5.5/32 into OSPF.
Which of the following routers have a route entry for 10.0.5.5/32 in their routing tables? (Multiple choice)
- A . R2
- B . R3
- C . R4
- D . R6

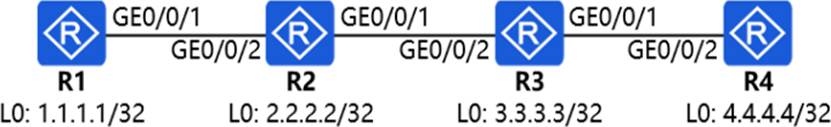

As shown in the figure, the administrator wants to enable the MPLS LDP function of devices R1~R4. Which of the following configurations about R1 is correct?
- A . [R1] mpls
[R1-mpls] quit
[R1] mpls ldp
[R1-mpls-ldp] quit
[R1] interface gigabitethernet 0/0/1
[R1-GigabitEthernet0/0/1] mpls
[R1-GigabitEthernet0/0/1] mpls ldp
[R1-GigabitEthernet0/0/1] quit - B . [R1] mpls lsr-id 1.1.1.1
[R1] mpls
[R1-mpls] quit
[R1] interface gigabitethernet 0/0/1
[R1-GigabitEthernet0/0/1] mpls
[R1-GigabitEthernet0/0/1] mpls ldp
[R1-GigabitEthernet0/0/1] quit - C . [R1] mpls lsr-id 1.1.1.1
[R1] mpls
[R1-mpls] quit
[R1] mpls ldp
[R1-mpls-ldp] quit
[R1] interface gigabitethernet 0/0/1
[R1-GigabitEthernet0/0/1] mpls
[R1-GigabitEthernet0/0/1] quit - D . [R1] mpls lsr-id 1.1.1.1
[R1] mpls
[R1-mpls] quit
[R1] mpls ldp
[R1-mpls-ldp] quit
[R1] interface gigabitethernet 0/0/1
[R1-GigabitEthernet0/0/1] mpls
[R1-GigabitEthernet0/0/1] mpls ldp
[R1-GigabitEthernet0/0/1] quit
A BGP router receives a BGP route whose AS_Path attribute is "100200300".
If the router wants to reject this route, which of the following as-path-filters can it use? (Multiple choice)
- A . ip as-path-filter l deny.*
- B . ip as-path-filter l deny 200
- C . ip as-path-filter l deny 00$
- D . ip as-path-filter l deny 00.*30
