Huawei H12-323_V2.0-ENU Practice Exams
Last updated on Oct 22,2026- Exam Code: H12-323_V2.0-ENU
- Exam Name: HCIP-WLAN V2.0
- Certification Provider: Huawei
- Latest update: Oct 22,2026
When planning the network for an education scenario, which of the following descriptions of the sub-scenario network planning solutions are correct? (Multiple choice)
- A . In an independent office scenario, the area of a single room is usually less than 30 square meters. It is recommended to deploy one AP in each room.
- B . In an open office scenario, if the area of a single room is less than 120 square meters, it is recommended to deploy one AP.
- C . In a normal classroom, it is recommended to deploy one AP for every 100 students.
- D . In a lab scenario, if the room area is less than 120 square meters, deploy one AP in each room.

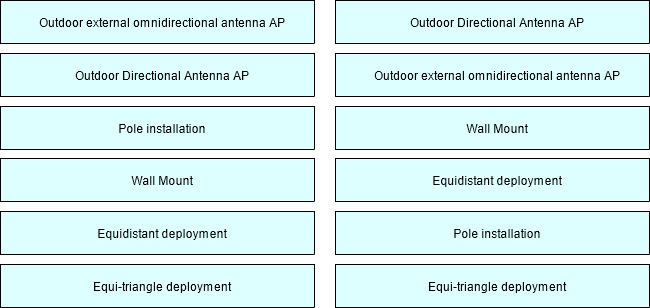

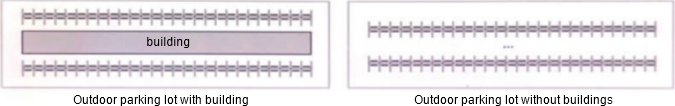

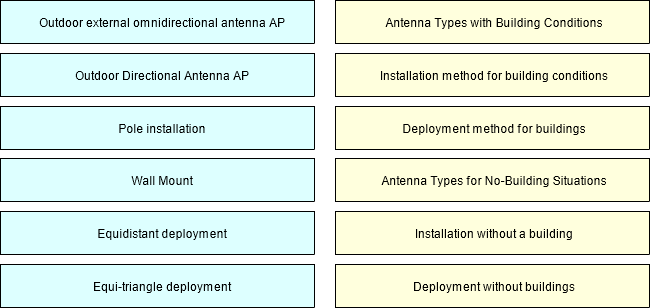

When designing the network plan for an outdoor parking lot, there may be two situations as shown in the following figure (with buildings and without buildings). Please match the antenna type, installation method and AP deployment method recommended by the following network plan with the two situations.
In the Huawei terminal dial test solution, after the dial test is completed, the test results will be synchronized to the CampusInsight platform. You can log in to the CampusInsight platform to view the dial test results, which mainly include the following contents? (Multiple choice)
- A . Problem location process
- B . Terminal signal strength, bandwidth, performance and other information
- C . Wireless signal name
- D . Signal strength trend
In a WLAN network environment, wireless client access can be controlled through blacklist and whitelist policies. Which of the following statements about blacklist and whitelist is wrong?
- A . Enable the whitelist function. If the whitelist is not empty, only STAs matching the whitelist can go online, and other STAs cannot go online.
- B . Enable the blacklist function. If the blacklist is empty, any STA is allowed to go online.
- C . Enable the blacklist function. If the blacklist is not empty, STAs matching the blacklist cannot go online, but other STAs can go online.
- D . Enable the whitelist function. If the whitelist is empty, no STA is allowed to go online.
In WLAN network planning, the final signal field strength is proportional to the AP transmission power and gain, and inversely proportional to the path loss and signal attenuation.
- A . True
- B . False
Radio frequency mainly uses spread spectrum technology. Which of the following technologies belong to spread spectrum technology? (Multiple choice)
- A . FHSS
- B . DSSs
- C . QPSK
- D . OFDM
When designing outdoor AP coverage, it is recommended to use omnidirectional APs or omnidirectional antennas on roads around buildings to expand the coverage as much as possible and ensure the surrounding user experience.
- A . True
- B . False
Which of the following Huawei switches support PoE function? (Multiple choice)
- A . S2700-9TP-PWR-El
- B . S5700-24TP-PWR-Sl
- C . S3700-52P-El-24S-DC
- D . S5700-48TP-SI-AC.
Which of the following options are common coverage methods in enterprise high-density scenarios? (Multiple choice)
- A . Pole installation
- B . Side installation
- C . Ceiling Installation
- D . Install under the seat
