Campusinsight wireless health refers to the comprehensive experience evaluation of a wireless network terminal, and the wireless health report can be generated and sent to customers.
Which of the following descriptions about wireless health reports is wrong?
- A . Wireless health reports can be sent to customers via email or WeChat
- B . After selecting the start and end time as the wireless health report data analysis period, you can choose to directly download the wireless health report
- C . Wireless health reports currently support sending by day, week, biweekly, month, etc.
- D . If you enable the scheduled sending of wireless health reports, you need to select a user group and send the report to the corresponding user group members.
As shown in the figure, this is the floor plan of a luxury suite in a hotel. In order to save costs, the customer adopted a deployment solution in which a single AP covers two rooms.
If this deployment solution is adopted, in order to ensure the coverage effect, which of the following materials are not recommended for the middle wall? (Multiple choice)
- A . 120 mm brick wall
- B . Gypsum board
- C . Concrete
- D . Wooden board
In a WLAN network, when engineers configure the DHCP server, they need to pay attention to whether the WAC and the AP are in the same network segment. If they are in the same network segment, the DHCP server does not need to configure the option 148 field and the AP can also discover the WAC by broadcasting. If the WAC and the AP are not in the same network segment, the DHCP server must configure the option 148 field to specify the IP address of the WAC for the AP, otherwise the AP will not be able to discover the WAC.
- A . True
- B . False
In a WLAN network, which of the following typical obstacles has the correct order of signal attenuation values from small to large?
- A . Ordinary glass window <12 cm brick wall <metal wall <24 cm brick wall
- B . 12cm brick wall < 24cm brick wall < metal wall < ordinary glass window
- C . 12cm brick wall < 24cm brick wall < ordinary glass window < metal wall
- D . Ordinary glass window <12 cm brick wall <24 cm brick wall <metal wall

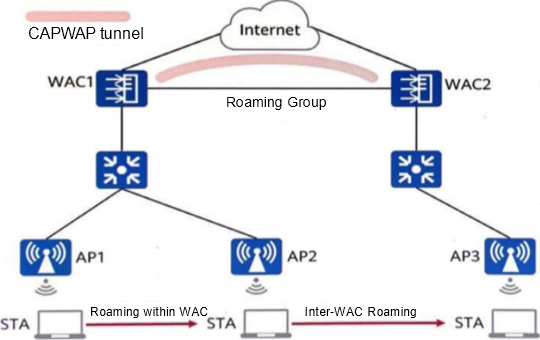

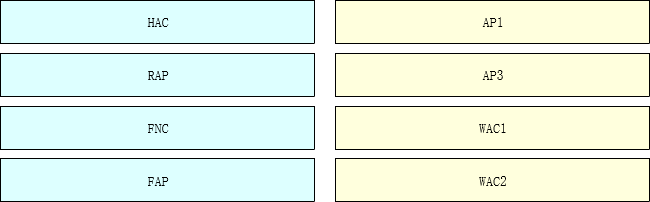

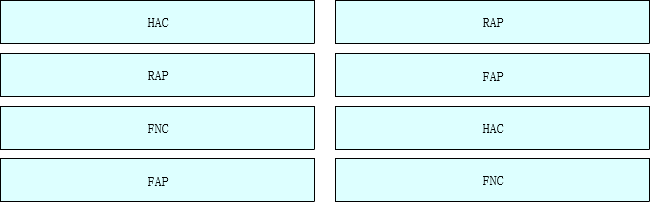

As shown in the figure, SIA roams from the coverage area of AP1 to the coverage area of AP3. Please match the WLAN roaming related terms with the device names in the figure.
In WLAN site survey, which of the following statements is correct regarding the need to confirm the AP installation location and related equipment installation in coverage scenarios? (Multiple choice)
- A . If the weak current well is too far from the AP installation location, the switch cannot be installed.
- B . Indoors, you need to confirm the installation location of the AP and the indoor antenna, and the AP installation method, such as wall-mounted, ceiling-mounted, or placed in the ceiling.
- C . Confirm the location of the data center, which is the general gathering point where AC, network management and various servers are usually placed.
- D . Outdoors, you need to confirm the installation location of the AP and outdoor antenna, and whether a pole is needed.
Which of the following WAC high-reliability networking modes support load balancing? (Multiple choice)
- A . Link cold backup
- B . N+1 backup
- C . VRRP hot backup
- D . Dual-link hot backup
Which of the following statements about AP installation location is correct? (Multiple choice)
- A . For aesthetic reasons, APs can be placed on the ceiling.
- B . The material of the ceiling is generally very thin, and the impact on the coverage can be ignored
- C . When wall-mounting or installing under the ceiling, drilling may be required. During the survey, please confirm with the property management whether this is feasible.
- D . If the site has an integral suspended ceiling, the AP should be placed near the maintenance port as much as possible.
WLAN common tools WLAN Plarmer and CloudCampus APP are both web-based software and are fully open to the public. Users only need to register a Uniportal account to log in and use them.
- A . True
- B . False
When a company builds a new office network, it has 250 employees, a daily office bandwidth requirement of 8Mbps, a WLAN network concurrency rate of 60%, and uses dual-band AP networking (the number of concurrent users of a single AP under this bandwidth requirement is 30) to complete the deployment of the WLAN network. As the business develops, the company needs to recruit 200 more employees. How many more APs do they need to add to meet the wireless office needs?
- A . 3
- B . 24
- C . 4
- D . 5
