Huawei H12-323_V2.0-ENU Practice Exams
Last updated on Oct 22,2026- Exam Code: H12-323_V2.0-ENU
- Exam Name: HCIP-WLAN V2.0
- Certification Provider: Huawei
- Latest update: Oct 22,2026
In a certain enterprise WLAN network, an AP works on a 2.4G channel. There is co-channel or neighboring signal interference between the AP and the neighboring AP. At the same time, the area to be covered by the AP’s 2.4G frequency band can be covered by the neighboring AP.
Which of the following strategies can be used to deal with the above situation? (Multiple choice)
- A . If there are not enough 5G available channels, the radio can be switched to other non-overlapping 2.4GHz channels
- B . If the radio supports switching to 5G, but the 5G channel resources are already saturated, you can switch the radio to monitar
- C . Directly turn off the radio frequency to solve the coverage problem from the root and reduce the same-frequency interference
- D . If there are sufficient 5G channels available and the radio frequency supports switching to 5G, the radio frequency can be switched to the 5G channel.
Which of the following statements about the principles of WLAN outdoor site deployment is correct? (Multiple choice)
- A . The site should be directly visible to the coverage area, and it is recommended that there should be no obstacles blocking the view.
- B . To ensure signal transmission, the site should be installed as high as possible
- C . Avoid strong electric and magnetic fields and other signal interference near the site
- D . There needs to be a reliable power supply near the site
In the demand collection stage of WLAN network planning, if the information provided by the user is very detailed, you can skip the on-site survey and directly enter the network planning stage. Use WLAN Planner for planning.
- A . True
- B . False
What is the function of AC in wireless network? (Multiple choice)
- A . Centralized management of APs
- B . Implement roaming function
- C . Send a beacon frame
- D . Wireless Intrusion Detection

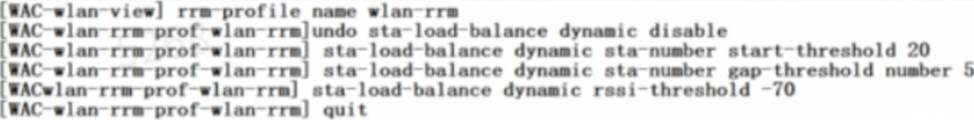

An engineer configures the dynamic load balancing function on a Huawei wireless controller. The relevant command lines are as follows. Which options are correct regarding the description of the configuration command lines? (Multiple choice)
- A . If the terminal signal strength is lower than -70 DBm, the AP will directly filter the terminal information, will not report it to WAC, and will not be added to the dynamic load balancing group.
- B . Dynamic load balancing is enabled
- C . Dynamic load balancing will only be performed when the number of access users exceeds 20
- D . The above configuration is dynamic load balancing based on the number of users
Which of the following descriptions about Huawei CloudCampus APP is wrong?
- A . You can view the signal interference of the current network through the CloudCampus APP, such as signal name, working channel, signal strength, etc.
- B . CloudCampus APP is a mobile APP that integrates functions such as field strength detection and interference testing.
- C . You can view the current Wi-Fi status information, such as signal strength, channel, negotiated rate, etc. through the CloudCampus APP
- D . You can view the MAC address of the AP associated with the current terminal through the CloudCampus APP
In a VLAN network, which of the following descriptions about high-density network planning is wrong?
- A . Before calculating the number of APs, you need to inspect and check the venue structure in advance.
- B . High-density scenario is a coverage-limited scenario
- C . High-density scenario is a capacity-limited scenario
- D . In high-density scenarios, there are many APs, and the distance between APs needs to be controlled to reduce interference.
In the WAC dual-link cold standby scenario, please arrange the following options to determine the correct master WAC election rules.
Which of the following networking methods are recommended for outdoor WDS planning? (Multiple choice)
- A . Root to four leaves
- B . One-hop relay between root and leaf
- C . Two-hop relay between root and leaf
- D . Root to eight leaves
The engineer inspected the customer’s wireless network and found that the service experience was not good using the terminal. The engineer checked the terminal service experience through the user journey function of CampusInsight.
The user journey is shown in the figure below. Which of the following may be the cause of this poor user experience?
- A . The terminal itself has poor performance, resulting in a low negotiation rate
- B . Low terminal signal strength leads to poor experience
- C . The terminal does not support the 802.11r protocol and cannot perform 802.11r roaming, resulting in poor roaming performance
- D . The terminal enters power saving mode, resulting in packet loss
