Question #31

When using the OSPF dynamic routing protocol on an Aruba CX switch, what must match on the neighboring devices to exchange routes?

A . Hello timers
B . DR configuration
C . ECMP method
D . BDR configuration

Reveal Solution Hide Solution

Question #32

A network technician is testing a new SSID for a branch office. They are able to connect, get an IP address, and resolve DNS names. However, they are not able to browse the internet.

On the existing SSID at the branch, connectivity to the internet works as expected on the same VLAN as the new SSID. The wireless client should have received a new role to allow internet access.

What should the network technician verify to ensure both SSIDs function in a similar way?

A . Verify each SSID’s authentication and encryption parameters are enabled and the same.
B . Verify that the implicit ‘deny all’ is the last entry in the firewall policies.
C . Verify the new SSID is broadcasting on all the APs at the branch office.
D . Verify the firewall policies assigned, making sure the rules are correct and ordered properly.

Reveal Solution Hide Solution

Question #33

Based on the "show ip route" output on an Aruba CX 8325, what type of route is "10.20.0.0/22, vrf default via 10.1.1.1, [110/200]"?

A . connected
B . local
C . OSPF
D . static

Reveal Solution Hide Solution

Question #34

When would you bond multiple 20MHz wide 802.11 channels?

A . To decrease the Signal to Noise Ratio (SNR)
B . To increase throughput between the client and AP
C . To provision highly available AP groups
D . To utilize high gain omni-directional antennas

Reveal Solution Hide Solution

Question #34

When would you bond multiple 20MHz wide 802.11 channels?

A . To decrease the Signal to Noise Ratio (SNR)
B . To increase throughput between the client and AP
C . To provision highly available AP groups
D . To utilize high gain omni-directional antennas

Reveal Solution Hide Solution

Question #36

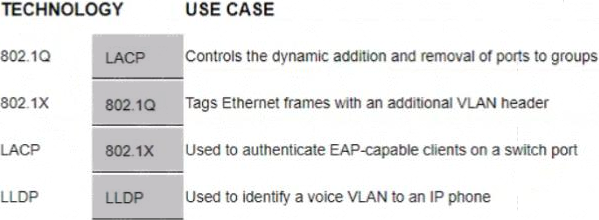

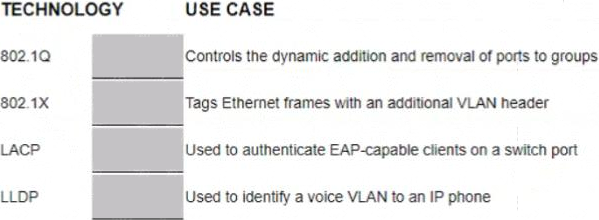

Match the switching technology with the appropriate use case.

Reveal Solution Hide Solution

Question #37

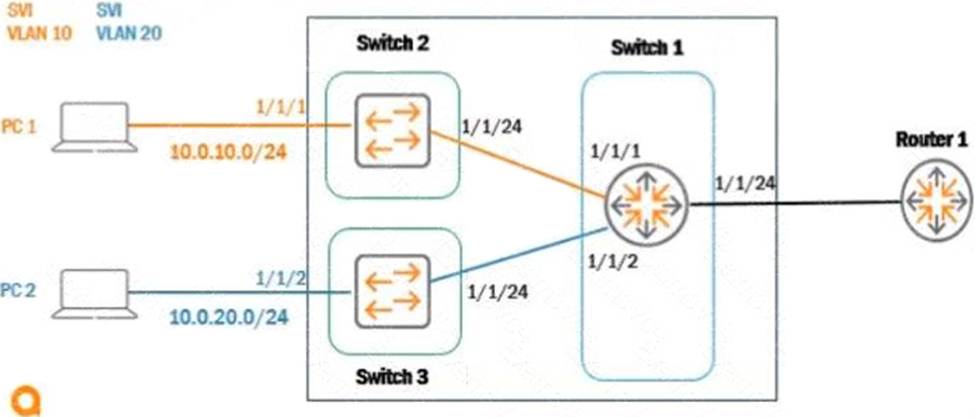

Based on the given topology, what is the requirement on an Aruba switch to enable LLDP messages to be received by Switch 1 port 1/1/24.

When Router 1 is enabled with LLDP?

A . LLDP is enabled by default
B . global configuration lldp enable
C . int 1/1/24, lldp receive
D . int 1/1/24, no cdp

Reveal Solution Hide Solution

Question #38

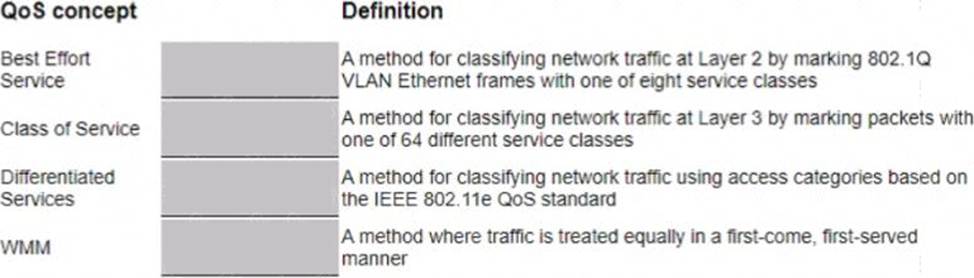

Match the appropriate QoS concept with its definition.

Reveal Solution Hide Solution

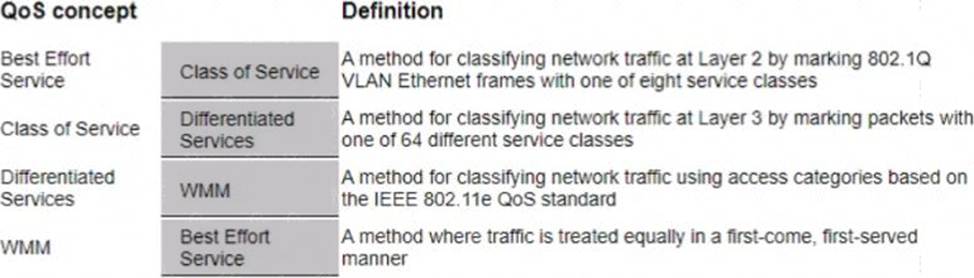

Correct Answer:

Explanation:

QoS Quality of Service (QoS) is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements. QoS can improve network performance, reduce latency, increase throughput, and prevent congestion. concept and its definition.

Here is my answer:

– QoS Concept:

– Best Effort Service

– Class of Service

– Differentiated Services

WMM ====================== Definition:

d) A method where traffic is treated equally in a first-come, first-served manner

a) A method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes

b) A method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes

c) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard

Short But Comprehensive of Correct Answer Only: The correct match between QoS concept and its definition is as follows:

– Best Effort Service: This is a method where traffic is treated equally in a first-come, first-served manner without any prioritization or differentiation. This is the default service level for most networks and applications that do not have specific QoS requirements or guarantees. Best Effort Service does not provide any assurance of bandwidth, delay, jitter, or packet loss.

– Class of Service: This is a method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes (0 to 7). These service classes are also known as IEEE 802.1p priority values or PCP Priority Code Point (PCP) is a 3-bit field in the 802.1Q VLAN tag that indicates the priority level of an Ethernet frame. Class of Service allows network devices to identify and handle different types of traffic based on their priority levels. Class of Service is typically used in LAN Local Area Network (LAN) is a network that connects devices within a limited geographic area, such as a home, office, or building environments where Layer 2 switching is predominant.

– Differentiated Services: This is a method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes (0 to 63). These service classes are also known as DiffServ Code Points (DSCP) DiffServ Code Point (DSCP) is a 6-bit field in the IP header that indicates the service class of a packet. Differentiated Services allows network devices to identify and handle different types of traffic based on their service classes. Differentiated Services is typically used in WAN Wide Area Network (WAN) is a network that connects devices across a large geographic area, such as a country or continent environments where Layer 3 routing is predominant.

– WMM: This is a method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard. WMM stands for Wi-Fi Multimedia and it is a certification program developed by the Wi-Fi Alliance to enhance QoS for wireless networks. WMM defines four access categories (AC): Voice, Video, Best Effort, and Background. These access categories correspond to different priority levels and contention parameters for wireless traffic. WMM allows wireless devices to identify and handle different types of traffic based on their access categories.

References:

https://en.wikipedia.org/wiki/Quality_of_service

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos_dfsrv/configuration/xe-16/qos-dfsrv-xe-16-book/qos-dfs

https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/81831-qos-wlan.html

https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-wmm

Question #39

A network technician is troubleshooting one new AP at a branch office that will not receive Its configuration from Aruba Central. The other APs at the branch are working as expected. The output of the ‘show ap debug cloud-server command’ shows that the "cloud conflg received" Is FALSE.

After confirming the new AP has internet access, what would you check next?

A . Disable and enable activate to trigger provisioning refresh
B . Verify the AP can ping the device on arubanetworks.com
C . Verify the AP has a license assigned
D . Disable and enable Aruba Central to trigger configuration refresh

Reveal Solution Hide Solution

Question #40

Which type of device type and group persona is required to manage a Microbranch environment?

A . ArubaOS 10 AP Group Persona
B . ArubaOS 10 Branch Gateway Group Persona
C . ArubaOS 8 AP Group Persona
D . ArubaOS 8 Branch Gateway Group Persona

Reveal Solution Hide Solution
