Fortinet FCP_FWF_AD-7.4 Practice Exams
Last updated on Oct 22,2026- Exam Code: FCP_FWF_AD-7.4
- Exam Name: FCP - Secure Wireless LAN 7.4 Administrator
- Certification Provider: Fortinet
- Latest update: Oct 22,2026
What are the benefits of using SSID hiding in a wireless network? (Select all that apply)
- A . Reducing the visibility of the network to unauthorized users
- B . Enhancing wireless signal strength
- C . Preventing casual scanning of the network
- D . Allowing automatic connection for authorized devices
How can you find upstream and downstream link rates of a wireless client using FortiGate?
- A . On the FortiAP CLI, using the cw_diag ksta command
- B . On the FortiAP CLI, using the cw_diag -d sta command
- C . On the FortiGate GUI, using the WiFi Client monitor
- D . On the FortiGate CLI, using the diag wireless-controller wlac -d Sta command
The purpose of FortiAP and client load balancing is to:
- A . Minimize the cost of FortiAP deployment.
- B . Optimize wireless client distribution across multiple access points.
- C . Provide guest access to the network.
- D . Encrypt traffic between FortiAP and FortiGate.
In a scenario where multiple SSIDs are broadcasting on a FortiAP device, how would you ensure that a specific SSID is associated with a particular network segment?
- A . Using the FortiGate guest management feature.
- B . By configuring VLANs on SSIDs.
- C . Using advanced bridge mode options.
- D . Through FortiAP and client load balancing.
Two APs are located in a shop that is required to support forty 2.4 GHz point-of-sale wireless devices. The APs are managed by a centrally hosted FortiGate. A previous wireless network administrator has enabled client load balancing between APs.

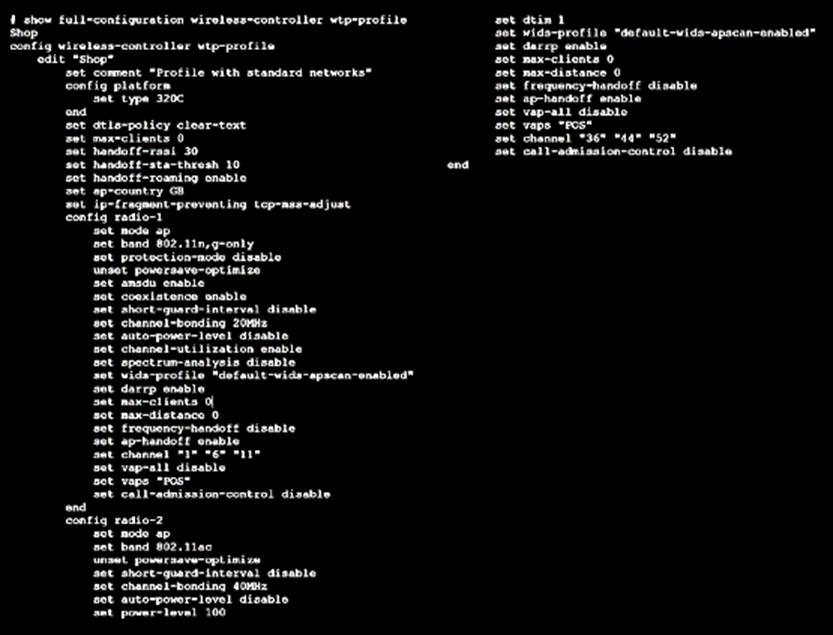

However, the clients are not balancing well between the APs, causing overloading on one of the AP radios. Refer to the exhibit, which is part of the configuration of the AP profile that is used for the APs.
The first AP has 35 clients associated with it, the second has five clients associated with it. The detected noise floor of the network is -91dBm. The channel utilization for both 2.4 GHZ interfaces is less than 40%. The clients have a detected signal strength of between -53 and -71 dBm.
Which configuration change would improve the distribution of wireless clients between the APs?
- A . Manually configure 2.4GHz interfaces of both APs to separate channels.
- B . Increase the handoff-sta-thresh option to 20.
- C . Set the max-clients option to 20.
- D . Decrease the handoff-rssi option to 20.
In a packet capture, what might a series of "ACK" packets indicate?
- A . Successful data transmission and receipt acknowledgment
- B . A client device’s failed authentication attempt
- C . DHCP server’s malfunction
- D . The presence of rogue APs
Which of the following can contribute to optimizing wireless client experiences in a busy enterprise setting?
- A . Use of advanced bridge mode options
- B . Configuration of VLANs on SSIDs
- C . FortiAP profiles deployment
- D . Activation of FortiAP and client load balancing
Which measure is the best indication of a wireless client’s connection quality?
- A . Client link rates
- B . AP association count
- C . Client signal strength
- D . Channel utilization

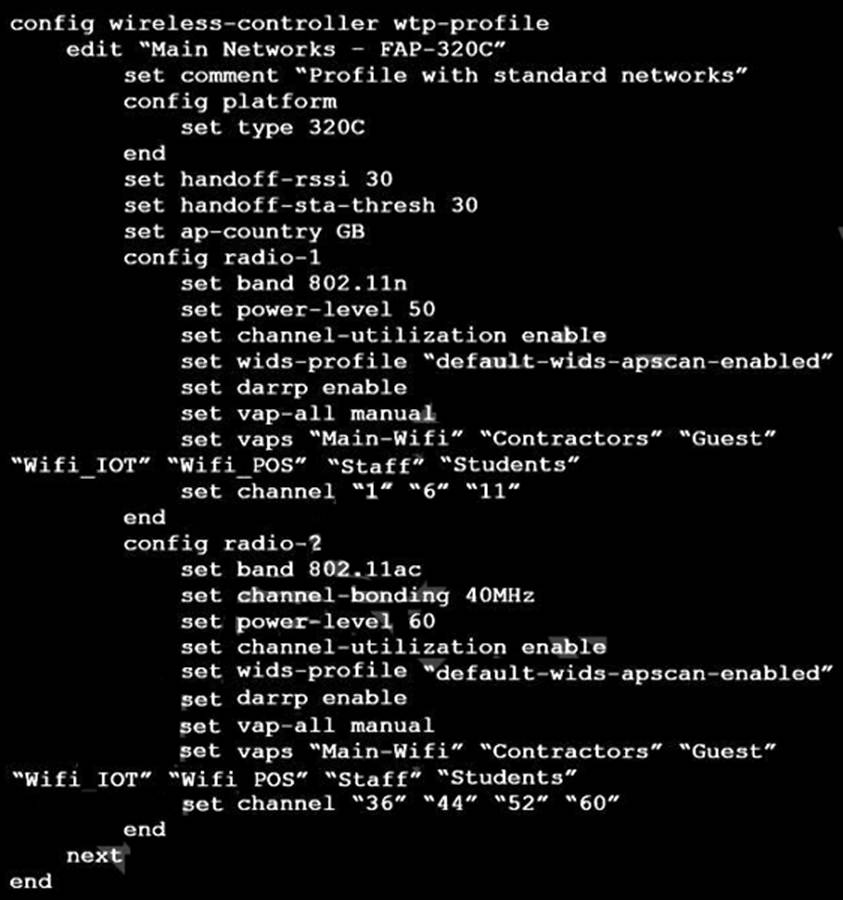

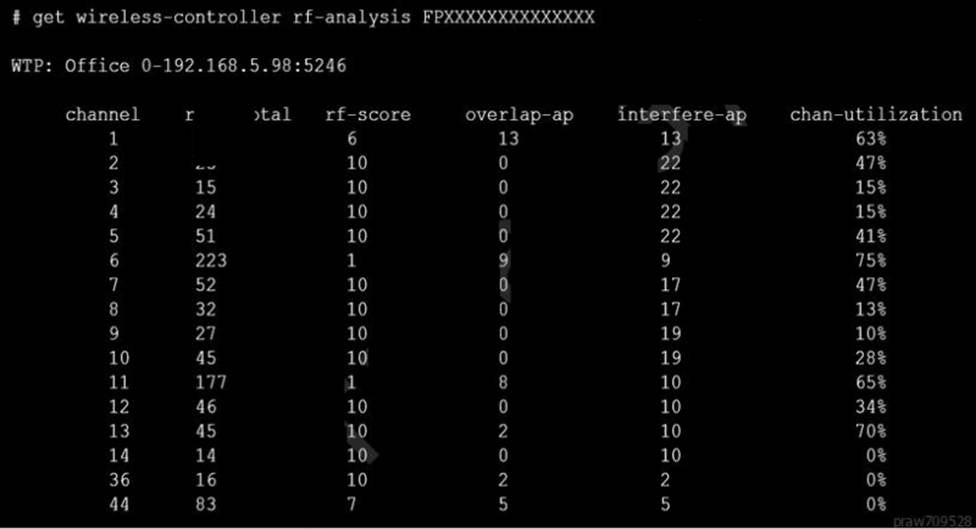

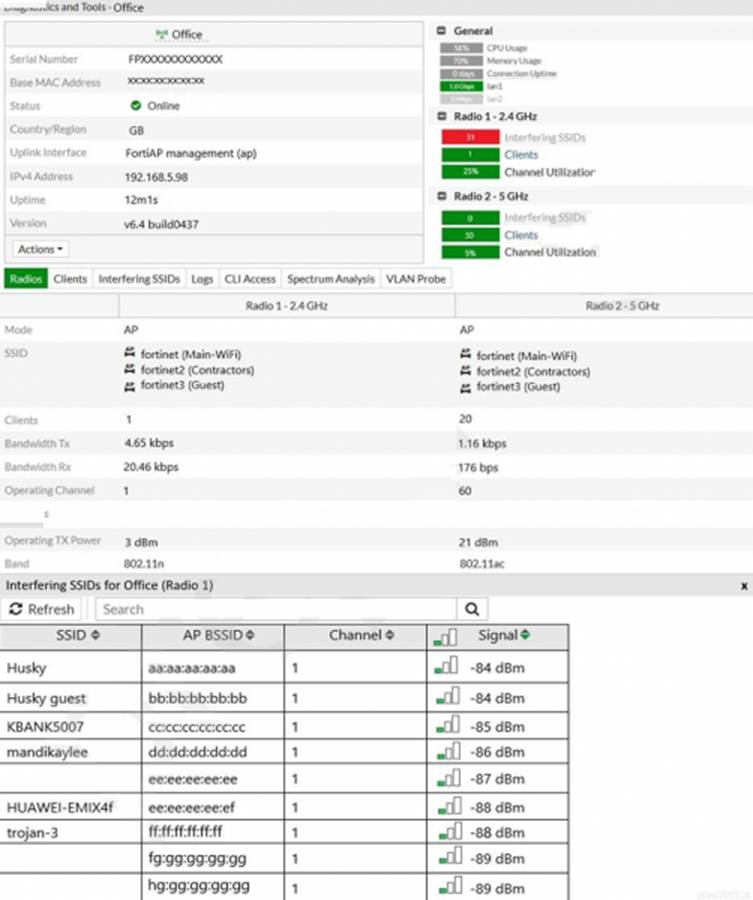

Refer to the exhibits.
Exhibit A
Exhibit B
Exhibit C
A wireless network has been installed in a small office building and is being used by a business to connect its wireless clients. The network is used for multiple purposes, including corporate access, guest access, and connecting point-of-sale and IoT devices.
Users connecting to the guest network located in the reception area are reporting slow performance. The network administrator is reviewing the information shown in the exhibits as part of the ongoing investigation of the problem.
They show the profile used for the AP and the controller RF analysis output together with a screenshot of the GUI showing a summary of the AP and its neighboring APs.
To improve performance for the users connecting to the guest network in this area, which configuration change is most likely to improve performance?
- A . Increase the transmission power of the AP radios
- B . Reduce the number of wireless networks being broadcast by the AP
- C . Install another AP in the reception area to improve available bandwidth
- D . Enable frequency handoff on the AP to band steer clients
Which configuration would enable the most reliable wireless connectivity for the remote clients?
- A . Configure a bridge mode wireless network and enable the Local authentication configuration option
- B . Configure a tunnel mode wireless network and enable split tunneling to the local network
- C . Install supported FortiAP and configure a bridge mode wireless network
- D . Configure a bridge mode wireless network and enable the Local standalone configuration option
