DELL EMC D-VXR-OE-01 Practice Exams

Last updated on Oct 22,2026

Exam Code: D-VXR-OE-01
Exam Name: Dell VxRail Operate v2 Exam
Certification Provider: DELL EMC
Latest update: Oct 22,2026

Question #61

An environment has two VxRail clusters with the following hardware configuration:

– Cluster-A is using FTT = 2 and FTM = Erasure Coding

– Cluster-B is using FTT = 2 and FTM = Mirroring

A 100 GB VM is planned to be vMotioned from Cluster-A to Cluster-B.

How much more vSAN capacity is consumed in Cluster-B than in Cluster-A?

A . 0 GB; consumption is unchanged
B . 100 GB
C . 150 GB
D . 167 GB

Reveal Solution Hide Solution

Question #62

An organization wants to implement a zero data loss protection solution for its virtual machines.

What is the recommended solution when using a VxRail system?

A . RecoverPoint for VMs
B . Stretched clusters
C . PowerProtect software
D . VMware site recovery

Reveal Solution Hide Solution

Question #63

Which component is critical for managing VxRail network configurations?

A . VxRail Manager
B . VMware NSX
C . VxRail REST API
D . Dell EMC PowerSwitch

Reveal Solution Hide Solution

Question #64

A VxRail administrator is trying to run a Storage Performance Test for vSAN. However, they do not see that option in vCenter.

What could be the reason?

A . vSphere version is 6.5.0 EP04
B . vSphere version is 6.5.0 U1
C . VxRail Manager version is 4.5.211
D . VxRail Manager version is 4.5.101

Reveal Solution Hide Solution

Question #65

A VxRail administrator is evaluating vSAN settings in preparation for vSAN configuration.

Which configurations will result in the lowest initial usable capacity?

A . FTT = 1 (RAID 5 – Erasure Coding) Deduplication and Compression Enabled
B . FTT = 1 (RAID 5 – Erasure Coding) Deduplication and Compression Disabled
C . FTT = 1 (RAID 1 – Mirroring) Deduplication and Compression Enabled
D . FTT = 1 (RAID 1 – Mirroring) Deduplication and Compression Disabled

Reveal Solution Hide Solution

Question #65

A VxRail administrator is evaluating vSAN settings in preparation for vSAN configuration.

Which configurations will result in the lowest initial usable capacity?

A . FTT = 1 (RAID 5 – Erasure Coding) Deduplication and Compression Enabled
B . FTT = 1 (RAID 5 – Erasure Coding) Deduplication and Compression Disabled
C . FTT = 1 (RAID 1 – Mirroring) Deduplication and Compression Enabled
D . FTT = 1 (RAID 1 – Mirroring) Deduplication and Compression Disabled

Reveal Solution Hide Solution

Question #67

SIMULATION

A VxRail administrator is concerned about security and wants to protect the vSAN storage against unauthorized access (for both data on disk and in flight.)

Use the simulator to enable the relevant services. A vSphere Native Key Provider has already been configured.

Reveal Solution Hide Solution

Correct Answer: To protect the vSAN storage against unauthorized access for both data on disk and in-flight, enable vSAN data-at-rest encryption and data-in-transit encryption.

Follow these steps:

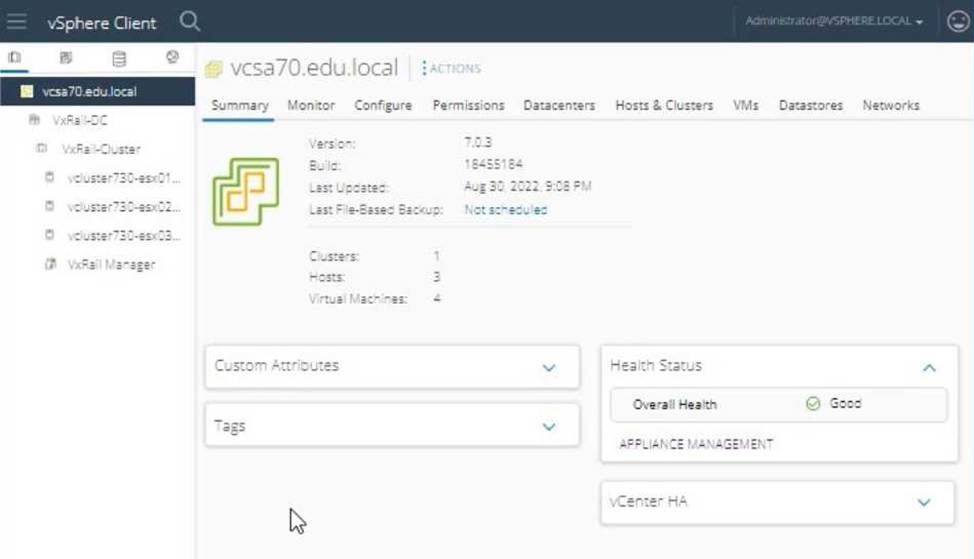

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: [email protected].

Enter the password: VMw@r3!123.

Click Login.

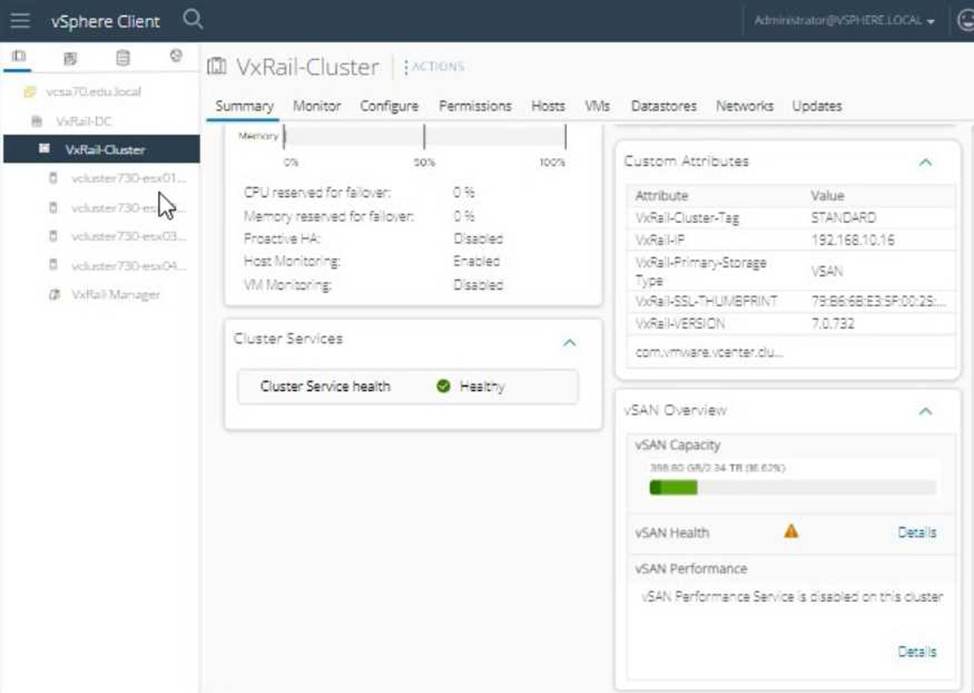

Navigate to vSAN Cluster Settings:

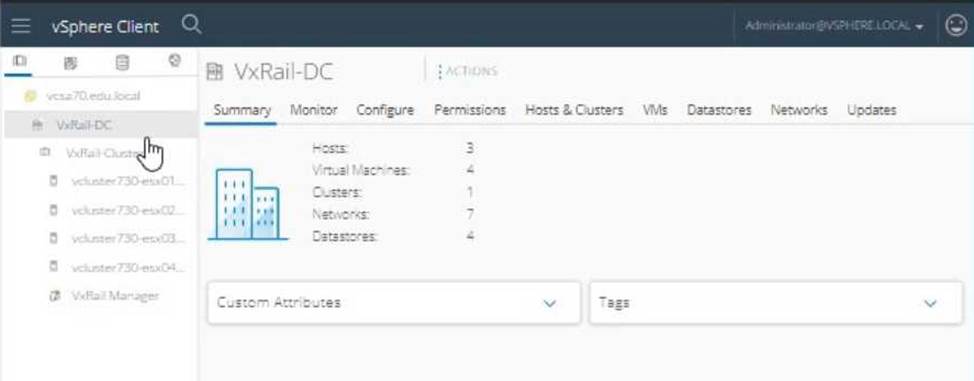

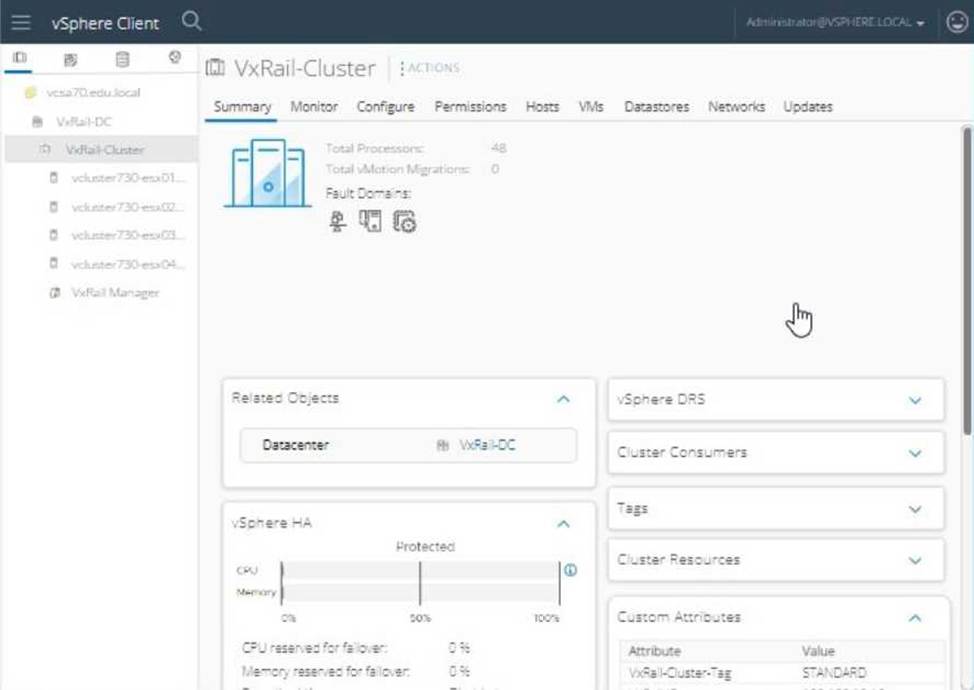

In the left-hand navigation pane, expand VxRail-DC and select VxRail-Cluster.

Click on the Configure tab.

Enable vSAN Data-at-Rest Encryption:

Under the vSAN section, select Services.

Click on Data-at-Rest Encryption.

Click Edit to configure encryption settings.

Ensure that the Enable Data-at-Rest Encryption checkbox is selected.

Choose the vSphere Native Key Provider that has already been configured.

Click Apply to enable data-at-rest encryption.

Enable vSAN Data-in-Transit Encryption:

Under the same vSAN section, select Services.

Click on Data-in-Transit Encryption.

Click Edit to configure encryption settings.

Ensure that the Enable Data-in-Transit Encryption checkbox is selected.

Click Apply to enable data-in-transit encryption.

Verify Configuration:

Return to the vSAN > Services section.

Ensure that both Data-at-Rest Encryption and Data-in-Transit Encryption are enabled and show as active.

Verify that there are no error messages indicating configuration issues.

Steps using the Simulator:

Login to vSphere Client:

Open the simulator and navigate to the vSphere Client interface.

Log in using the credentials:

Username: [email protected].

Password: VMw@r3!123.

Navigate to vSAN Settings:

In the vSphere Client interface, expand VxRail-DC and select VxRail-Cluster.

Click on the Configure tab on the right.

Enable Data-at-Rest Encryption:

Under vSAN, click Services.

Find Data-at-Rest Encryption and click Edit.

Check the box for Enable Data-at-Rest Encryption.

Select the vSphere Native Key Provider.

Click Apply.

Enable Data-in-Transit Encryption:

Still under vSAN > Services, find Data-in-Transit Encryption and click Edit.

Check the box for Enable Data-in-Transit Encryption.

Click Apply.

Verification:

Check the status of both encryption services under vSAN > Services to ensure they are enabled and operational.

Reference: VMware vSAN Security Guide: vSAN Security

By enabling both data-at-rest and data-in-transit encryption, you can protect the vSAN storage from unauthorized access and ensure data security both on disk and during transit.

Question #68

When configuring Data at Rest Encryption (DARE) on a vSAN cluster, what is required?
