Which IEEE standard defines the Data Link Layer, Discovery protocol?
- A . 802.1AB
- B . 802.1AX
- C . 802.1D
- D . 802.1W

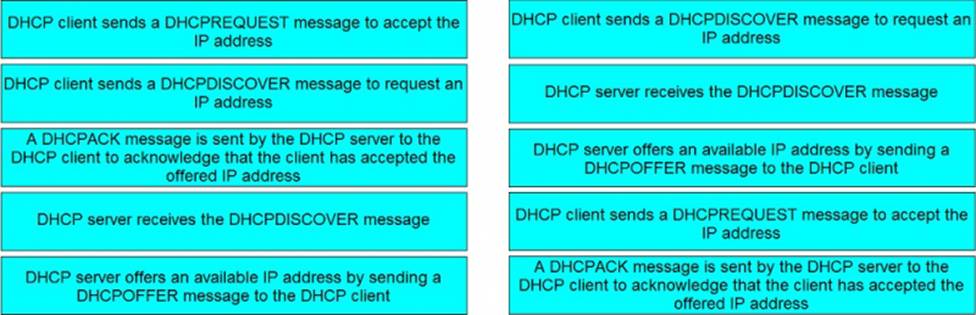

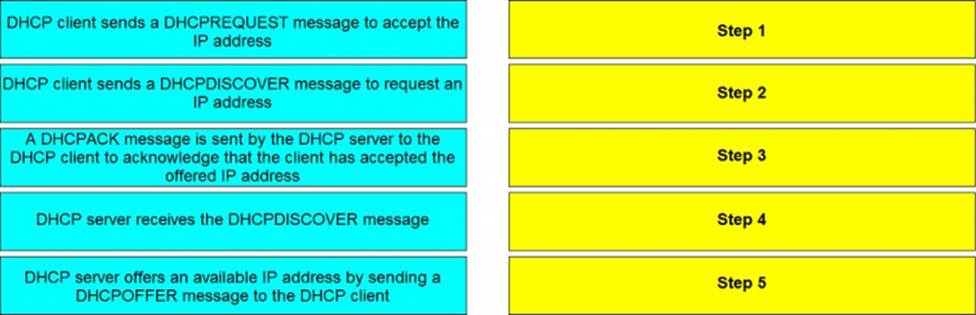

What is the correct sequence of steps that occur in the communications between the client and server to obtain an IP address from a DHCP server?
What is the aggregated lanes’ maximum speed rating for a QSFP28 transceiver?
- A . 4 Gbps
- B . 40 Gbps
- C . 112 Gbps
- D . 128 Gbps
How is outbound traffic distributed when using LACP port channels on OS6 switches?
- A . Load balanced per packet using round robin
- B . Interfaces are used in active/passive
- C . Load balanced using a hash function
- D . Traffic overflow is sent to the second interface
In addition to receiving an IP address, what other information is obtained from a DHCP server?
- A . Default gateway address and VLAN ID
- B . DNS server address and port speed
- C . Default gateway address and DNS server address
- D . DNS server address and VLAN ID
At which layer of the OSI model is the Rapid Spanning Tree protocol used to prevent switching loops?
- A . Physical
- B . Network
- C . Data Link
- D . Transport
Which Layer 2 technology is used to segment a switched network?
- A . Trunking
- B . ISL
- C . LAN
- D . VLAN
What are the required commands to configure a native VLAN of 10 and a tagged VLAN of 20 on an OS6 switch?
- A . # interface ethernet 1/6
# switchport trunk encapsulation dot1
# switchport trunk native vlan 10
# switchport trunk allowed vlan 20
# switchport mode trunk - B . # interface gigabitethernet 1/0/6
# switchport mode trunk
# switchport mode allow vlan 20
# switchport mode trunk native vlan 10 - C . # interface ethernet 1/1/6
# switchport mode trunk
# switchport trunk allowed vlan 20
# switchport access vlan 10 - D . # interface gigabitethernet 1/0/7
# switchport mode trunk
# switchport mode allow vlan 20
# switchport mode trunk native vlan 10
What is the FCS field used for in an Ethernet frame?
- A . Redirect ICMP messages back to the originator
- B . Ensure the frame was not corrupted during transmission
- C . Resolve ARP requests
- D . Look up the destination address
Which parameter is required to match an OSPF Adjacency to form?
- A . IP addresses
- B . Area ID
- C . Switch models
- D . Switch firmware version
