Cisco 350-501 Practice Exams
Last updated on Oct 22,2026- Exam Code: 350-501
- Exam Name: Implementing and Operating Cisco Service Provider Network Core Technologies
- Certification Provider: Cisco
- Latest update: Oct 22,2026
You are creating new Cisco MPLS TE tunnels.
Which type of RSVP message does the headend router send to reserve bandwidth on the path to the tunnel’s router?
- A . error
- B . reservation
- C . path
- D . tear
Which configuration modifies Local Packet Transport Services hardware policies?

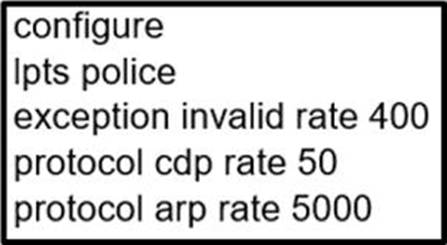

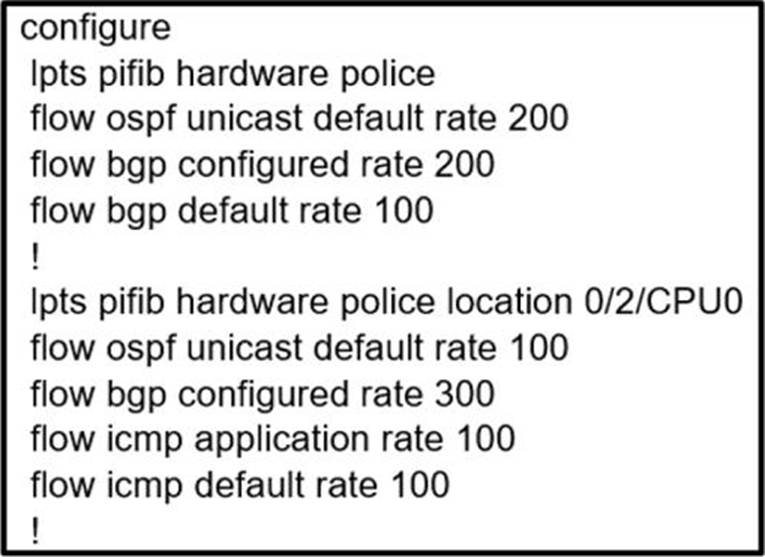

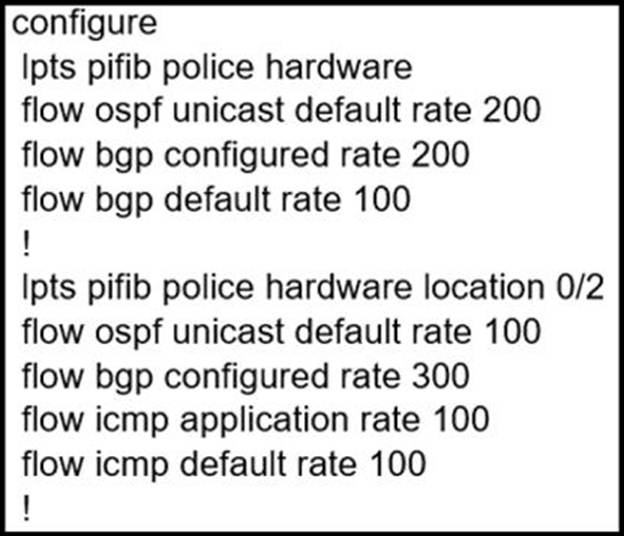

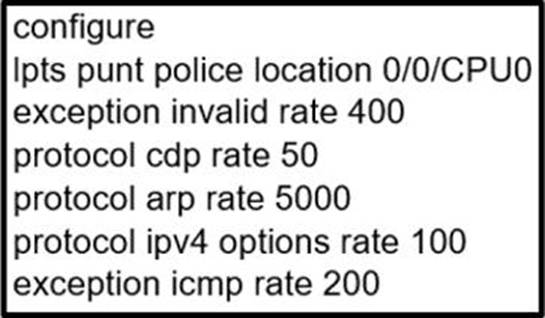

A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D

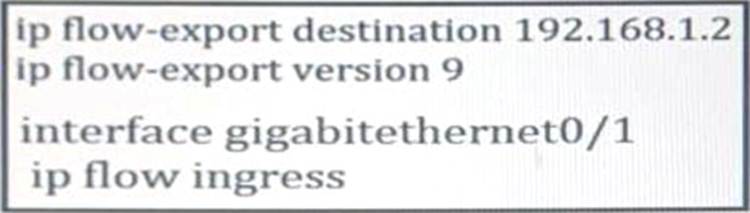

Refer to the exhibit:
Which information is provided for traceback analysis when this configuration is applied?
- A . BGP version
- B . packet size distribution
- C . source interface
- D . IP sub flow cache

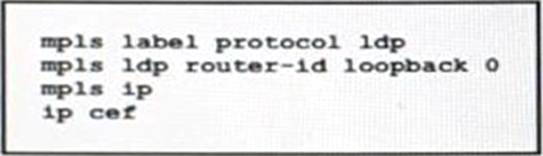

Refer to the exhibit:
A network operator working for service provider with an employee id 3715 15:021 applied this configuration to a router.
Which additional step should the engineer use to enable LDP?
- A . Disable Cisco Express Forwarding globally
- B . Delete the static router ID
- C . Enable MPLS LDP on the interface
- D . Configure the both keyword to enable LDP globally
You are configuring MPLS traffic-engineering tunnels in the core.
Which two ways exist for the tunnel path across the core? (Choose two )
- A . Tunnel links inherit IGP metrics by default unless overridden
- B . Tunnels can be configured with dynamic path or explicitly defined path
- C . A zero bandwidth tunnel is not a valid option
- D . The bandwidth statement creates a "hard" reservation on the link-The dynamic path option is supported only with IS-IS

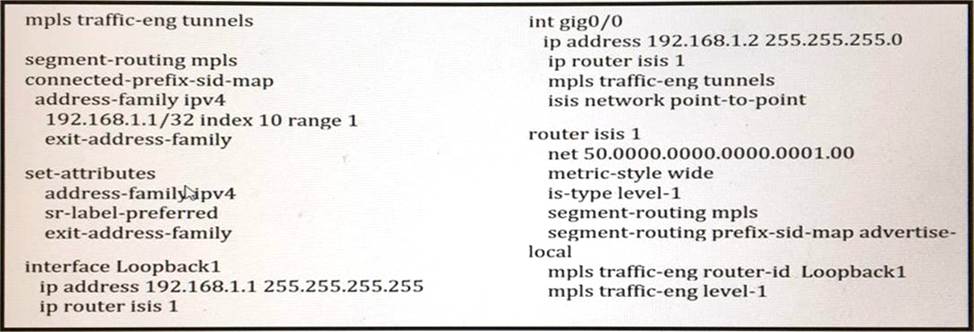

Refer to the exhibit:
Which statement about this configuration is true?
- A . It requires an explicit Cisco MPLS TE path to be configured for the tunnel to run
- B . It requires OSPF to also be running to have optimized Cisco MPLS TE tunnels
- C . It requires a dynamic Cisco MPLS TE path to be configured for the tunnel to run
- D . It is the configuration for the head-end router of a Cisco MPLS TE tunnel with segment routing

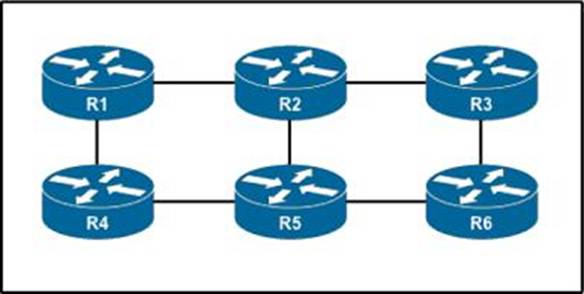

Refer to the exhibit:
You are configuring an administrative domain implement so that devices can dynamically learn the RP?
- A . SSM
- B . BID1R-PIM
- C . BSR
- D . Auto-RP
What is the difference between SNMP and model-driven telemetry?
- A . Telemetry allows for modeled network data to be pushed to the network administrator on an as-needed basis
- B . Telemetry uses traps and inform messages to deliver data to a network administrator on a polling basis
- C . SNMP uses the YANG data modeling language
- D . SNMP pushes network data to the network administrator whenever it is queried
Which statement about the Cisco MPLS TE forwarding adjacency feature is true?
- A . It enables the headend and tailend routers to establish a bidirectional tunnel
- B . It enables the tailend router to advertise routes to the headend router over the tunnel
- C . It enables the MPLS core to use EIGRP as the routing protocol
- D . It enables the Cisco MPLS TE tunnel to be advertised into the running IGP.
