Cisco 350-501 Practice Exams
Last updated on Oct 22,2026- Exam Code: 350-501
- Exam Name: Implementing and Operating Cisco Service Provider Network Core Technologies
- Certification Provider: Cisco
- Latest update: Oct 22,2026

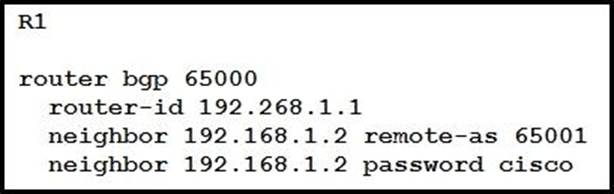

Refer to the exhibit:
Router R1 and its peer R2 reside on the same subnet in the network, If does it make connections to R27
- A . R1 establishes UDP connections that are authenticated with an MD5 password
- B . R1 establishes TCP connections that are authenticated with a clear-text password
- C . R1 establishes UDP connections that are authenticated with a clear-text password
- D . R1 establishes TCP connections that are authenticated with an MD5 password

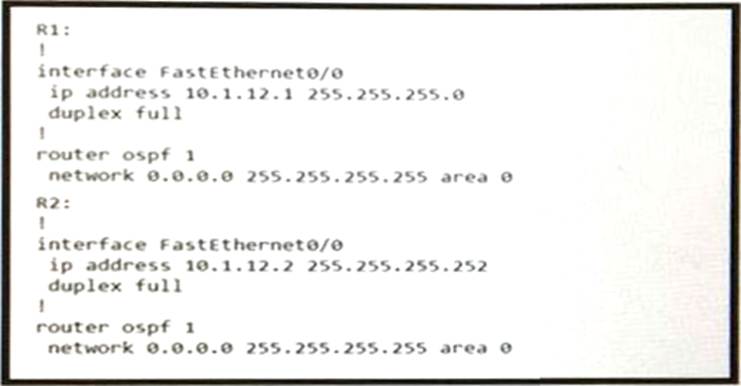

Refer to the exhibit:
R1 and R2 are directly connected with Fast Ethernet interfaces and have the above configuration applied OSPF adjacency is not formed. When the debug ip ospf hello command is issued on R1. these log messages are seen.
Which command can be configured on routers R1 and R2 on fO/O interfaces to form OSPF adjacency?
- A . ip ospf network non-broadcast
- B . ip ospf network point-to- multipoint non-broadcast
- C . ip ospf network point-to-point
- D . ip ospf network broadcast

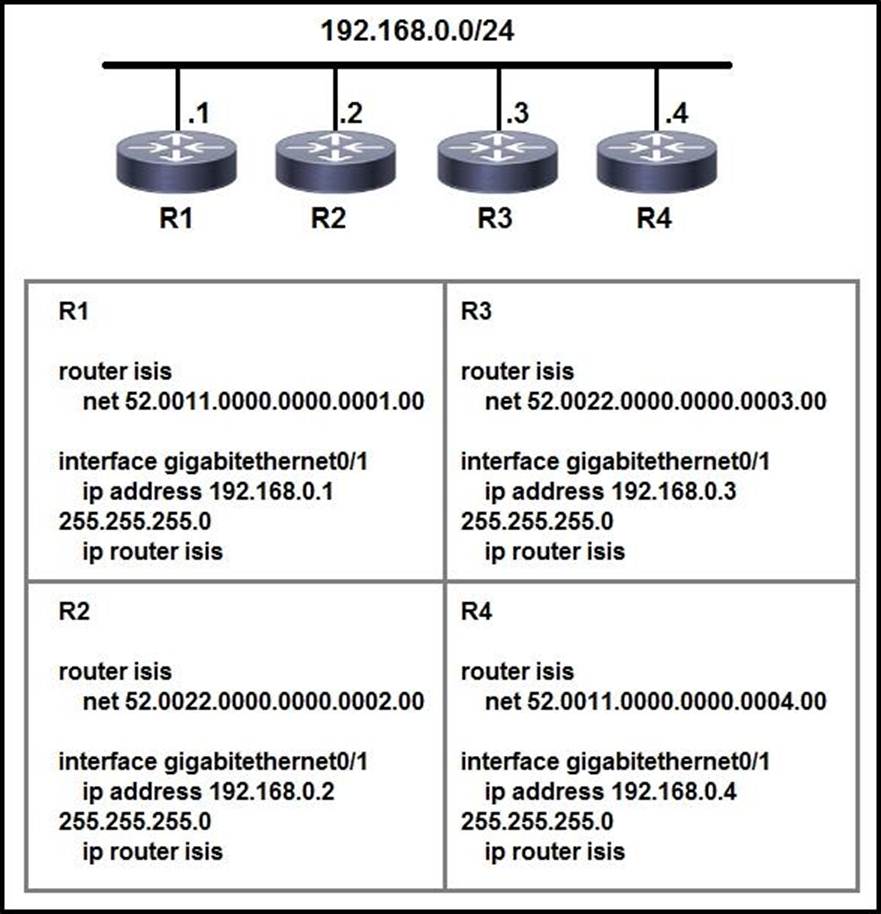

Refer to the exhibit:
Which two statements about the ISIS topology are true? (Choose two.)
- A . All four routers are operating as Level 1 routers only.
- B . All four routers are operating as Level 2 routers only.
- C . All four routers are operating as Level 1-2 routers.
- D . R1 and R2 are Level 2 neighbors.
- E . R1 and R4 are Level 2 neighbors
Which statement about Network Services Orchestrator (NSO) is true?
- A . It is used only in service provider environments
- B . It can be used only with XML coding
- C . It uses YANG modeling language to automate devices
- D . It must use SDN as an overlay for addressing

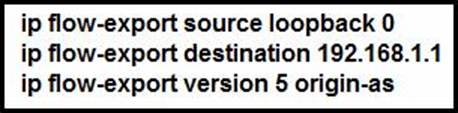

Refer to the exhibit:
It the NetFlow configuration is updated to version 9, which additional piece of information can be reported?
- A . IPv6 flow information
- B . flow sequence numbers
- C . BGP AS information
- D . IPv4 flow information

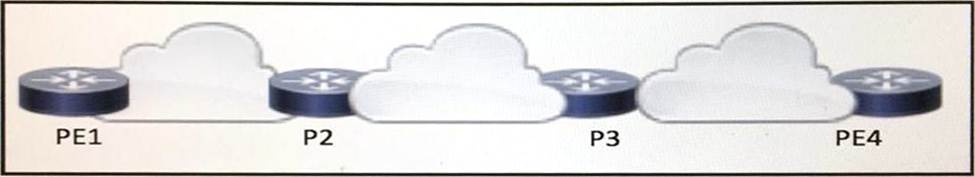

Refer to the exhibit:
P3 and PE4 are at the edge of the service provider core and serve as ABR routers Aggregation areas are on either side of the core.
Which statement about the architecture is true?
- A . If each area is running its own IGP. the ABR routers must redistribute the IGP routing table into BGP
- B . To support seamless MPLS. TDP must be used as the label protocol
- C . If each area is running its own IGP. BGP must provide an end-to-end MPLS LSP
- D . To support seamless MPLS, the BGP route reflector feature must be disabled
What do Ansible and Salt Stack have in common?
- A . They both use DSL configuration language
- B . They both use YAML configuration language
- C . They both have agents running on the client machine
- D . They both can be designed with more than one master server

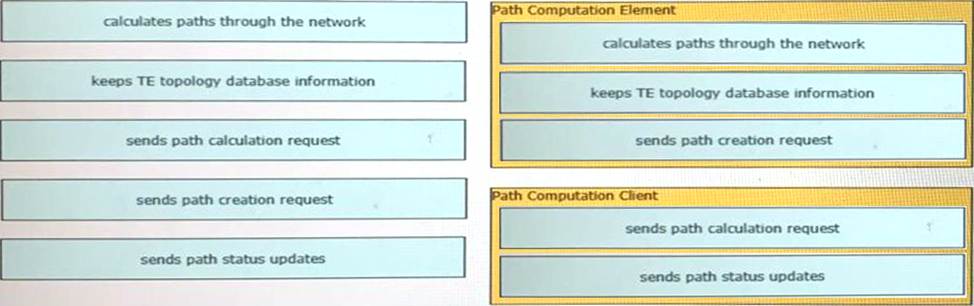

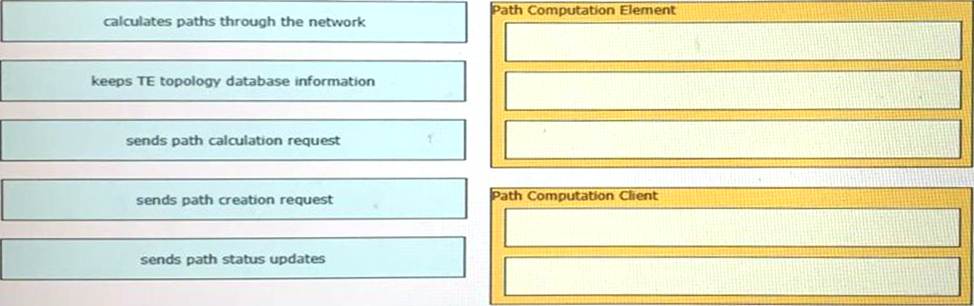

DRAG DROP
Drag and drop the functions from the left onto the correct Path Computation Element Protocol roles on the right
You are writing an RPL script to accept routes only from certain autonomous systems Consider this code.
If you apply this code to BGP filters, which effect does the code have on your router?
- A . denies routes from AS 7070
- B . allows routes from AS 7077
- C . denies routes from AS 7007
- D . allows routes from AS 770
While implementing TTL security, you issue the PE (config-router-af)#neighbor 2.2.2.2 ttl-security hops 2 command.
After you issue this command, which BGP packets does the PE accept?
- A . from 2.2.2.2, with a TTL of 253 Of more
- B . from 2.2.2.2, with a TTL of less than 2
- C . to 2.2.2.2, with a TTL of less than 253
- D . to 2.2.2.2, with a TTL of 2 or more
