Cisco 300-815 Practice Exams
Last updated on Oct 22,2026- Exam Code: 300-815
- Exam Name: Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)
- Certification Provider: Cisco
- Latest update: Oct 22,2026
A user reports that when they attempt to log out from the Cisco Extension Mobility service by pressing the Services button, they cannot log out.
What is the most likely cause of this issue?
- A . The Cisco Extension Mobility service has not been configured on the phone.
- B . There might be a significant delay between the button being pressed and the Cisco Extension Mobility service recognizing it. It would be best to check network latency.
- C . The user device profile has not been assigned to the user.
- D . The user device profile is not subscribed to the Cisco Extension Mobility service.
The Cisco Unified Communications Manager Dialed Number Analyzer allows analysis of calls from which two devices? (Choose two.)
- A . translation patterns
- B . device pools
- C . CTI ports
- D . CTI route points
- E . IP phones
CE
Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/dna/11_5_1/CUCM_BK_CBA47A6E_00_cucm-dna-guide-115/CUCM_BK_CBA47A6E_00_cucm-dna-guide-115_chapter_01.html#CUCM_TP_A5DA99E0_00
Refer to the exhibit.
Users report that outbound PSTN calls from phones registered to Cisco Unified Communications Manager are not completing. The local service provider in North America has a requirement to receive calls in 10-digit format. The Cisco Unified CM sends the calls to the Cisco Unified Border Element router in a globalized E.164 format. There is an outbound dial peer on Cisco Unified Border Element configured to send the calls to the provider. The dial peer has a voice translation profile applied in the correct direction but an incorrect voice translation rule applied, which is shown in the exhibit.
Which rule modified DNIS in the format that the provider is expecting?
- A . rule 1 /^/+([^1].*)//0111/
- B . rule 1/^+1([2-9]..[2-9]……$)//1/
- C . rule 1 /^([2-9]..[2-9]……$)//1/
- D . rule 1 /^+1([2-9]..[2-9]……$)///
Which configuration element of a hunt group allows for changing Calling Party Transformations settings?
- A . line group
- B . hunt pilot
- C . route group
- D . hunt list
B
Explanation:
Reference: https://community.cisco.com/t5/ip-telephony-and-phones/call-alerting-on-hunt-group-as-shared-line/td-p/2658015

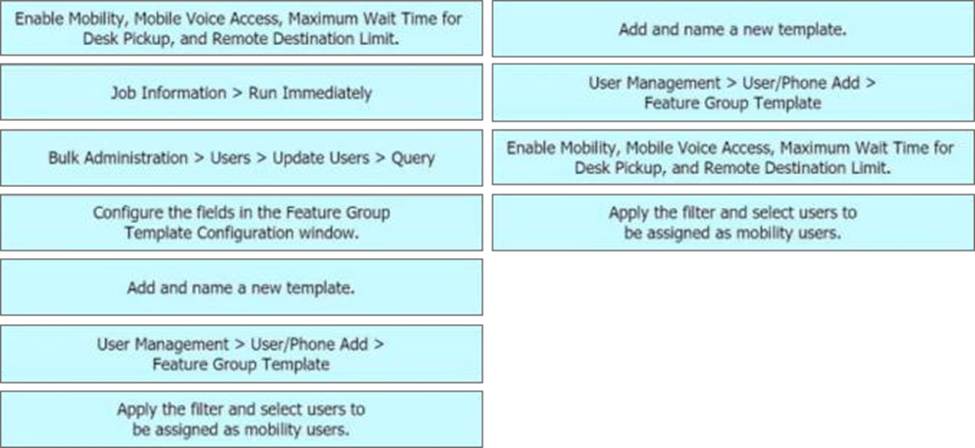

DRAG DROP
Drag and drop the steps from the left into the order to provision mobility users through LDAP on the right. Not all options are used.
Why would RTP traffic that is sent from the originating endpoint fail to be received on the far endpoint?
- A . The far end connection data (c=) in the SDP was overwritten by deep packet inspection in the call signaling path.
- B . Cisco Unified Communications Manager invoked media termination point resources.
- C . The RTP traffic is arriving beyond the jitter buffer on the receiving end.
- D . A firewall in the media path is blocking TCP ports 16384-32768.
When the services key is pressed Cisco Extension Mobility does not show up.
What is the cause of the issue?
- A . The URL configured for Cisco Extension Mobility is not correct.
- B . Cisco Extension Mobility Service is not running.
- C . The phone is not subscribed to Cisco Extension Mobility Service.
- D . Cisco Extension Mobility is not enabled in the Phone Configuration Window (Device > Phone)

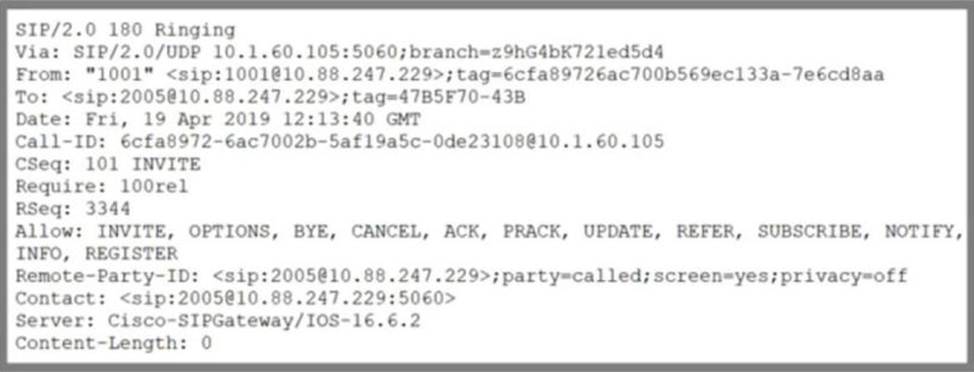

Refer to the exhibit.
An engineer is troubleshooting an issue with the caller not hearing a PSTN announcement before the SIP call has completed setup.
How must the engineer resolve this issue using the reliable provisional response of the SIP?
- A . voice service voip sip send 180 sdp
- B . voice service voip sip rehxx require 100rel
- C . sip-ua disable-early-media 180
- D . voice service voip sip no reMxx
Calls to a particular extension are not routing to voicemail. The user reaches the voicemail system from the handset by pressing the Messages button.
Which configuration parameter causes this problem?
- A . The voicemail pilot number for call forwarding is missing from the ephone-dn
- B . The voicemail pilot number is missing from the call handling on Cisco Unity Express
- C . The voicemail pilot number is missing from the telephony service configuration on Cisco UCME
- D . The voicemail pilot number for call forwarding is missing from the ephone
Which configuration must an administrator perform to display Translation Pattern operations in Cisco Unified Communications Manager SDL traces?
- A . Enable the Detailed Call Analysis option under Enterprise Parameters for Unified CM.
- B . Set up the Digit Analysis Complexity in Service Parameters for Cisco Unified CM to TranslationAndAlternatePatternAnalysis.
- C . Check the Translation Patterns Analysis check box in Micro Traces on the Cisco Unified CM Serviceability page.
- D . By default, the Translation Patterns operations are printed in SDL traces, so no additional configuration is necessary.
D
Explanation:
Reference: https://community.cisco.com/t5/collaboration-voice-and-video/taking-sip-call-trace-on-cisco-unified-cm-using-rtmt/ta-p/3161200
