Cisco 300-415 Practice Exams
Last updated on Oct 01,2026- Exam Code: 300-415
- Exam Name: Implementing Cisco SD-WAN Solutions (ENSDWI)
- Certification Provider: Cisco
- Latest update: Oct 01,2026
In a Cisco SD-WAN architecture, what is the role of the WAN Edge?
- A . It provides orchestration to assist in automatic provisioning of WAN Edge routers and overlay
- B . It is the management plane responsible for centralized configuration and monitoring
- C . It is the control plane that builds and maintains network topology
- D . It is the data plane that is responsible for forwarding traffic
D
Explanation:
WAN Edge routers are configured manually to use UDP port offset to use nondefault offset values when IPsec tunnels are created.
What is the offse range?
- A . 1-19
- B . 0-18
- C . 0-19
- D . 1-18

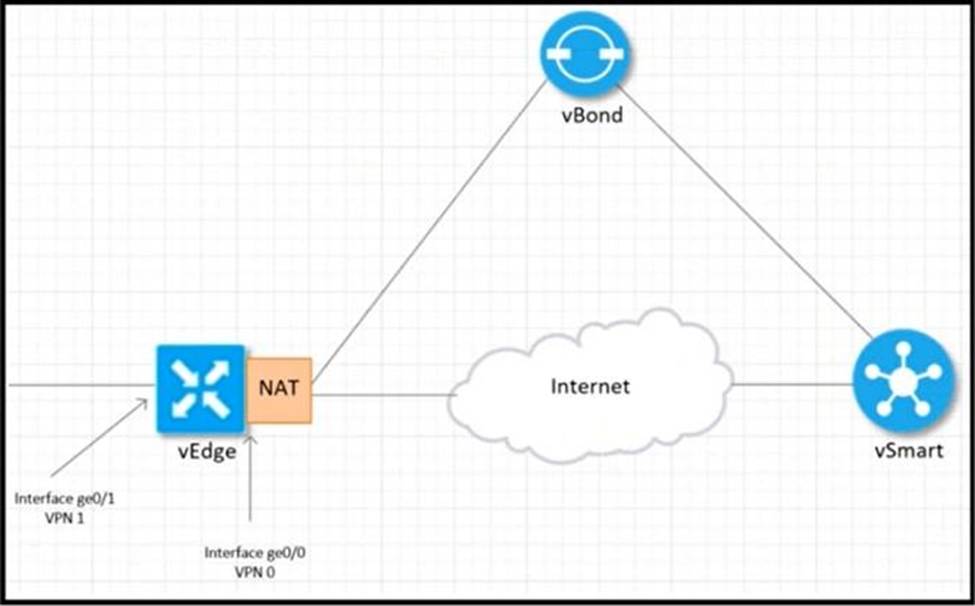

Refer to the exhibit.

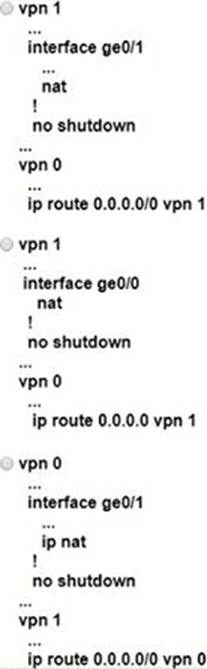

Which configuration sets up direct Internet access for VPN 1?
- A . Option A
- B . Option B
- C . Option C
Refer to the exhibit.
Which configuration sets up direct Internet access for VPN 1?
- A . Option A
- B . Option B
- C . Option C
When VPNs are grouped to create destination zone in Zone-Based Firewall, how many zones can a single VPN be part of?
- A . two
- B . four
- C . one
- D . three
C
Explanation:
Reference: https://sdwandocs.cisco.com/Product_Documentation/Software_Features/Release_18.4/Security/Enterprise_Firewall_with_Application_Awareness
What problem happens on a device with two serial numbers, a unique device identifier (UDI), and secure unique device identifier (SUDI) when an engineer provisions ISR 4000 by PnP using only a UDI?
- A . It encounters spanning tree issues
- B . It faces interface buffer overflow patterns
- C . It encounters redirection problems.
- D . It encounters memory overload problems
Which device should be configured with the service chain IP address to route intersite traffic through a firewall?
- A . vSmart
- B . firewall
- C . spoke WAN Edge
- D . hub WAREdge

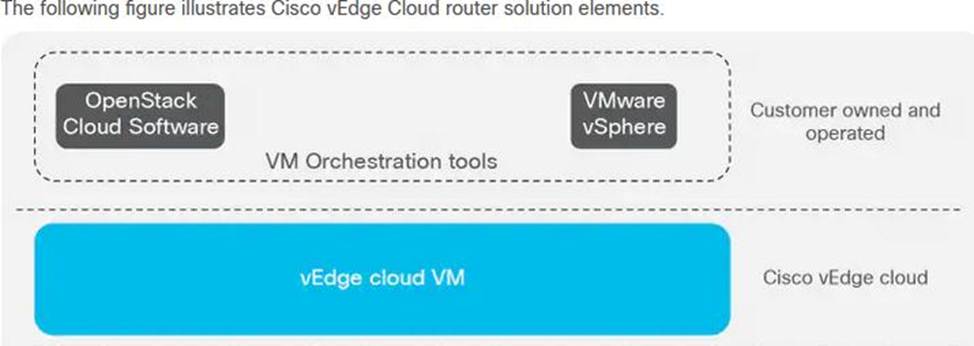

Which two products that perform lifecycle management for virtual instances are supported by WAN Edge cloud routers? (Choose two.)
- A . OpenStack
- B . AWS
- C . VMware vCenter
- D . Azure
- E . IBM Cloud
A C
Explanation:
https://www.cisco.com/c/en/us/solutions/collateral/enterprise-networks/sd-wan/nb-07-cloud-router-data-sheet-cte-en.html

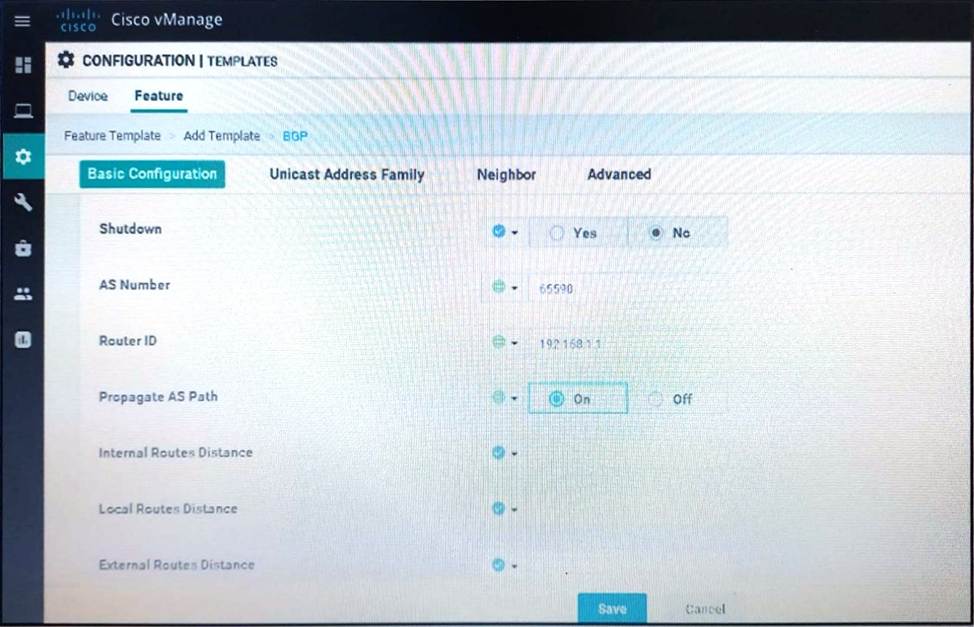

Refer to the exhibit.
Which configuration value is used to change the administrative distance of iBGP routes to 20?
- A . Configure internal Routes Distance to 20
- B . Configure Propagate AS Path to off
- C . Configure Local Distance to 20
- D . Configure External routes distance 20
An enterprise has these three WAN connections:
– public Internet
– business internet
– MPLS
An engineer must configure two available links to route traffic via both links.

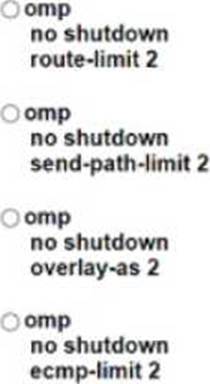

Which configuration achieves this objective?
- A . Option
- B . Option
- C . Option
- D . Option
